Product Description

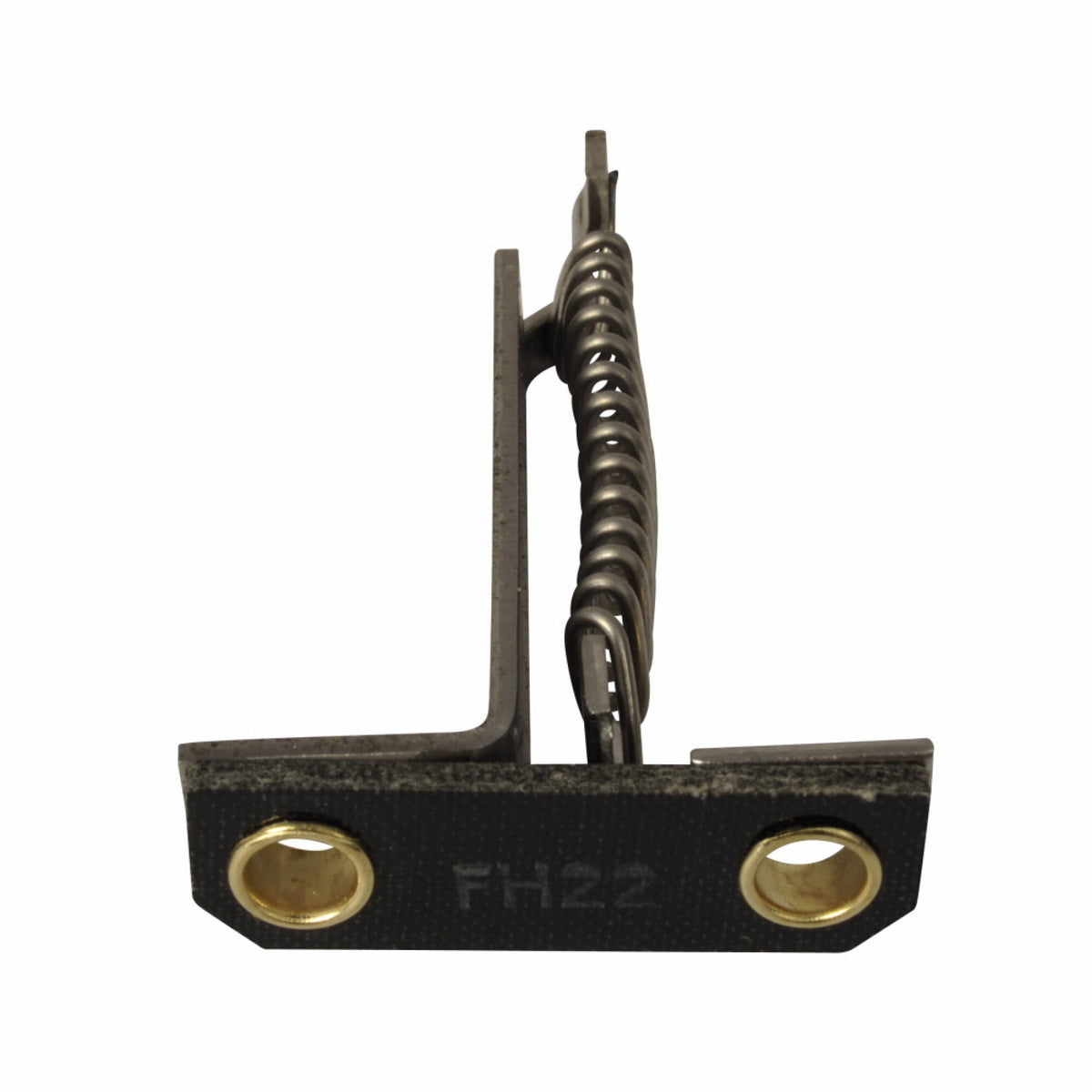

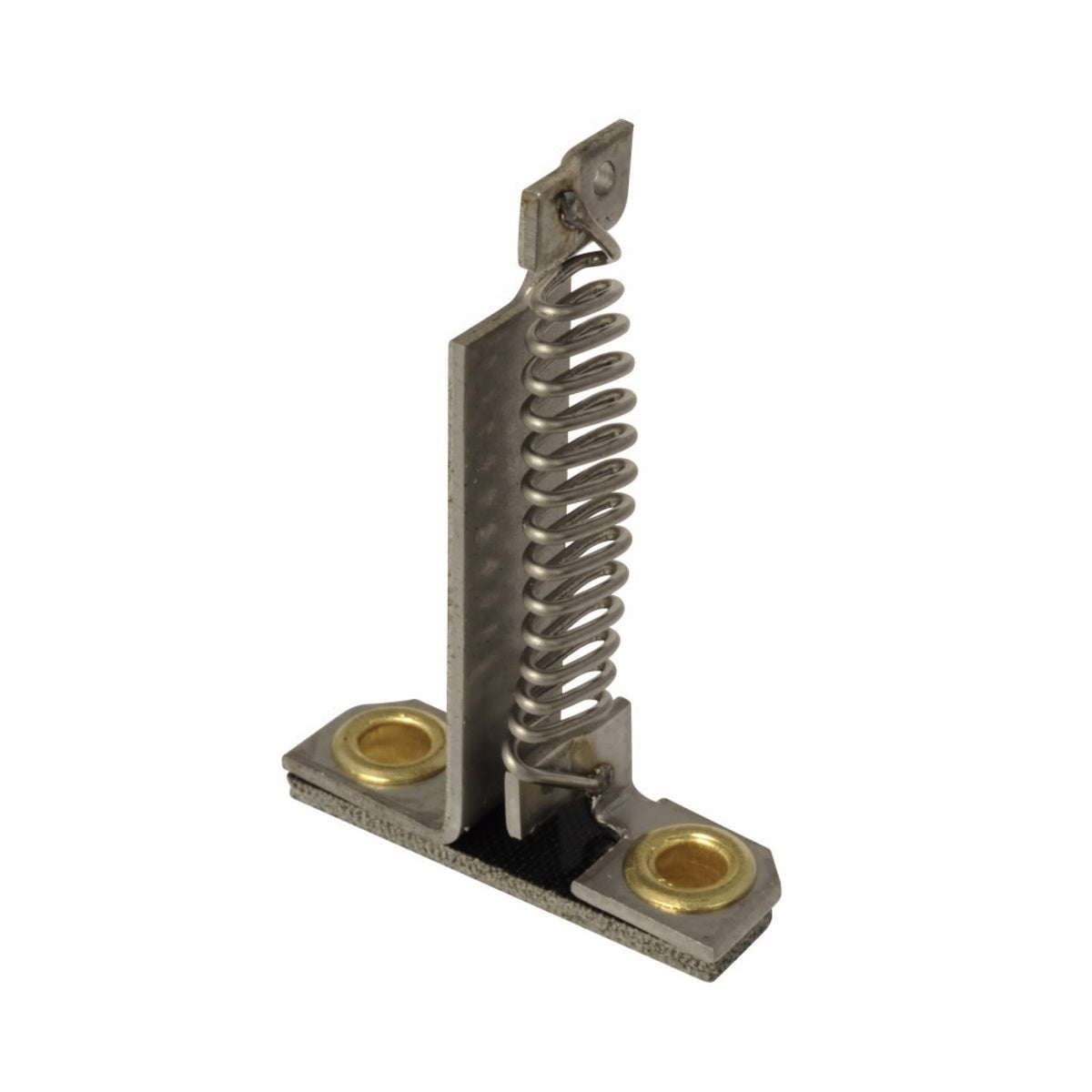

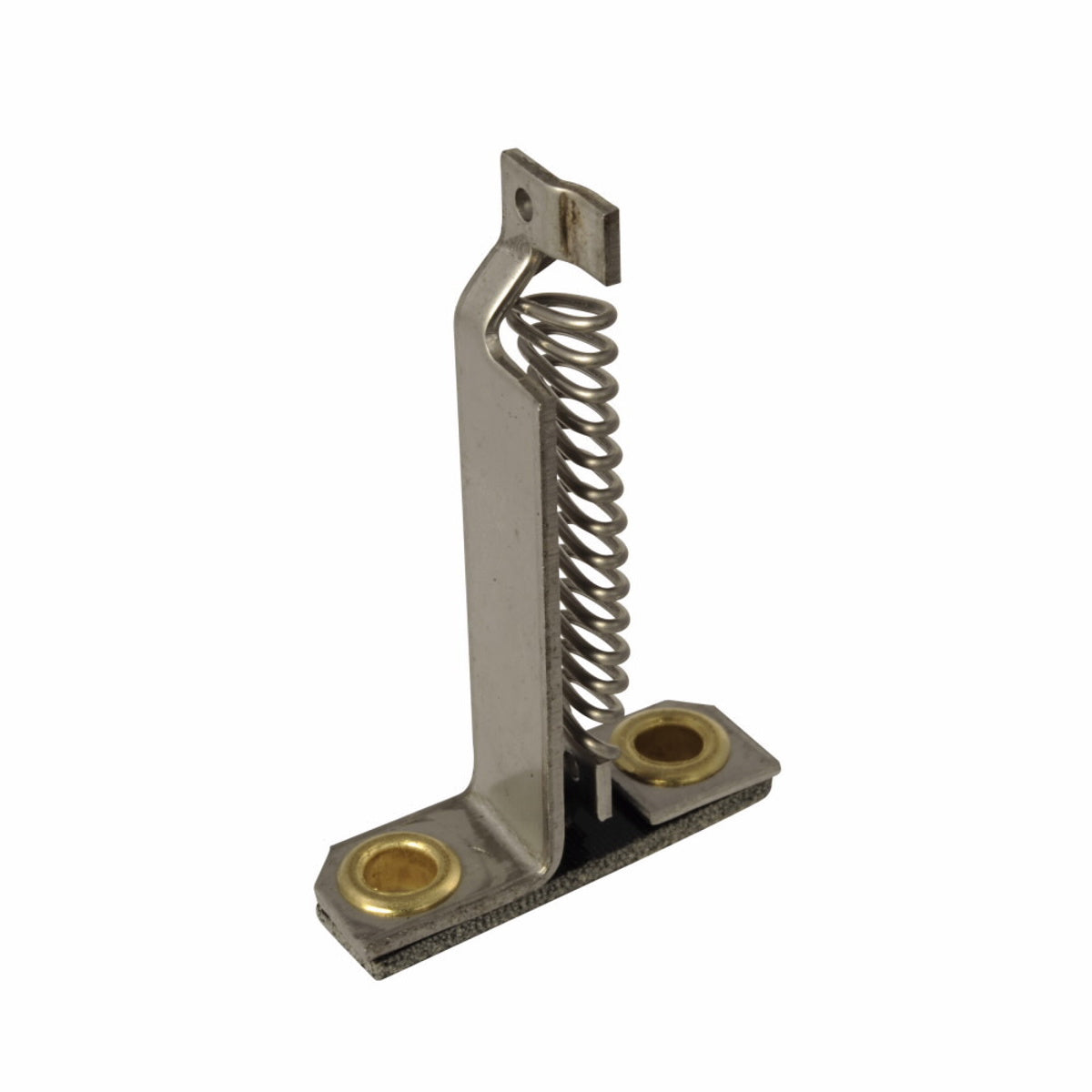

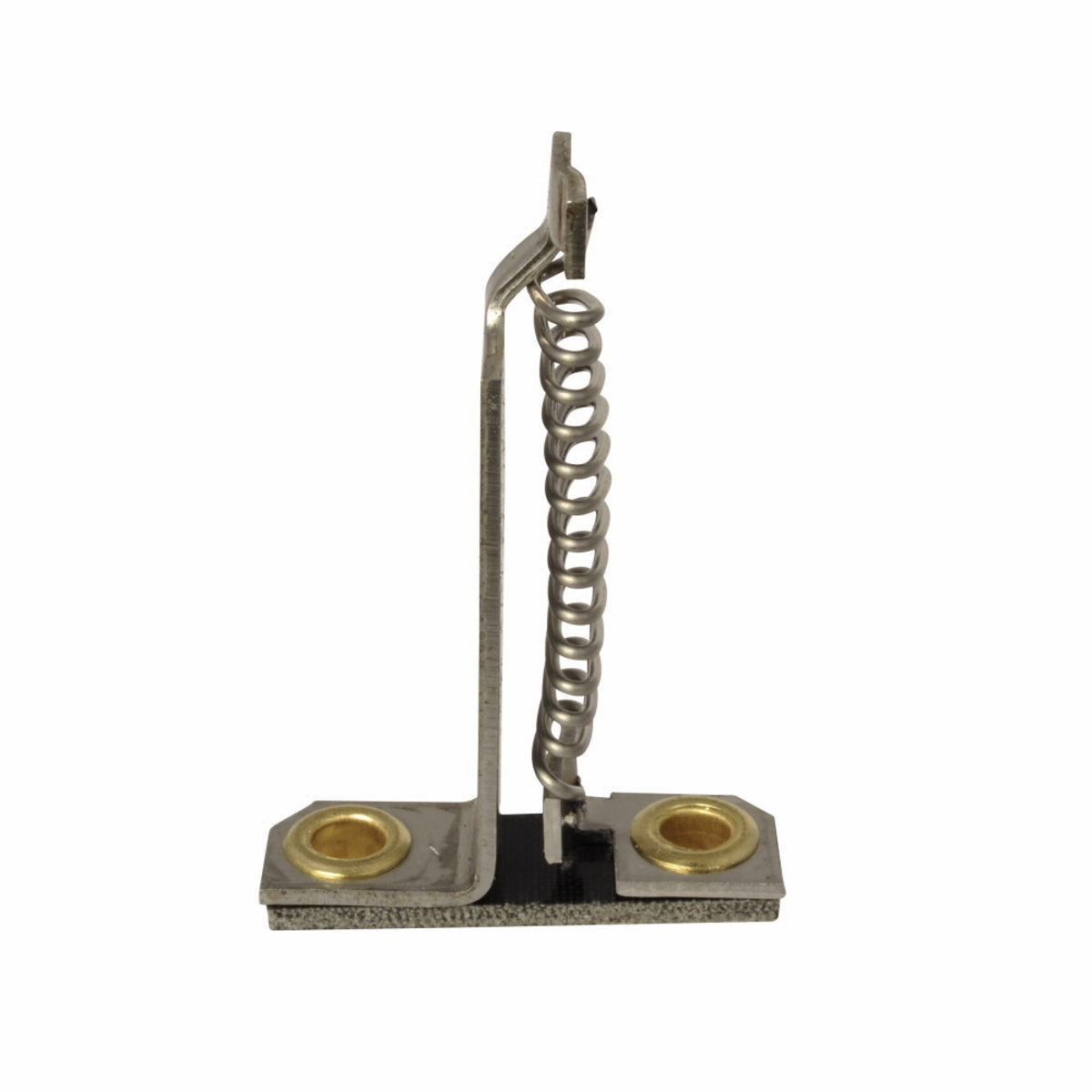

The Eaton FH22 A200/B100 heater is used with starter sizes 0, 1, and 2. This A200/B100 heater is NEMA rated and features thermal and fast trip functionality. It is designed for maximum motor protection and compliance with Article 430-32 of the National Electrical Code. Select heater coils based on motor nameplate full load current.
- Used with Starter Sizes 0, 1, and 2
- NEMA
- Thermal and Fast Trip
Product Highlights
Eaton FH22 A200/B100 heater provides thermal and fast trip functionality and is used with starter sizes 0, 1, and 2.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: FH22
-
Country of Origin: Dominican Republic
Technical Specifications
-
Type: Thermal and Fast Trip
-
Brand: Eaton
-
Standard: CSA,UL
-
Trip Type: Fast Trip,Thermal
-
Used With: Type A and B Overload Relays, Sizes 0, 1 and 2 Starters
-
Catalog Number: FH22
-
Manufacturer: Eaton
-
Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
-
Special Features: Used with Starter Sizes 0,1, and 2
-
UPC: 786678629537
-
GTIN: 00786678629537
-
Item Type: Heater
-
MPN: FH22
-
Product Width: 1.3 in
-
Certifications: UL Listed CSA Certified
-
Full Load Current: 1.63 to 1.78 A
1.88 to 2.06 A
-
Trip Class: 20
-
NEMA Size: 0; 1; 2
-
Overload Protection Type: Thermal
-
Compatible with Series: A200; B100
-
Compatible with Grainger Part Number: 11Z488; 11Z489; 11Z49; 11Z491; 11Z492; 11Z493; 11Z494; 11Z495; 11Z496;
11Z497
-
Compatible with Manufacturer Model Number: B100J0B; B100J0C; B100J1B; B100J1C; B100M0B; B100M0C; B100M1B; B100M1C; B100S0B; B100S0C; B100S1B; B100S1C; B100U0B; B100U0C; B100U1B; B100U1C; B100W0B; B100W0C; B100W1B;
B100W1C
-
UNSPSC: 39122330
-
Used On: Type A and B Overload Relay
-
Approval: UL, CSA
-
Enclosure Type: NEMA 0/1/2
-
Motor FLA: 1.63 to 2.06 Amp
-
Accessory Type: Overload Heater
