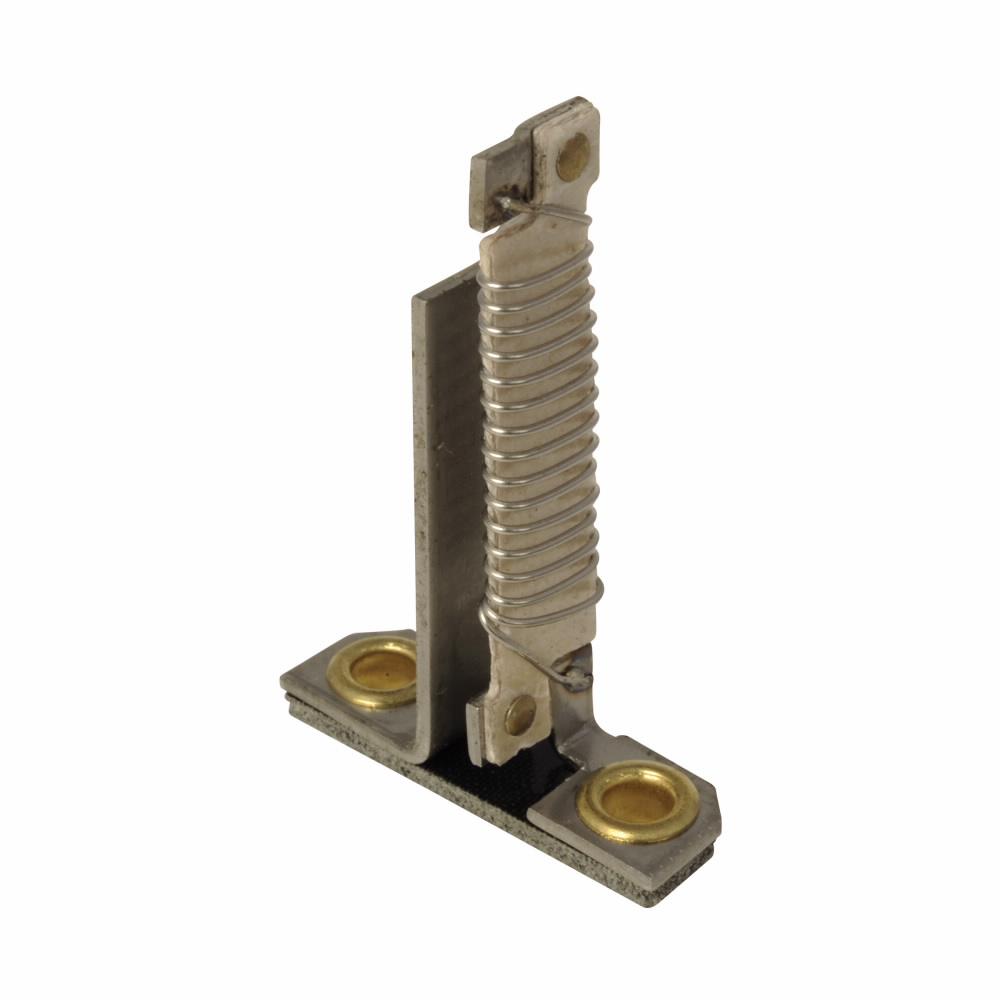

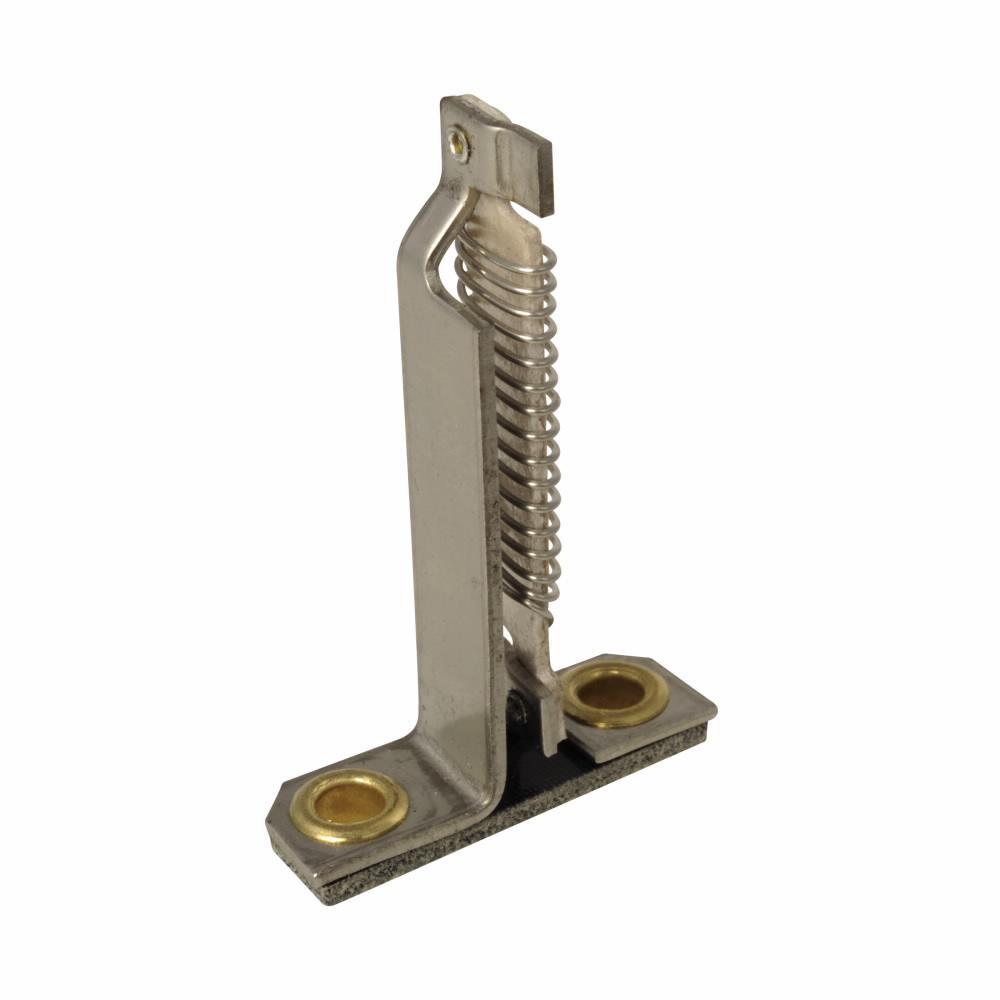

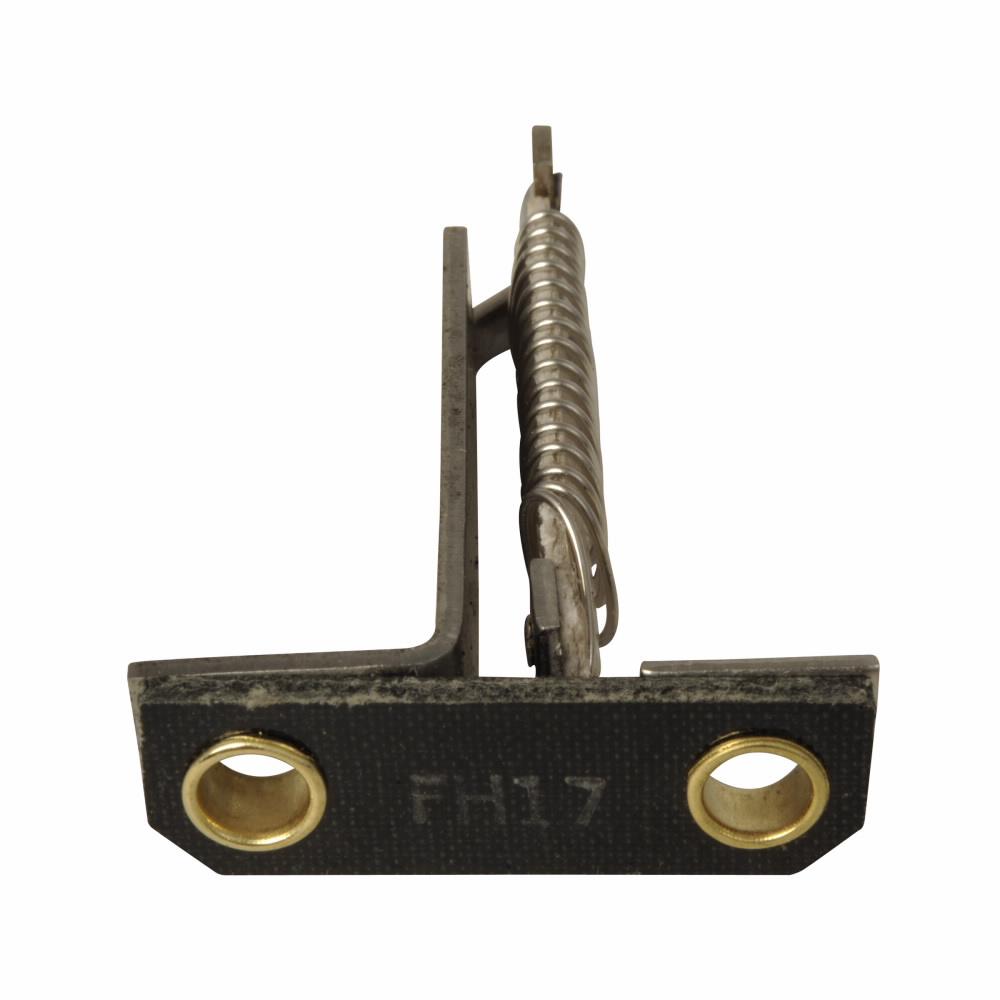

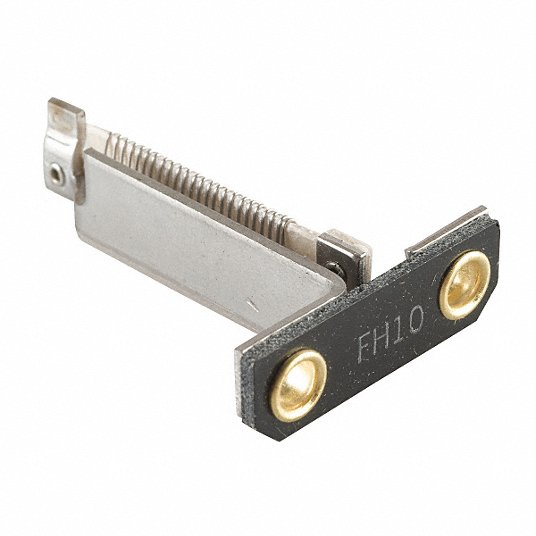

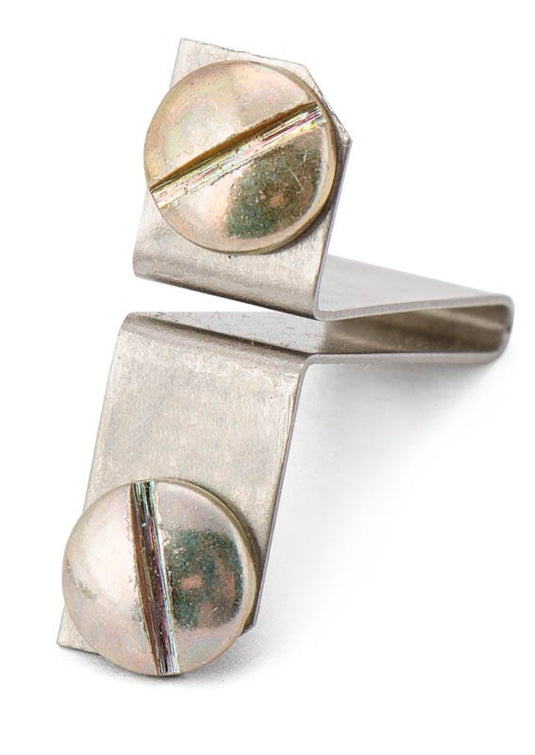

Product Description
The EATON FH17 is an A200/B100 heater used with starter sizes 0, 1, and 2. This NEMA-designed heater features thermal and fast trip functionality. It is suitable for use with Type A and B overload relays. Select heater coils based on the full load current shown on the motor nameplate.
- Used with Starter Sizes 0,1, and 2
- NEMA design
- Thermal and fast trip
Product Highlights
The EATON FH17 heater is designed for overload protection in motor starters, ensuring reliable performance and preventing overheating.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: FH17
-
Country of Origin: Dominican Republic
Technical Specifications
-
Catalog Number: FH17
-
Product Length/Depth: 2.1 in
-
Product Height: 0.8 in
-
Product Width: 1.3 in
-
Product Weight: 0.03 lb
-
Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
-
Certifications: CSA Certified, UL Listed
-
Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
-
Global Catalog: FH17
-
Product Type: Heater
-
Special features: Used with Starter Sizes 0,1, and 2
-
Type: A200/B100 Heater
-
Used with: Used with Starter Sizes 0,1, and 2
-
Design: NEMA
-
Full load current range: Ambient 1.01-1.11, 1.17-1.28 A, Non-Comp 0.94-1.03, 1.14-1.25 A
-
Overload relay: Type A and B
-
Trip type: Thermal and fast trip
-
UPC: 786678629384
-
Series: A200/B100
-
Amperage: 1.14-1.25
-
Approval: UL, CSA
-
Protection: Thermal
-
For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
-
Standards: NEMA
-
Nema Size: 0, 1, 2
-
Mpn: FH17
-
Compatible with Series: A200; B100
-
Full Load Current: 1.01 to 1.11 A
1.17 to 1.28 A
-
Trip Class: 20
-
Overload Protection Type: Thermal
-
Compatible with Grainger Part Number: 11Z488; 11Z489; 11Z49; 11Z491; 11Z492; 11Z493; 11Z494; 11Z495; 11Z496;
11Z497
-
Compatible with Manufacturer Model Number: B100J0B; B100J0C; B100J1B; B100J1C; B100M0B; B100M0C; B100M1B; B100M1C; B100S0B; B100S0C; B100S1B; B100S1C; B100U0B; B100U0C; B100U1B; B100U1C; B100W0B; B100W0C; B100W1B;
B100W1C
-
UNSPSC: 39121521
-
Condition: New
– Open box
-
Amps: 1.280
-
Amps Range: 0.940 - 1.280
-
Full Load Current Rating: 1.01 to 1.11/1.17 to 1.28 A
-
Minimum Order Qty: 1
-
Order Interval: 1
-
Enclosure Type: NEMA 0/1/2
