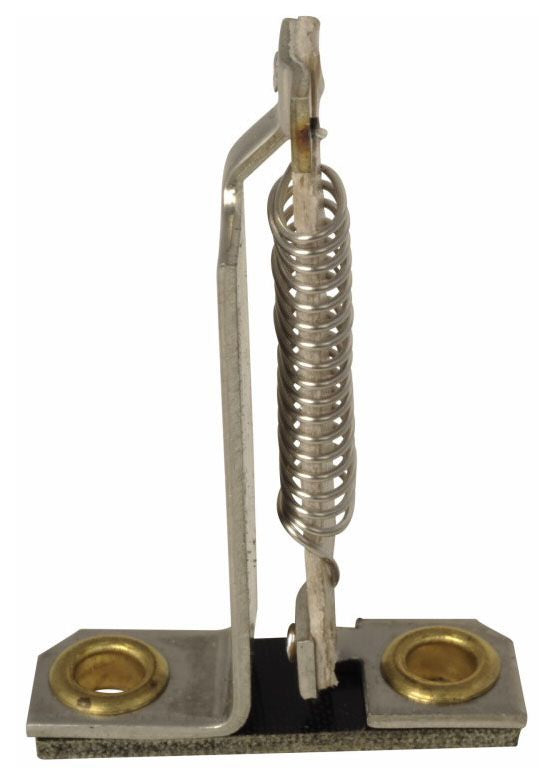

Eaton FH16 Type a B Overload Heater Element

Product Description

The EATON FH16 is a thermal overload heater element designed for use with Type A and Type B overload relays in motor control applications. Heater elements like the FH16 work by responding to excess current draw, generating heat that trips the overload relay and protects the motor from damage caused by sustained overload conditions. Electricians and industrial maintenance technicians install these elements as part of motor starter assemblies in commercial and light industrial settings. The FH16 measures 1.25 inches by 6.25 inches by 3.5 inches and weighs 0.51 pounds, making it a compact, drop-in component in standard overload relay housings.

The FH16 heater element is used in motor control centers, panelboards, and standalone motor starter enclosures where overload protection is required. It is suited for both new installations and replacement service on existing Type A and Type B overload relay assemblies. Typical applications include HVAC compressor and fan motor circuits, pump motor starters, and general industrial motor control equipment in commercial or light industrial facilities.

Key Features

• Compatible with Type A and Type B overload relay configurations
• Thermal heater element design provides reliable overcurrent trip response
• Compact form factor at 1.25 x 6.25 x 3.5 inches for easy installation in standard enclosures
• Lightweight at 0.51 pounds for straightforward field handling
• OEM-style replacement for maintaining motor protection in existing assemblies

Compatibility

Designed as an OEM-style replacement heater element for use with EATON Type A and Type B overload relays in motor starter and motor control applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. Disconnect and lock out all power to the motor control equipment before removing or installing heater elements. Verify that the replacement heater element matches the motor full-load amperage rating for the circuit before energizing. Do not bypass or omit heater elements as this eliminates overload protection for the motor.

Technical Specifications

• Heater Element Type: Type A and Type B
• Length: 1.25 inches
• Width: 6.25 inches
• Height: 3.5 inches
• Weight: 0.51 pounds
• UPC: 78667862935

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH16
