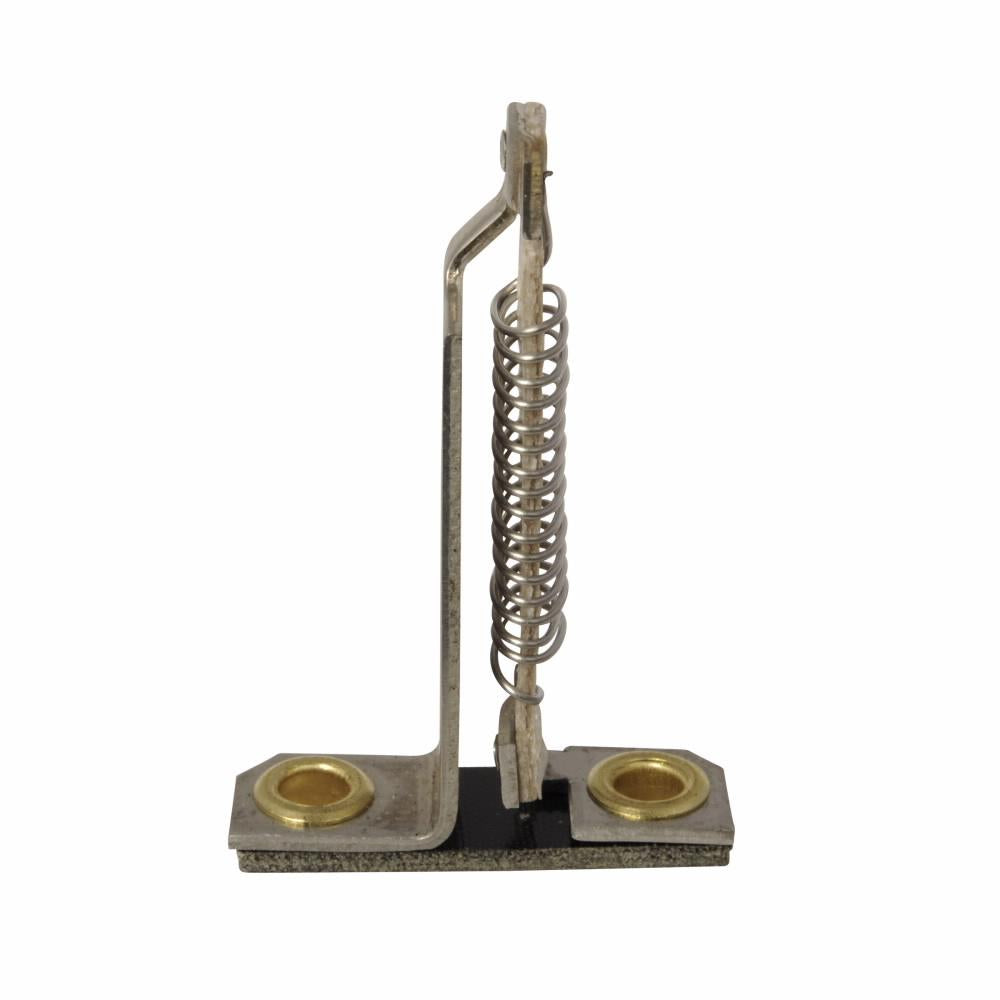

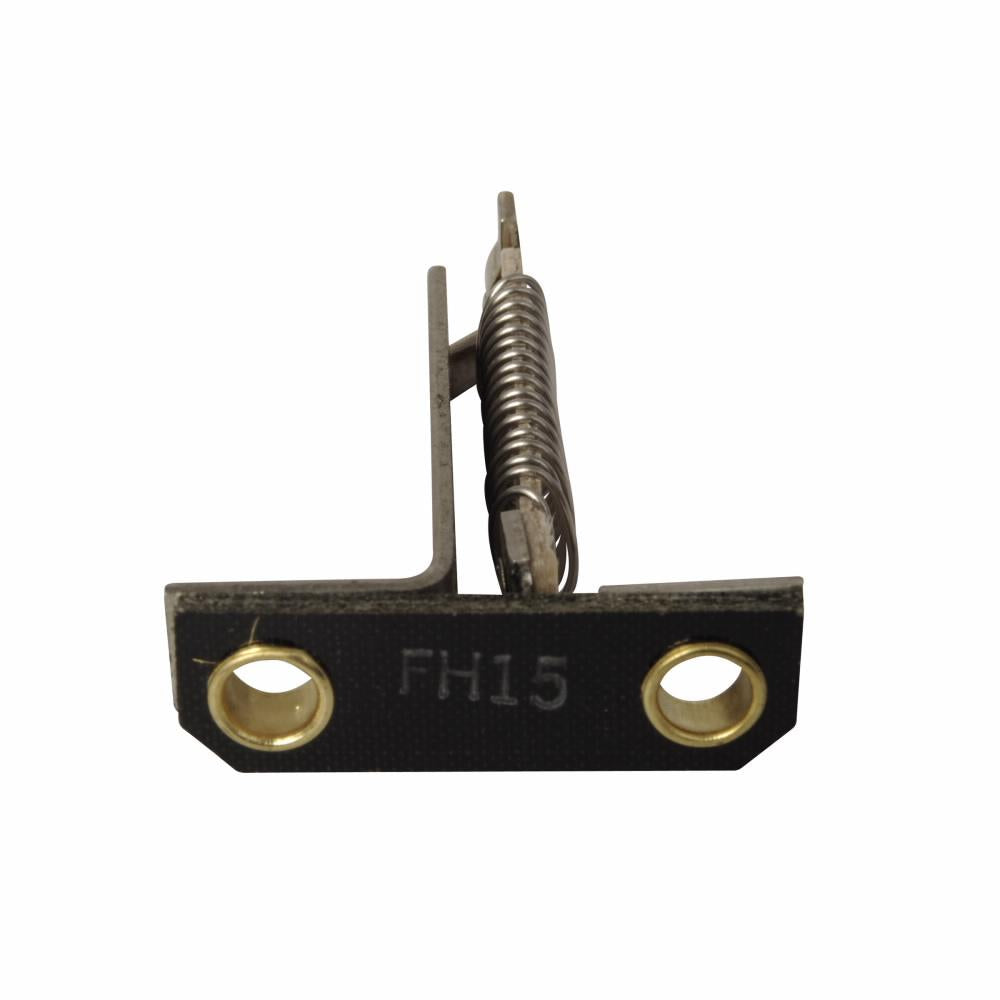

Eaton FH15 Type B100 Overload Relay Heater

Product Description

The EATON FH15 is a Type B100 overload relay heater. It is identified by a catalog number stamped on one terminal and is applied based on the full load motor current. This heater is suitable for NEMA 0/1/2 enclosures and features fast/thermal trip functionality.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Type A and b overload relay
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15

Product Highlights

EATON FH15 overload relay heater protects motors with a 40 deg C rise and a service factor of 1.15. Compatible with NEMA 0/1/2 enclosures.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH15

Technical Specifications

• Enclosure Type: NEMA 0/1/2
• Full Load Current: 0.84 to 0.91/0.97 to 1.06 A Ambient, 0.78 to 0.85/0.95 to 1.03 A Non-Comp
• Trip Type: Fast/Thermal
• Type: Type B100
• Full Load Amps: 0.96 to 1.04
• Sensing Method: Bimetallic
• Full Load Current Rating: 0.84 to 0.91/0.97 to 1.06 A
• Series: A200/B100
• Standard & Approvals: UL Listed, CSA Certified
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Spare part
• Sub-range name: FH
• Functions: Replacement heater element
• Technical compatibility with: A200 series Size 0 overl. rlys A200 series Size 1 overl. rlys A200 series Size 2 overl. rlys
