Eaton FH13 Overload Heater Elements

Product Description

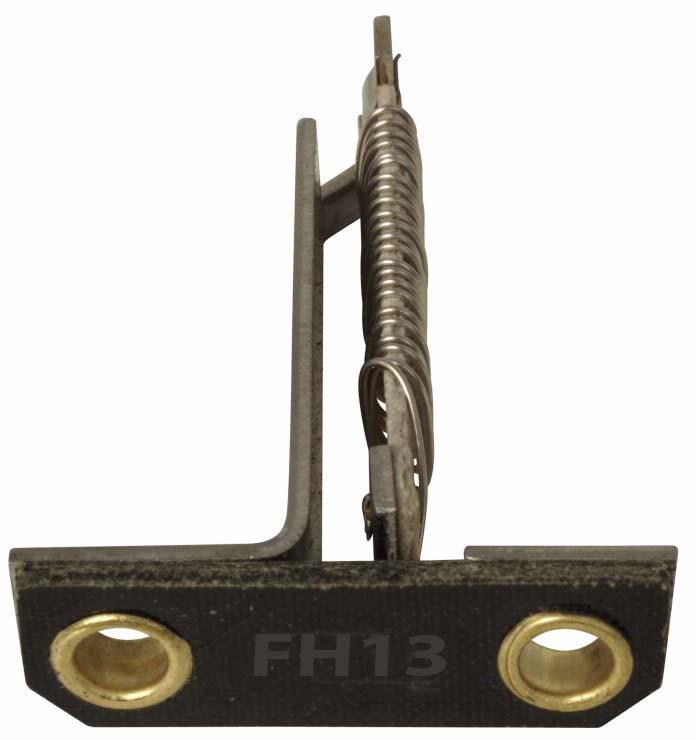

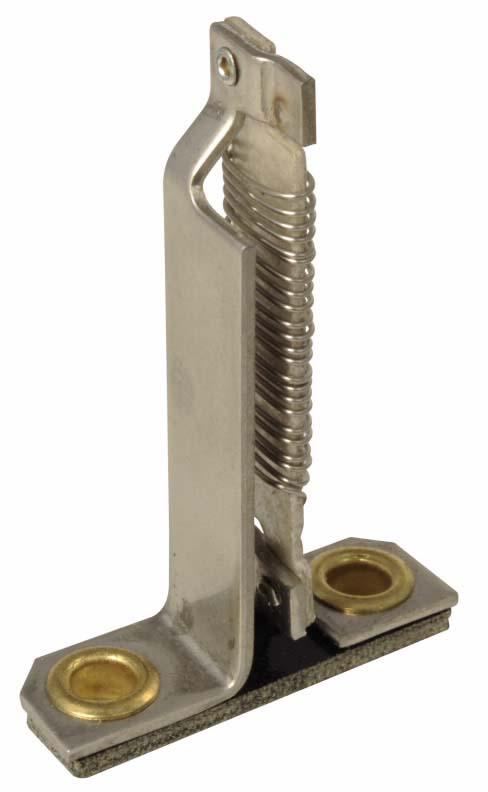

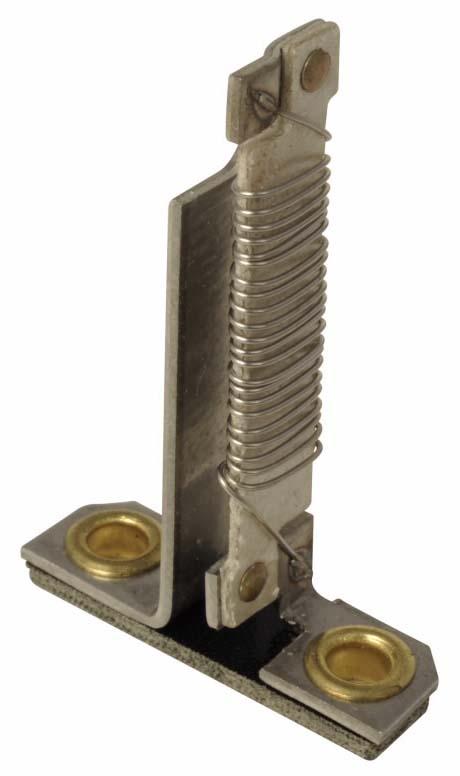

The EATON FH13 is an overload heater element for starter sizes 0, 1, and 2 thermal overload relays, magnetic motor starters and motor controls. It has a current rating of 0.78-0.85 Amps and protects 40 Deg C rise motors. It is compatible with Type A and B overload relays.

• UL Listed
• CSA Certified
• Used with starter sizes 0, 1 and 2

Product Highlights

The EATON FH13 overload heater element protects motors and controllers at the same ambient temperature.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH13
• Country of Origin: United States

Technical Specifications

• Manufacturer: Eaton Cutler-Hammer
• Type: FH
• Family: A200 Series
• Full Load Amps Min: 0.78
• Full Load Amps Max: 0.85
• Series: A200/B100
• Amperage: 0.78-0.85
• Approval: UL, CSA
• Protection: Thermal
• Length (in): 2.1
• Width (in): 1.3
• Height (in): 0.8
• For Use With: Starter Sizes 0,1 and 2, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Mpn: FH13
• Upc: 786678629261
• Gtin: 786678629261
• Full Load Current Rating: 0.69 to 0.75/0.8 to 0.87 A
• Trip Type: Thermal/Fast Trip
• Standard & Approvals: UL Listed, CSA Certified
• Brand Name: Eaton
• Series FH: FH
• Motor FLA: 0.69 to 0.87 Ampere
• Used On: Type A and B Overload Relay
• NEMA Size: 0, 1, 2 (Enclosed/Open)
• Amps: 0.870
• Amps Range: 0.640 - 0.870
• Brand: EATON CORPORATION
