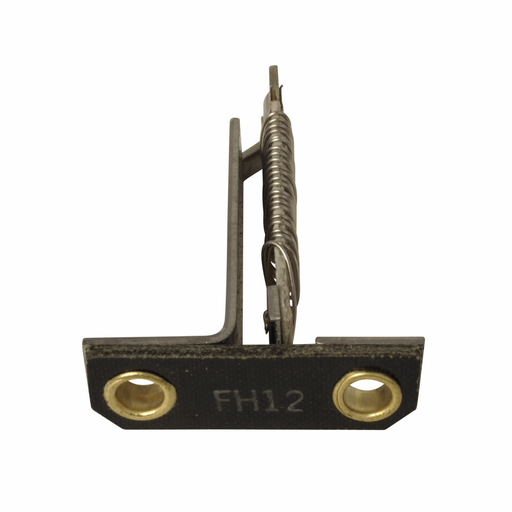

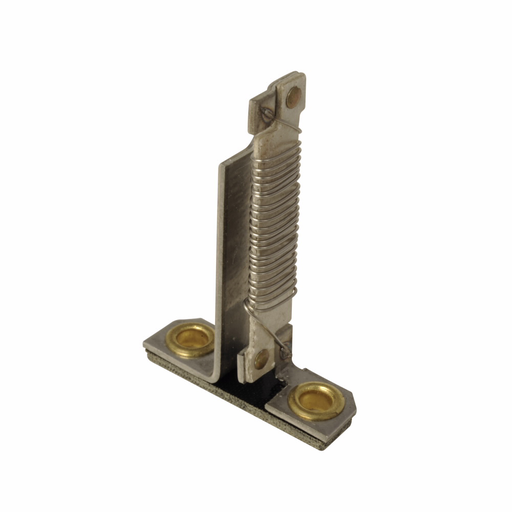

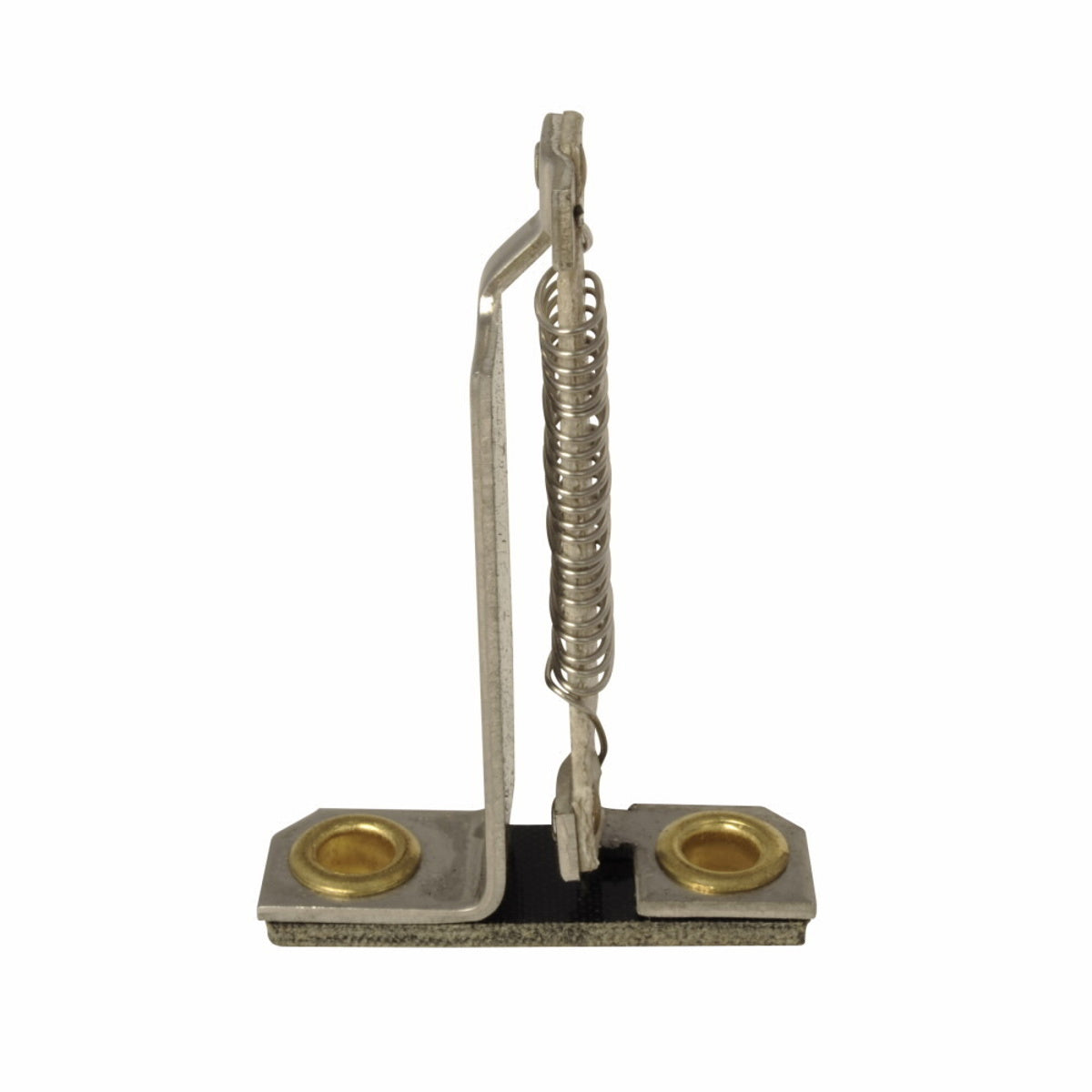

Eaton FH12 A200/B100 Heater

Product Description

The Eaton FH12 A200/B100 heater is used with starter sizes 0, 1, and 2. This heater is compatible with Type A and B, and features thermal and fast trip functionality. It is designed for maximum motor protection and compliance with Article 430-32 of the National Electrical Code.

• Used with Starter Sizes 0, 1, and 2
• Type A and B
• Thermal and Fast Trip

Product Highlights

Eaton FH12 A200/B100 heater for motor protection and compliance. Compatible with starter sizes 0, 1, and 2.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH12
• Country of Origin: Dominican Republic

Technical Specifications

• Type: A200,B100,Heater
• Brand: Eaton
• Height: 0.8 Inch
• Length: 2.1 Inch
• Standard: CSA,UL
• Trip Type: Thermal and fast trip
• Catalog Number: FH12
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
• Special Features: Used with Starter Sizes 0,1, and 2
• UPC: 786678629230
• GTIN: 00786678629230
• Item Type: Heater
• Design: NEMA
• Used with: Used with Starter Sizes 0,1, and 2
• For Use With: Eaton B100 Series Manual Motor Starter (B100M0C, B100M1C, B100S0C, B100S1C, B100W0C, B100W1C, B100U0C, B100U1C, B100J0C, B100J1C, B100M0CA, B100M1CA, B100S0CA, B100S1CA)
• Product Type: Thermal Unit
• Product Width: 1.3 in
• Certifications: UL Listed, CSA Certified
• Full Load Amps: 0.71 to 0.78
• Overload relay: Type A and B
• Product Height: .8 in
• Sensing Method: Bimetallic
• Product Length/Depth: 2.1 in
• Full load current range: Ambient 0.63-0.68, 0.72-0.79 A, Non-Comp 0.58-0.63, 0.71-0.77 A
• FL Amp @ 3-Ph/ Man. Size 0/ Standard Enclosure: 0.71 to 0.78
• FL Amp @ 3-Ph/ Man. Size 1/ Standard Enclosure: 0.71 to 0.78
• FL Amp @ 3-Ph/ Man. Size 0/ Open & Large Enclosure: 0.71 to 0.78
• FL Amp @ 3-Ph/ Man. Size 1/ Open & Large Enclosure: 0.71 to 0.78
• Series: A200/B100
• Enclosure Type: NEMA 0/1/2
• Full Load Current Rating: 0.63 to 0.68/0.72 to 0.79 A
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Spare part
• Sub-range name: FH
• Functions: Replacement heater element
• Technical compatibility with: A200 series Size 0 overl. rlys
