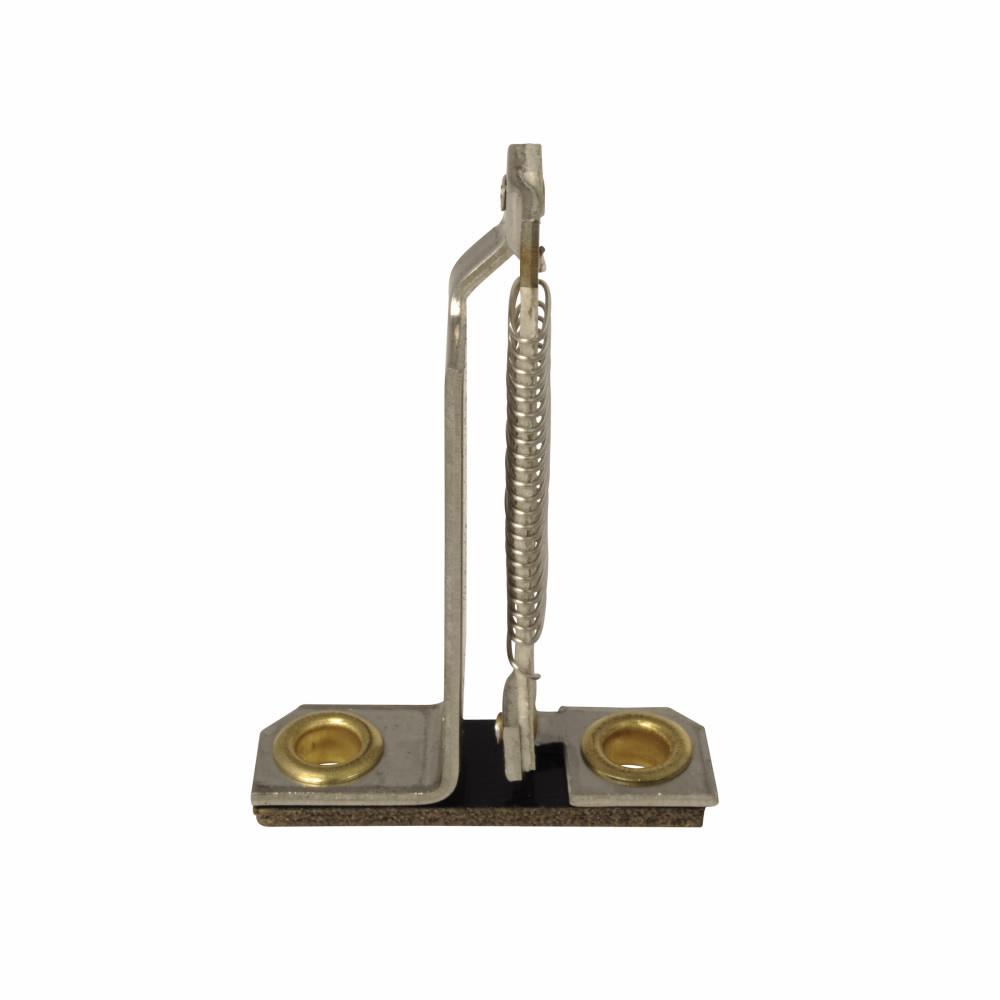

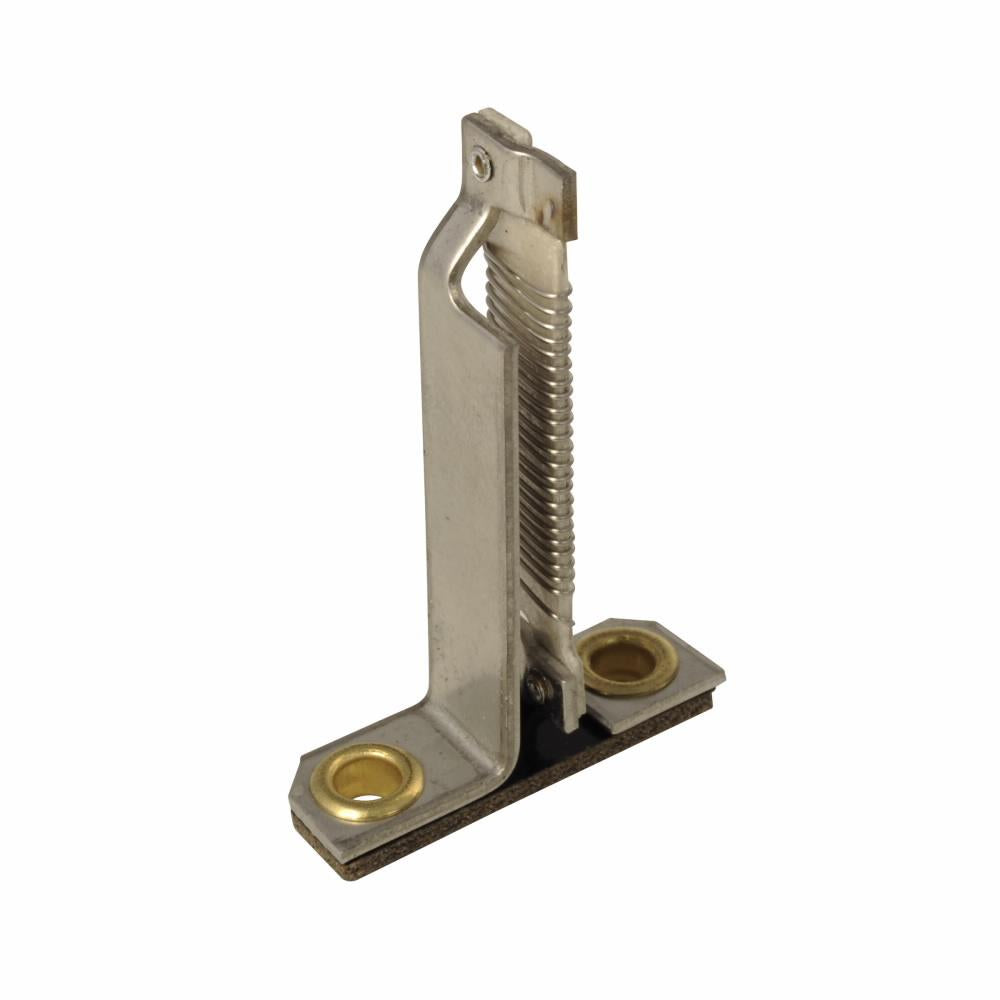

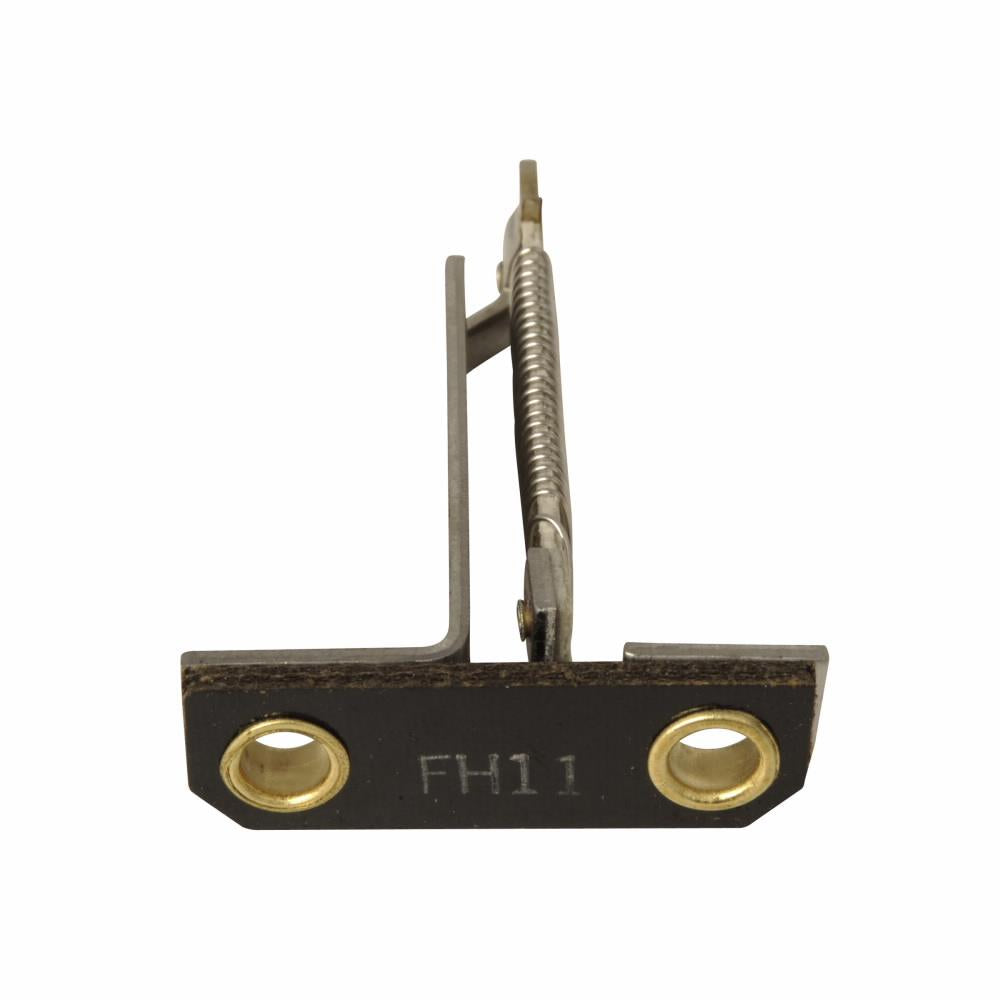

Eaton FH11 A200/B100 Heater

Product Description

The Eaton FH11 A200/B100 heater is designed for use with starter sizes 0, 1, and 2. This heater is compatible with NEMA design starters and features both thermal and fast trip functionality. It supports ambient full load currents of 0.56 to 0.62/0.65 to 0.71 A and non-compensating full load currents of 0.52 to 0.57/0.64 to 0.7 A.

• Used with Starter Sizes 0, 1, and 2
• Features thermal and fast trip
• NEMA design

Product Highlights

Eaton FH11 A200/B100 heater for starter sizes 0, 1, and 2 with thermal and fast trip.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH11

Technical Specifications

• Type: Heater
• Brand: Eaton
• Standard: CSA,UL
• Trip Type: Fast Trip,Thermal
• Enclosure Type: NEMA 0/1/2
• Full Load Current: 0.56 to 0.62/0.65 to 0.71 A Ambient, 0.52 to 0.57/0.64 to 0.7 A Non-Comp
• Certifications: UL Listed CSA Certified
• Special Features: Used with Starter Sizes 0,1, and 2
• Design: NEMA
• Overload Relay: Type A and B
• Full Load Current Range: Ambient .56-.62, .65-.71A, Non-Comp .52-.57, .64-.70A
• Used With: Used with Starter Sizes 0,1, and 2
