Eaton FH10 Type B100 Overload Relay Heater

Product Description

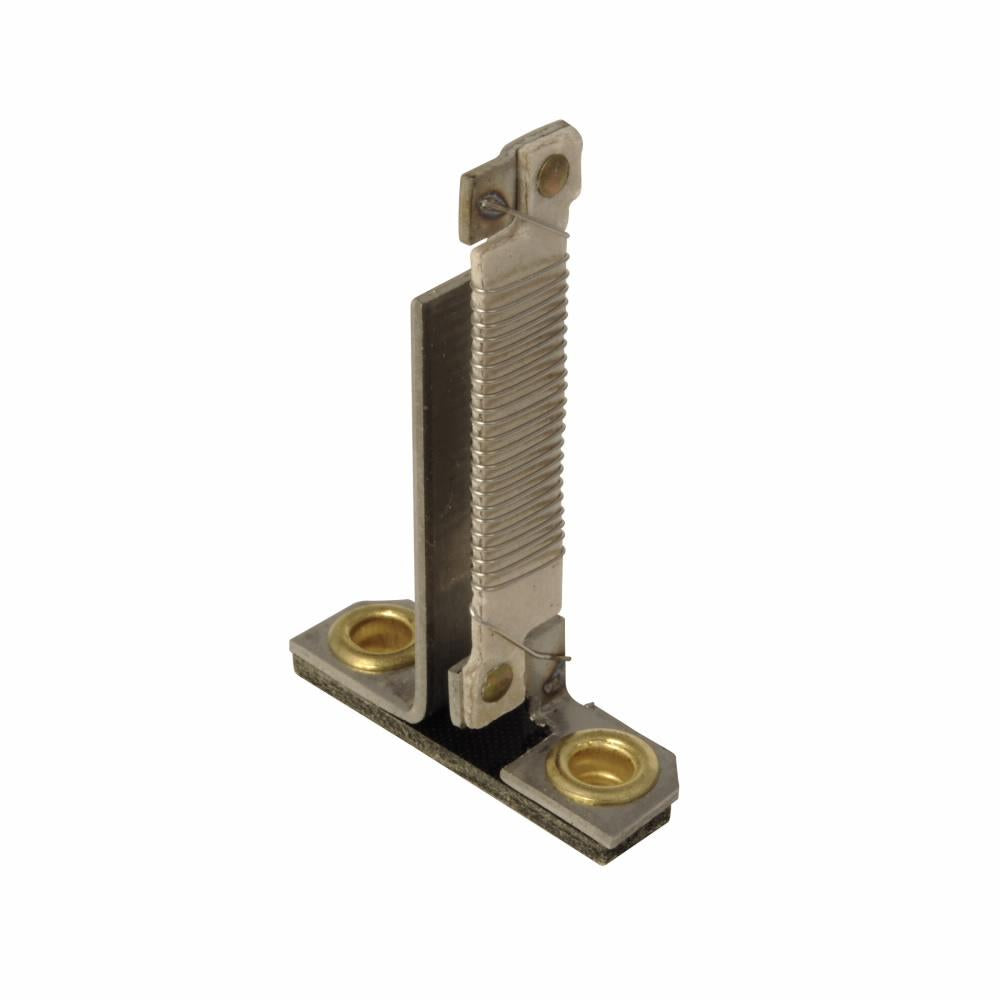

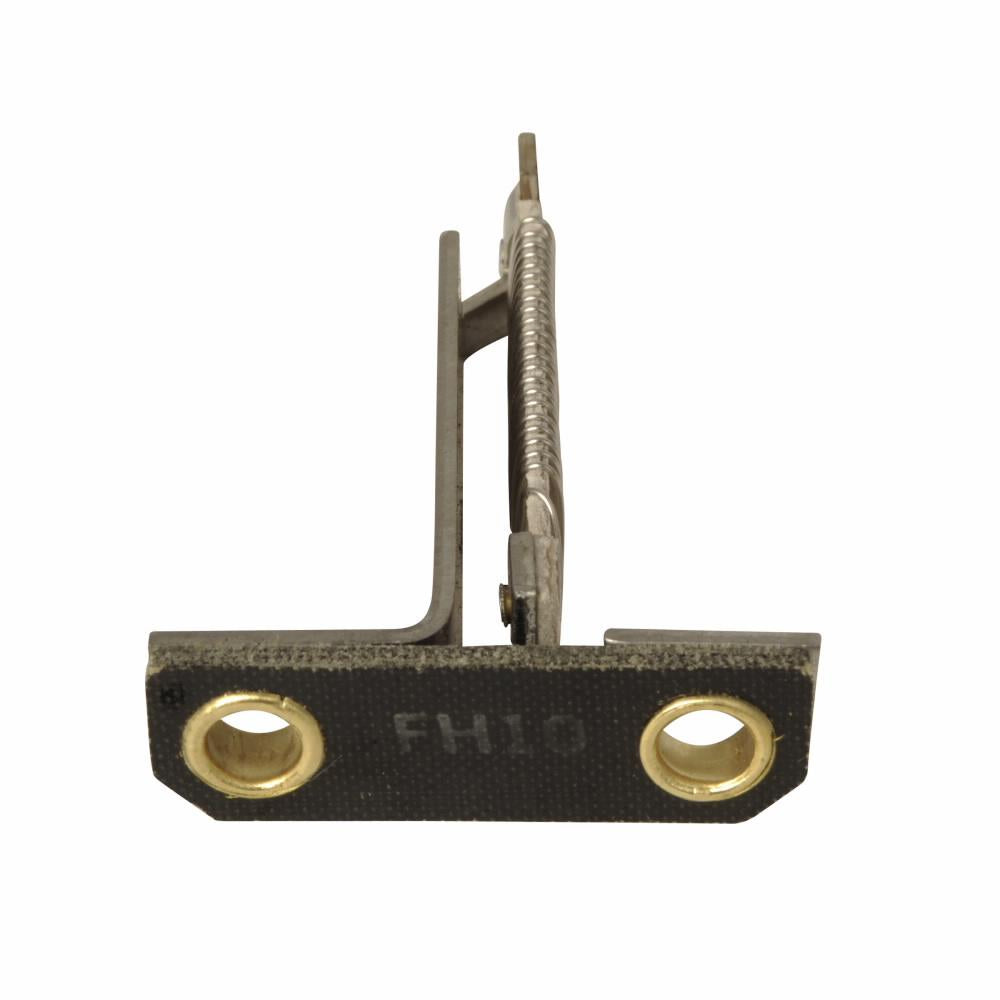

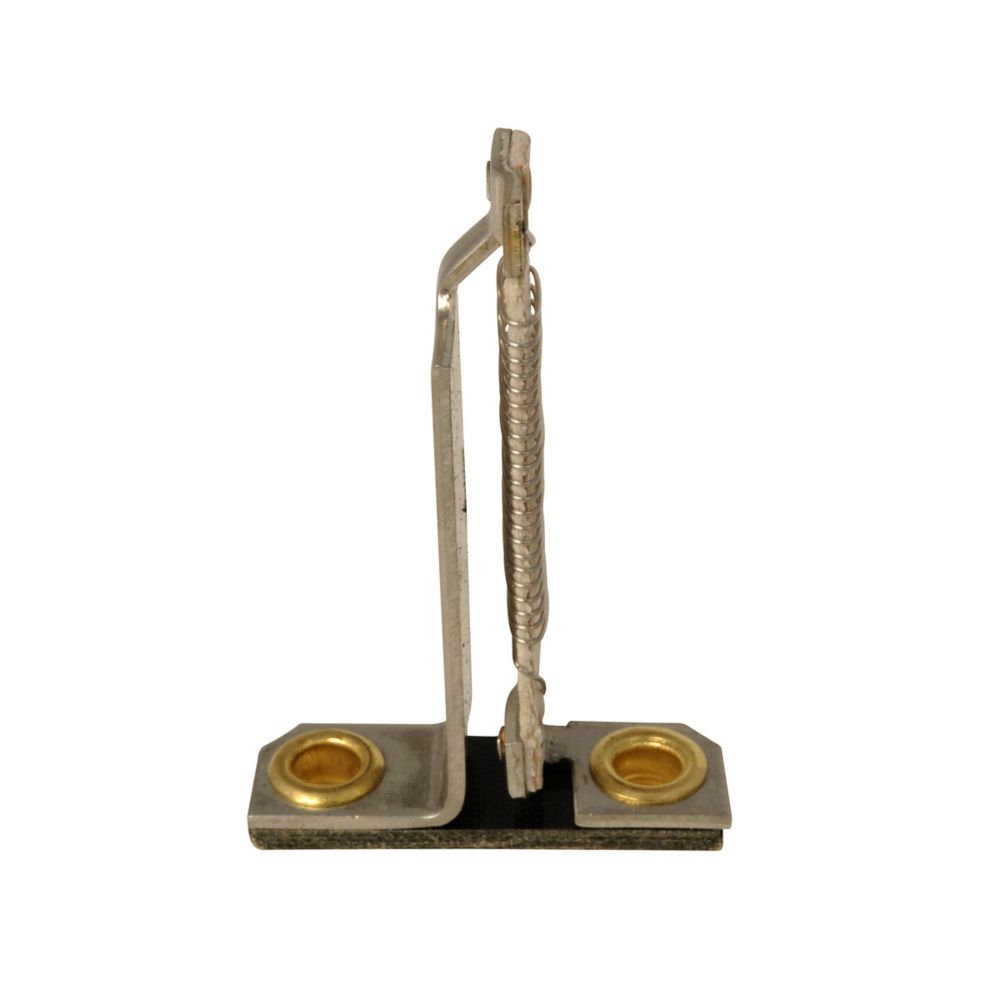

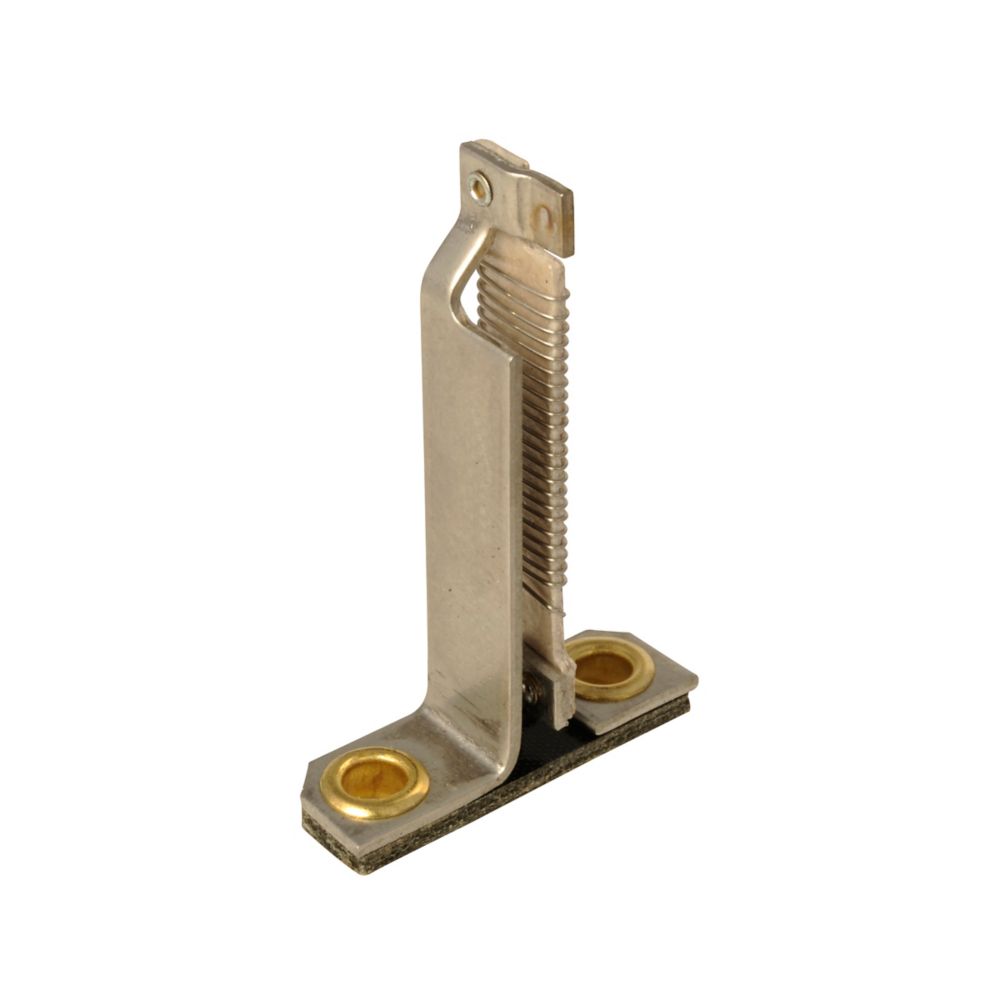

The EATON FH10 is a Type B100 overload relay heater. Each heater is identified by a catalog number stamped on one terminal. It protects motors with a full load current of 0.51 to 0.55/0.59 to 0.64 A Ambient and 0.48 to 0.51/0.57 to 0.63 A Non-Comp. This heater is suitable for NEMA 0/1/2 enclosures.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Type A and b overload relay
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15

Product Highlights

EATON FH10 overload relay heater protects motors in NEMA 0/1/2 enclosures with fast/thermal trip functionality.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH10

Technical Specifications

• Enclosure Type: NEMA 0/1/2
• Full Load Current: 0.51 to 0.55/0.59 to 0.64 A Ambient, 0.48 to 0.51/0.57 to 0.63 A Non-Comp
• Trip Type: Fast/Thermal
• Type: Type B100
• Product Length/Depth: 2.1 in
• Product Height: 0.8 in
• Product Width: 1.3 in
• Certifications: UL Listed CSA Certified
• Catalog Notes: Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
• Global Catalog: FH10
• Product Type: Heater
• Special features: Used with Starter Sizes 0,1, and 2
• Used with: Used with Starter Sizes 0,1, and 2
• Design: NEMA
• Full load current range: Ambient 0.51-0.55, 0.59 -0.64 A, Non-Comp 0.48-0.51, 0.57 -0.63 A
• Overload relay: Type A and B
• Part Number: FH10
• Manufacturer: Eaton Cutler-Hammer
• Family: A200 Series
• Category: Overload Relays
• Motor Fla: 0.57 TO 0.63 AMPERE
• APPROVAL: UL, CSA
• NEMA Size: M-0 (ENCLOSED), M-1 (ENCLOSED)
