Eaton FH06 HEATER

Product Description

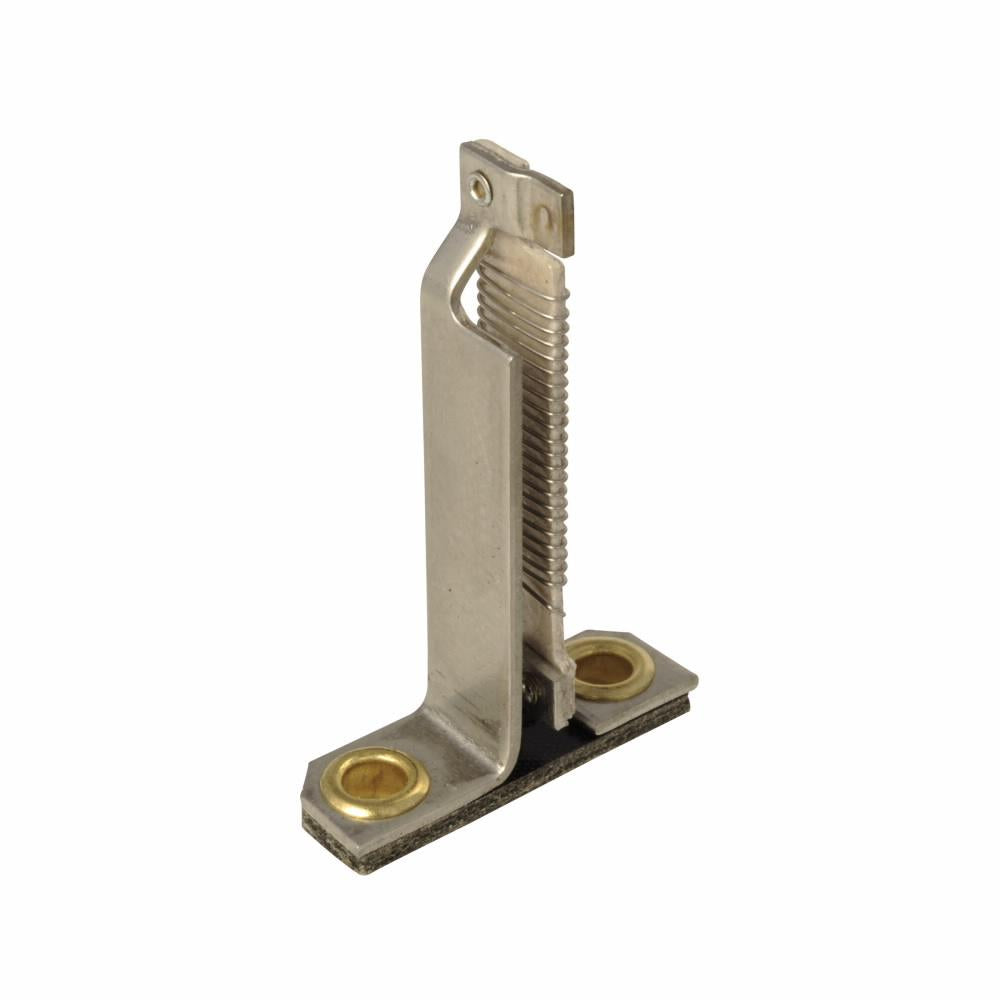

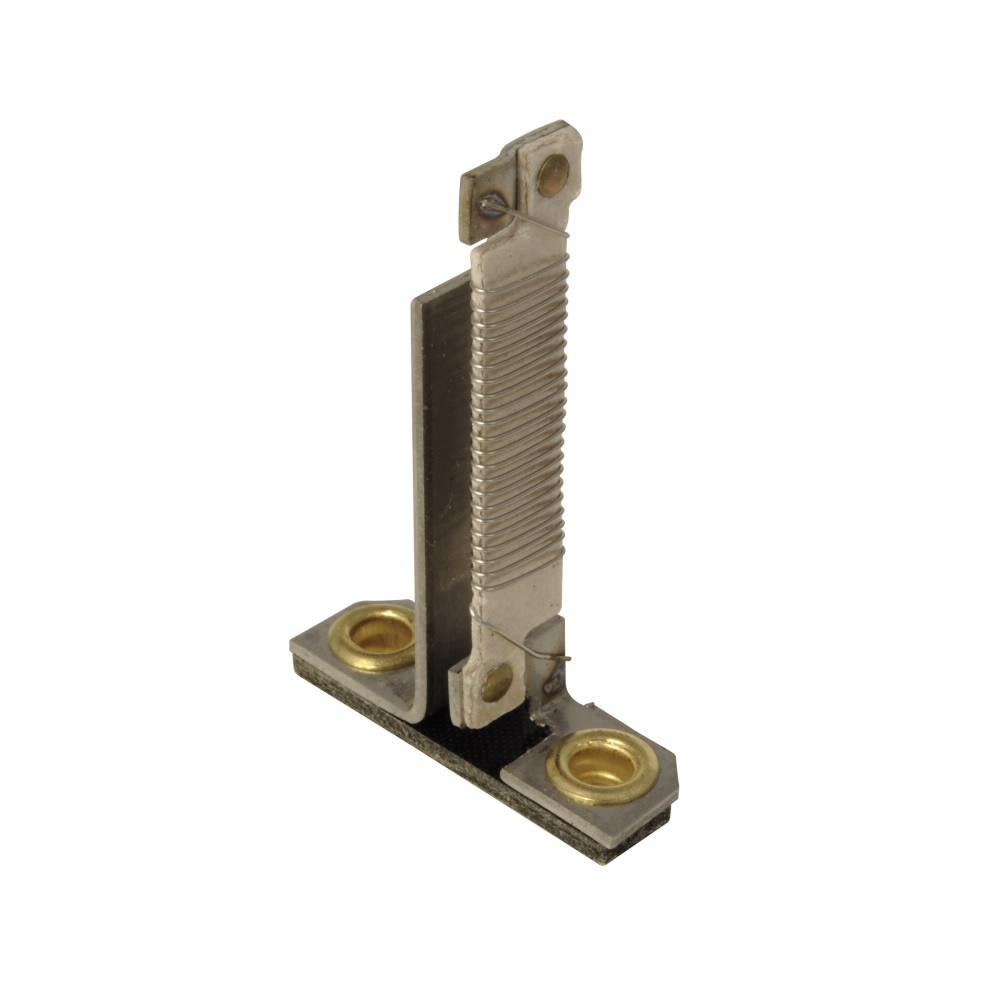

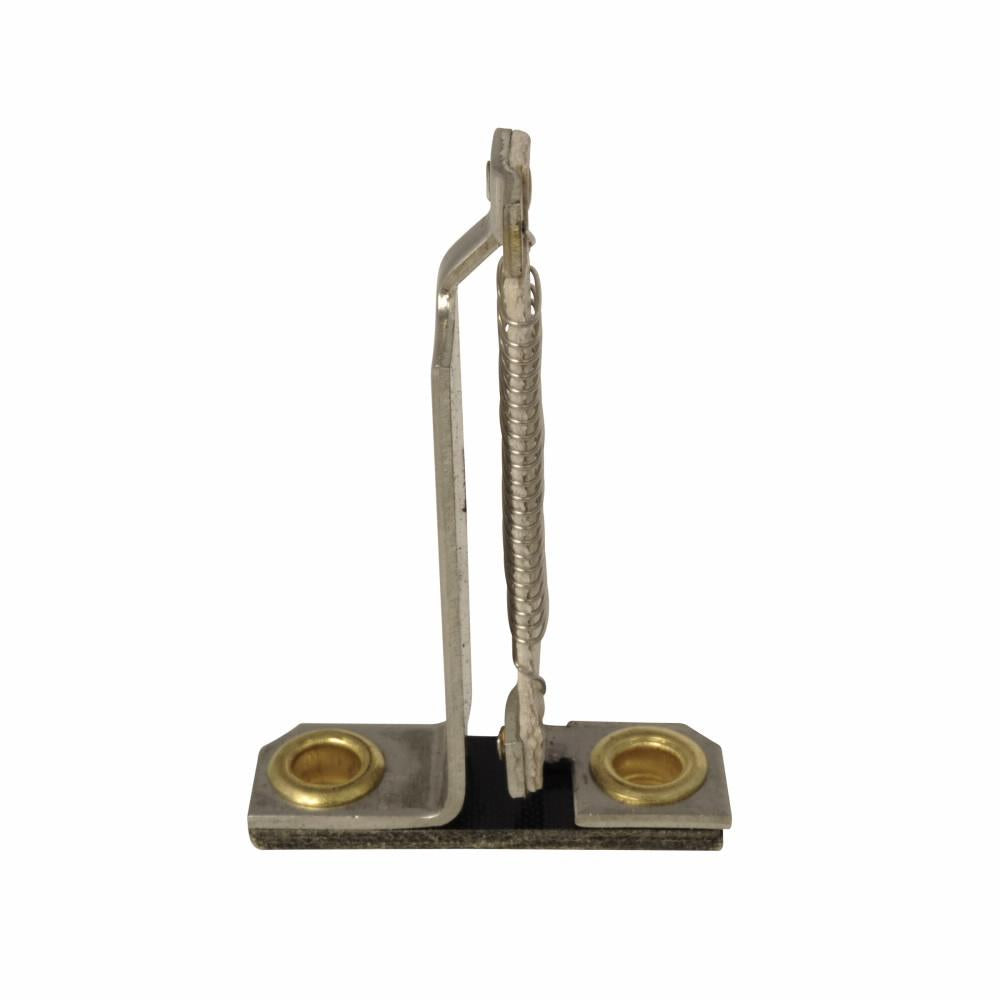

The Eaton FH06 is an overload relay heater identified by a catalog number stamped on one terminal. This heater is compatible with A200 series Size 0, 1, and 2 overload relays and B100 Series manual motor starters, providing precise motor overload protection. Heaters should be selected based on the motor's full load current and service factor.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Type A and B overload relay
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15

Product Highlights

Eaton FH06 heater element protects motors by matching the full load amperage. It ensures reliable thermal trip operation within motor control applications and is UL and CSA approved.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH06
• Country of Origin: Dominican Republic

Technical Specifications

• Enclosure Type: NEMA 0/1/2
• Full Load Current: 0.35 to 0.38/0.4 to 0.43 A Ambient, 0.32 to 0.35/0.38 to 0.42 A Non-Comp
• Trip Type: Fast/Thermal
• Type: Type B100
• Catalog ID: C-HFH06
• Standard & Approvals: UL Listed, CSA Certified
• Full Load Current Rating: 0.35 to 0.38/0.4 to 0.43 A
• Series: A200/B100
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Spare part
• Sub-range name: FH
• Functions: Replacement heater element
• Technical compatibility with: A200 series Size 2 overl. rlys
• Manufacturer product status: Commercialized
• Part Number: FH06
• Manufacturer: Eaton
• Category: Motor Control
• Item Subcategory: Heater Element
• Family: A200 Series
• Full Load Amp Minimum: 0.38
• Full Load Amp Maximum: 0.42
• Full Load Amps: 0.37 to 0.40
• Certification: UL Listed,CSA Certified
