Eaton FH04 A200/B100 Heater

Product Description

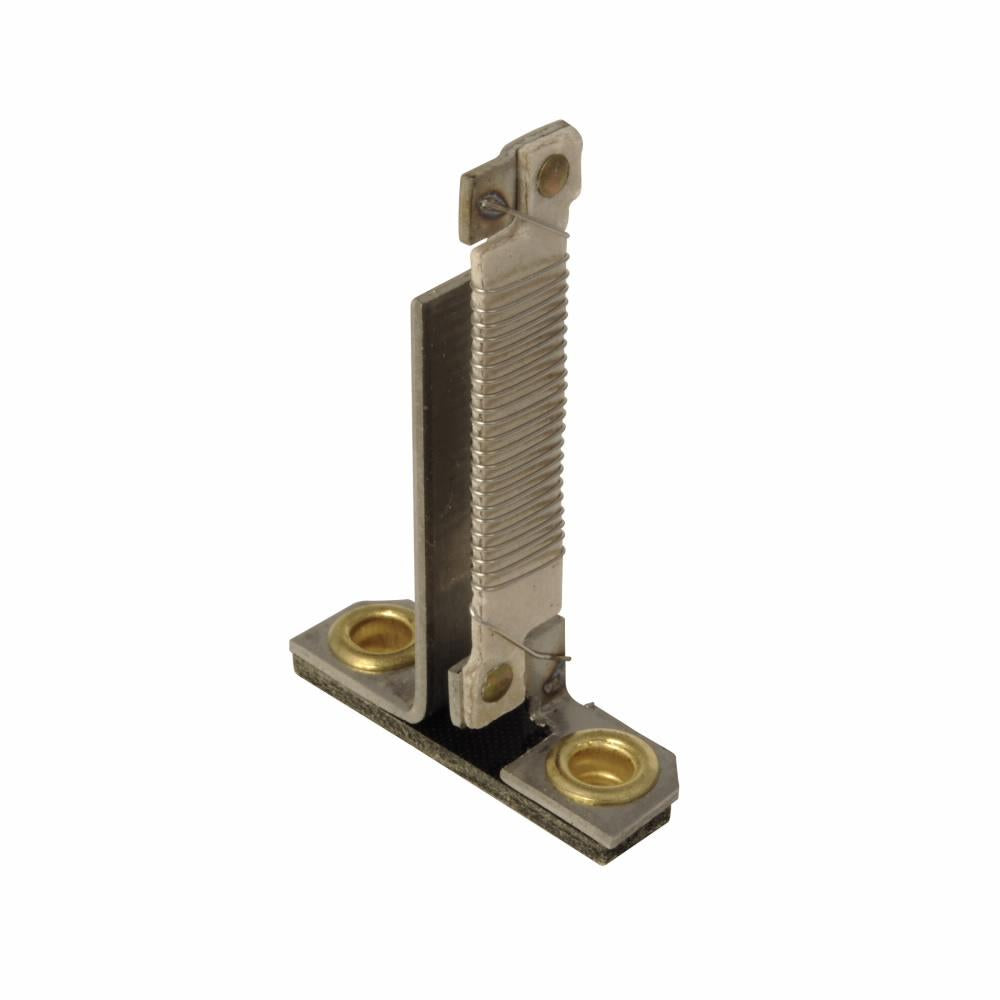

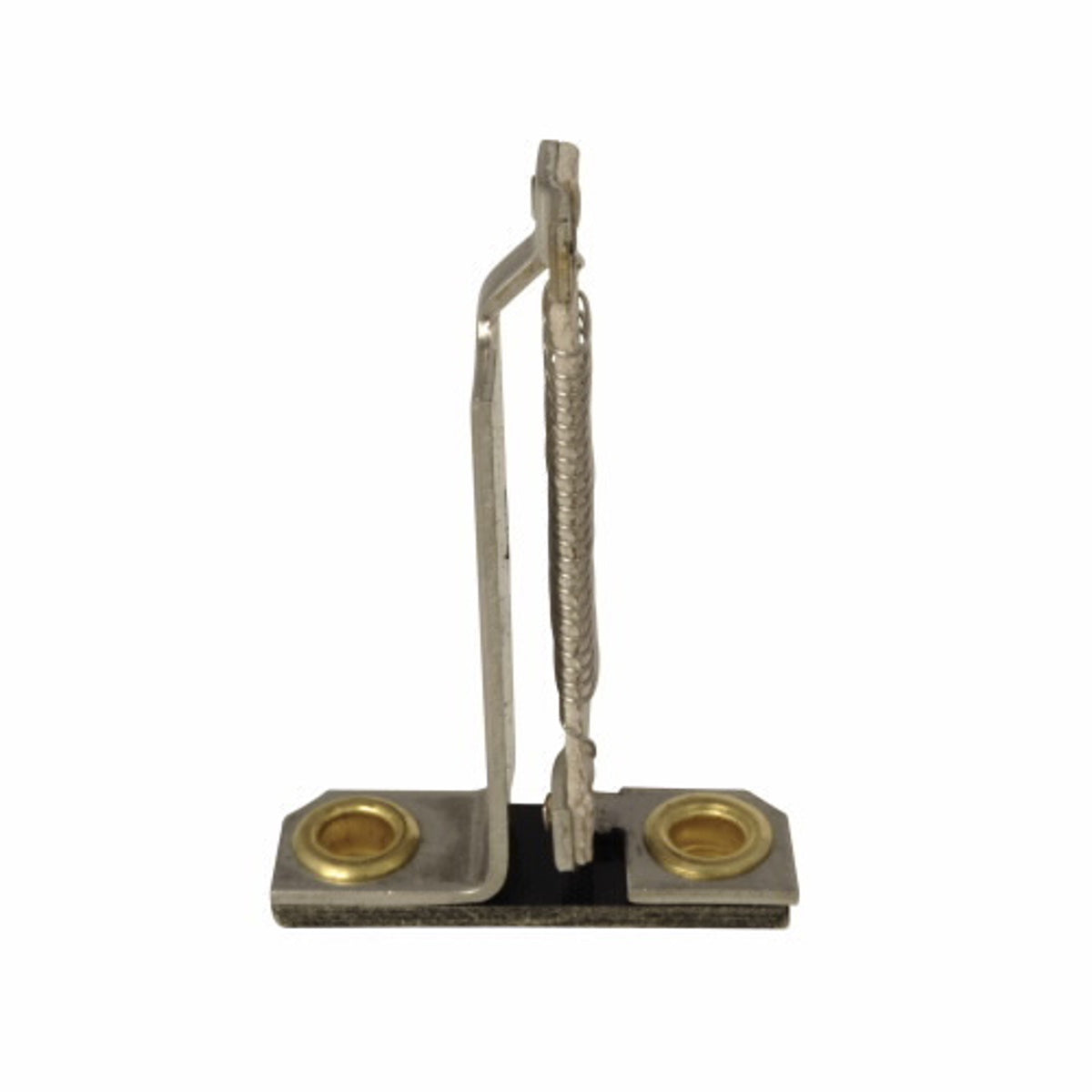

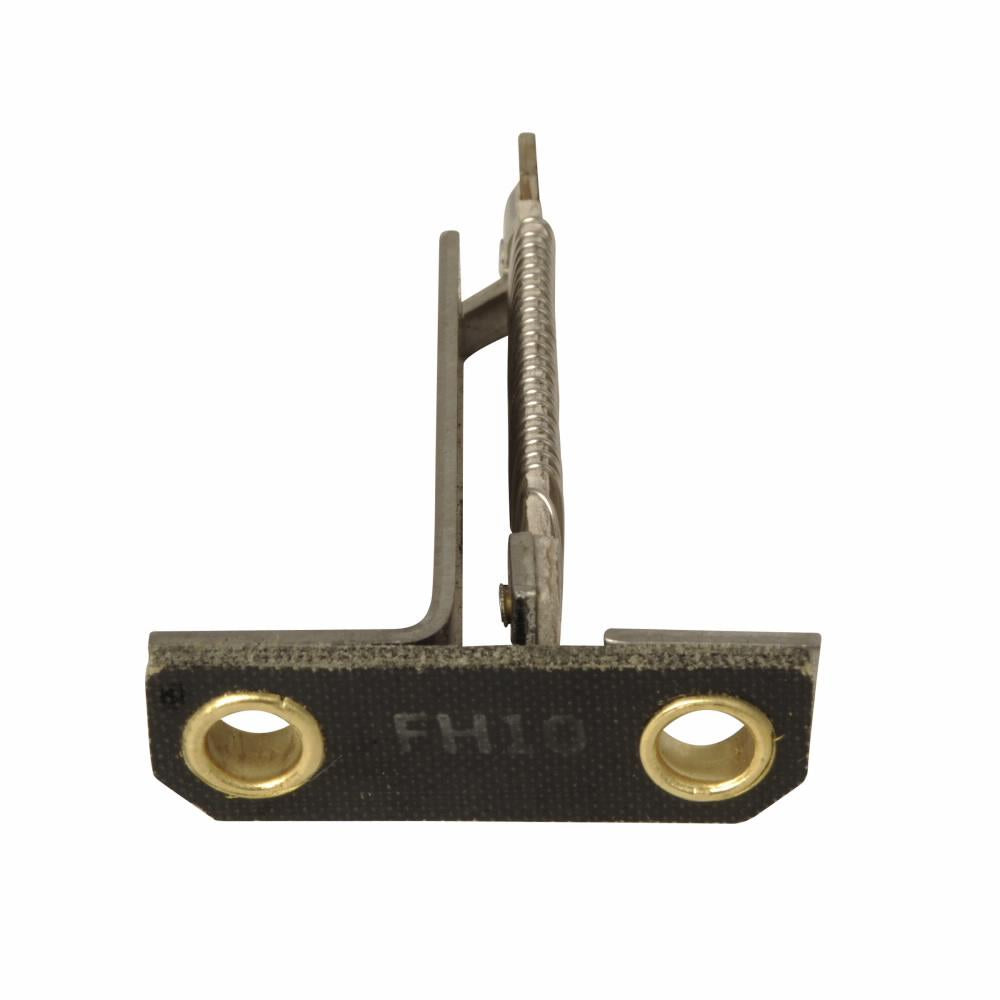

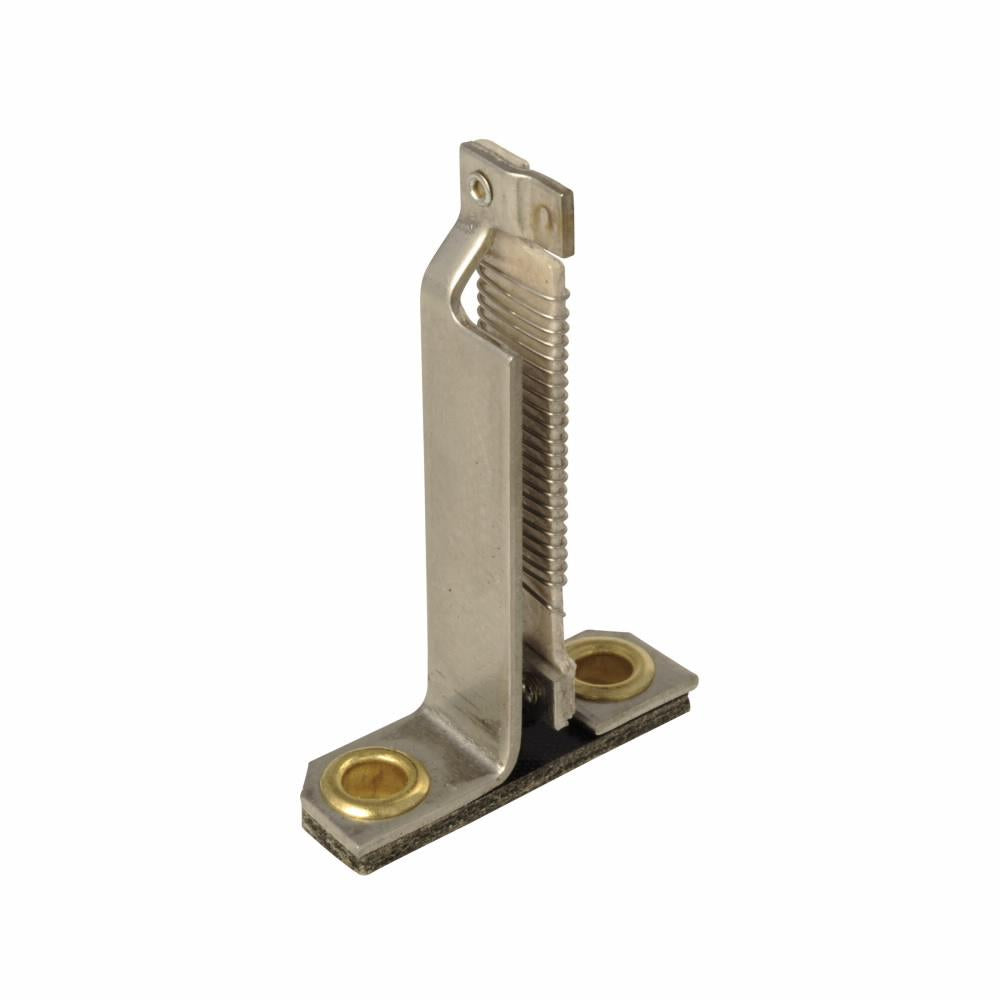

The Eaton FH04 A200/B100 heater is designed for motor protection and compliance with the National Electrical Code. This heater is identified by a catalog number stamped on one terminal and is applied based on the full load motor current. It is suitable for use with starter sizes 0, 1, and 2, and Type A and B overload relays.

• Select heater coils based on full load current (FLA) shown on motor nameplate
• Type A and B overload relay
• Heater coils are rated to protect 40 deg C rise and a service factor of 1.15

Product Highlights

Eaton FH04 heater ensures motor protection and is suitable for various industrial applications with NEMA sizes 0, 1, and 2 starters.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FH04
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: FH04
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Ind Facilities & Factories - Industrial Facilities/Factories - Other
• Standard: UL Listed, CSA Certified
• UPC: 786678628998
• GTIN: 00786678628998
• Item Type: Heater
• Trip Type: Thermal and fast trip
• Enclosure Type: NEMA 0/1/2
• Full Load Current: 0.28 to 0.31/0.32 to 0.35 A Ambient, 0.26 to 0.28/0.31 to 0.34 A Non-Comp
• Type: Type B100
• NEMA Size: 0, 1, 2 (Enclosed/Open)
• Motor FLA: 0.28 to 0.35 Ampere
• Used On: Type A and B Overload Relay
• Series: A200/B100
• Full Load Current Rating: 0.28 to 0.31/0.32 to 0.35 A
• UNSPSC: 39121500
