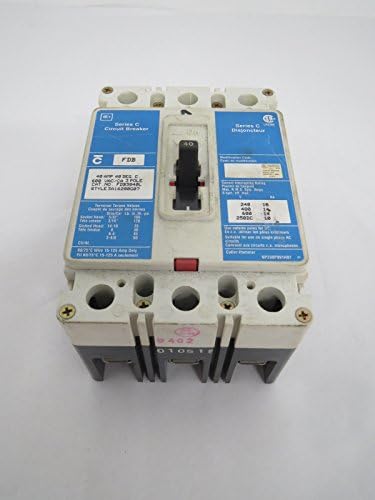

Eaton FDB3040L Fdb 40 Amp 3-Pole Type Fdb Circuit Breaker

Product Description

The EATON FDB3040L is a series C complete molded case circuit breaker with a F-frame, designed with fixed thermal and fixed magnetic trip type. This three-pole breaker supports 40A, 600 Vac, and 250 Vdc, and operates at 50/60 Hz. It is suitable for panelboard, switchboard, motor control center and busway applications.

• Suitable for reverse feed applications
• 18 kA at 240 VAC, 14 kA at 480 VAC interrupt rating
• All circuit breakers 10 to 50 A are suitable for HID (high intensity discharge) use

Product Highlights

The EATON FDB3040L circuit breaker is designed for electrical assemblies and OEM applications, providing reliable circuit protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FDB3040L

Technical Specifications

• Type: Molded case circuit breaker
• Brand: Eaton
• Frame: F
• Width: 4.13 in
• Height: 6 Inch
• Length: 3.38 Inch
• Current: 40 Amp
• Voltage: 600 VAC/250 VDC
• Amperage: 40 A
• Frequency: 50/60 Hz
• Trip Type: Fixed Magnetic,Fixed Thermal
• Product UPC: 78667930592
• 12-Digit UPC: 786679305928
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
• Terminal Type: Line And Load
• Number of Poles: 3
• Circuit Breaker Type: FDB
• Actuator Type: Handle
• Application: For panelboard, switchboard, motor control center and busway applications, electrical assemblies and OEM's
• Connection Type: Line/Load
• Dimensions: 3.38 x 4.13 x 6 in
• Enclosure: NEMA AB1-1993
• Frequency Rating: 50/60 Hz
• Manufacturer Part Number: FDB3040L
• Mounting Type: Panel
• Phase: 3 ph
• Series: C Series
• Standards/Approvals: AS 2184|BS 4752|CE Marking|CSA Certified|SABS 156|SEV 157-1|UL Listed|VDE 0660
• Temperature Rating: 40 deg C
• Amperage Rating: 40 A
