Eaton FDB3015L Series C Molded Case Circuit Breaker 15A replacement PDG23F0015TFFJ

Product Description

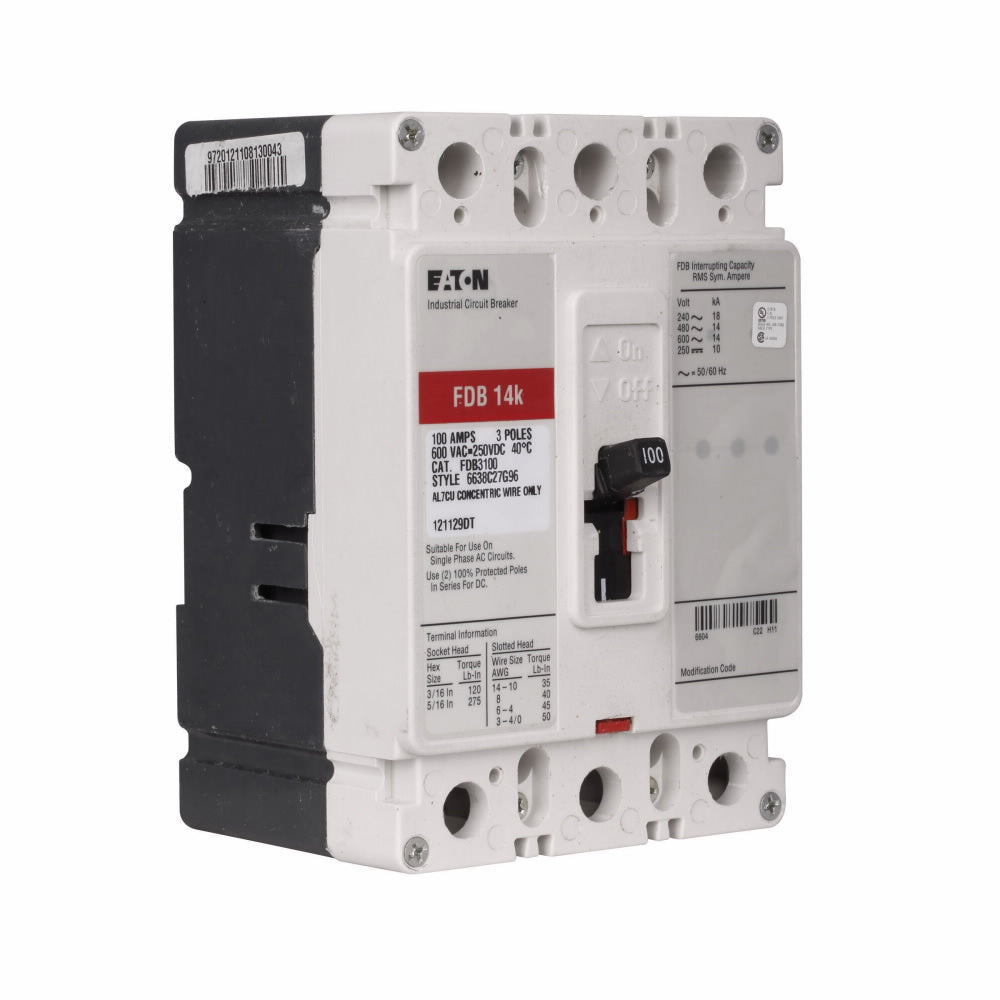

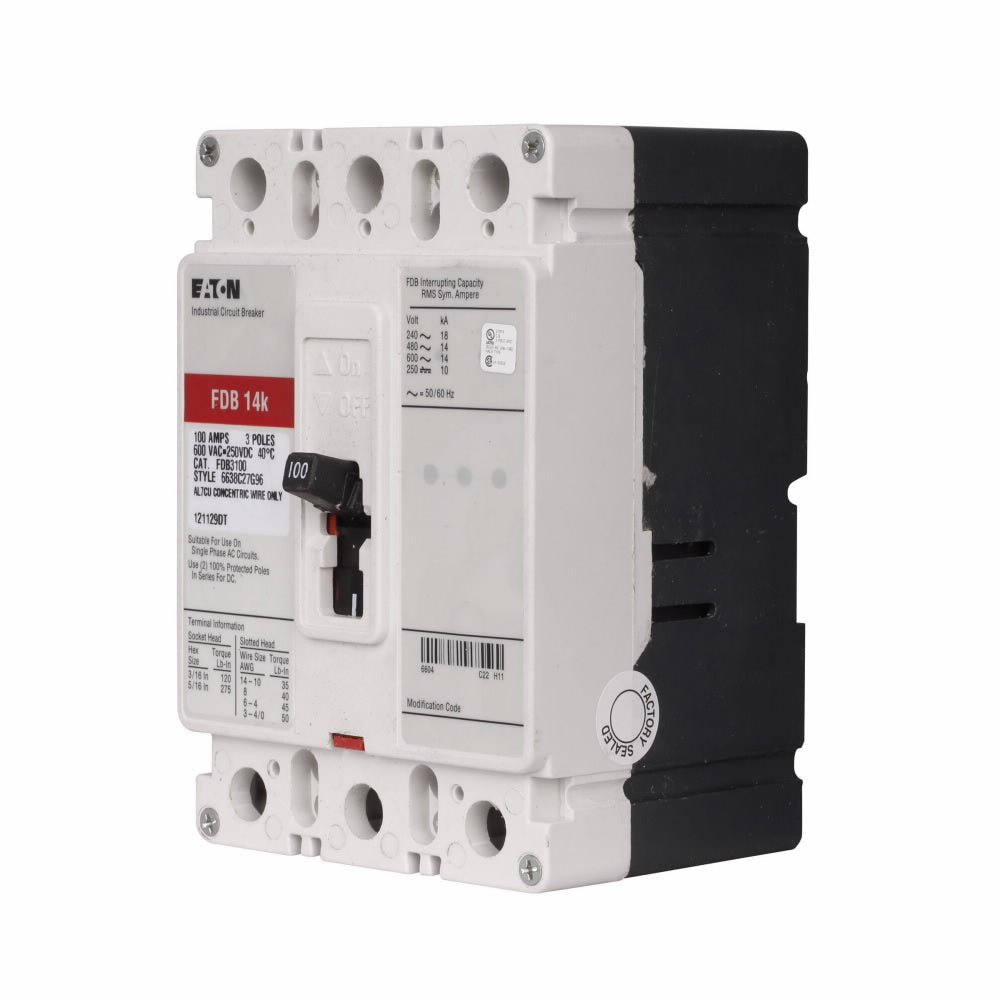

The Eaton FDB3015L Series C complete molded case circuit breaker is an F-frame, three-pole breaker with a 15A amperage rating. Operating at 600 Vac and 250 Vdc, it offers an interrupt rating of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac. Designed with fixed thermal and magnetic trip type, it's suitable for line and load applications, functioning at 50/60 Hz.

• Fixed thermal, fixed magnetic trip type
• Line and load terminals
• Suitable for standalone industrial applications

Product Highlights

The Eaton FDB3015L circuit breaker provides thermal-magnetic protection and includes factory-installed line and load lugs. It is HACR and HID rated for specialized loads.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FDB3015L
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: FDB3015L
• UPC: 786679305836
• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 4.13 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 15 A
• Voltage rating: 600 Vac, 250 Vdc
• Trip Type: T186
• Circuit breaker type: FDB
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Terminals: Line and load
• Frame: F
• Frequency rating: 50/60 Hz
• Interrupt rating: 18 kAIC at 240 Vac 14 kAIC at 480 Vac
• Number of poles: Three-pole
• Brand: Eaton / Cutler-Hammer
• Part Number: FDB3015L
• Amperage: 15A
• Voltage: 240VAC, 480VAC, 600VAC, 250VDC
• Poles: 3
• Phase: 3
• AIC Rating: 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
• Mounting Style: Unit Mount
• Terminal Type: Lugs
• For Use With: Eaton F-Frame Enclosures, Switchboards, Motor Control Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14 AWG - 1/0 AWG (Cu/Al)
• Max Wire: 1/0 AWG
• Min Wire: 14 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
• Accessories: Line and Load Lugs
• Standards: CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489
• Approval: CE, CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip
• Manufacturer: Eaton Cutler-Hammer
• Family: Series C
• Pole: 3
• Amp: 15
• Volt: 600
• Category: Molded Case
• Connection: Feed-Thru
• Type: FDB
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 14kA@480V
• Frame Type: F Frame
• Dimensions (HxWxD): 6" x 4.13" x 3.38"
