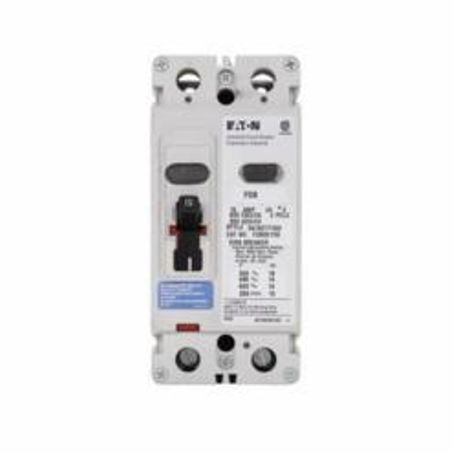

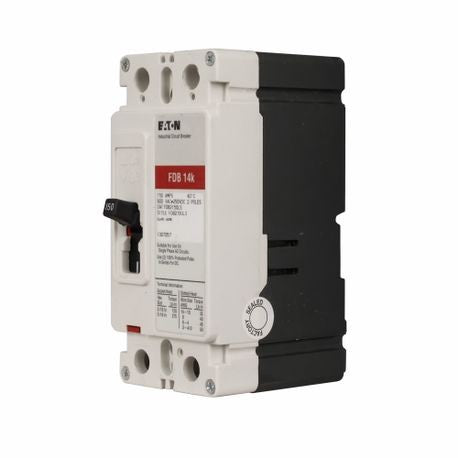

EATON FDB2080 C Series Type FDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 80 A, 14 kAIC at 480 VAC/18 kAIC at 240 VAC Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic Trip

Product Description

The EATON FDB2080 is a C Series Type FDB Molded Case Circuit Breaker designed for various applications including panelboards, switchboards, motor control centers, and busways. This circuit breaker operates at 600 VAC and 250 VDC with a current rating of eighty amperes. It features two poles and offers fixed thermal and fixed magnetic trip capabilities.

• Interrupt ratings of 14 kAIC at four hundred eighty VAC and 18 kAIC at two hundred forty VAC
• Patented contact design allows for high-speed blow-open action
• Suitable for reverse feed applications

Product Highlights

This circuit breaker is crucial for dependable branch circuit protection and complies with various North American standards. It is suitable for environments where electrical assemblies and OEM applications are prevalent.

Product Information

Standard Information

• Brand: EATON
• MPN: FDB2080

Technical Specifications

• Dimensions: 3.38 x 2.75 x 6 inches
• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 80 A
• Interrupt Rating: 14 kAIC at 480 VAC, 18 kAIC at 240 VAC
• Number of Poles: 2
• Phase: 1 ph
• Temperature Rating: 40 deg C
• Frequency Rating: 50/60 Hz
• Connection Type: Load
• Trip Type: Fixed Thermal/Fixed Magnetic
• Standard & Approvals: AS 2184, BS 4752, CSA C22.2/5, Federal Specification WC-375B, HACR Rated, IEC 60947-2, SABS 156, SEV 157-1, UL 489, VDE 0660
