Eaton FD90-1012-02-04 FD90 Series SAE J1502 Interchange Diagnostic Quick Disconnect -04 Coupling REPLACEMENT

Product Description

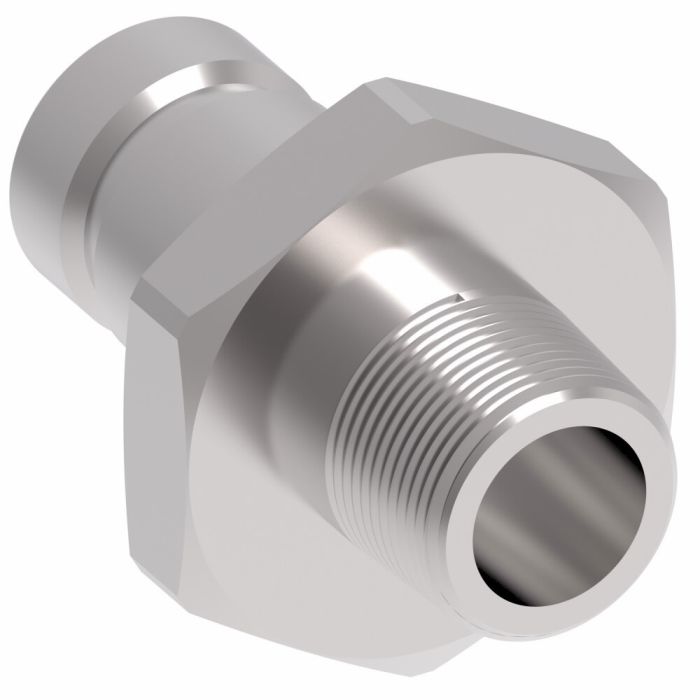

The EATON FD90-1012-02-04 is an FD90 Series SAE J1502 interchange diagnostic quick disconnect, male half, with a -04 coupling and 1/8-27 male NPT. It is designed for diagnostic pressure testing for hydraulic systems. The quick disconnect features a sleeve lock safety locking mechanism and Buna-N seal material.

• SAE J1502 Interchange Diagnostic Quick Disconnect
• Features a sleeve lock safety locking mechanism
• Designed for diagnostic pressure testing for hydraulic systems

Product Highlights

SAE J1502 quick disconnect for hydraulic system diagnostic pressure testing. Features sleeve lock and Buna-N seal.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FD90-1012-02-04

Technical Specifications

• Application: Diagnostic pressure testing for hydraulic systems
• Coupling Size: -04
• Brand: Aeroquip
• Safety locking Mechanism: Sleeve lock
• Seal Material: Buna-N
• Supplier Part Number: FD90-1012-02-04
• Thread 1: 1/8-27
• Thread Sealant: No
• Air Inclusion Max: 0.02 Cubic_centimeter
• Fluid Loss: 0.10 Cubic_centimeter
• Minimum Working Temperature: -40
