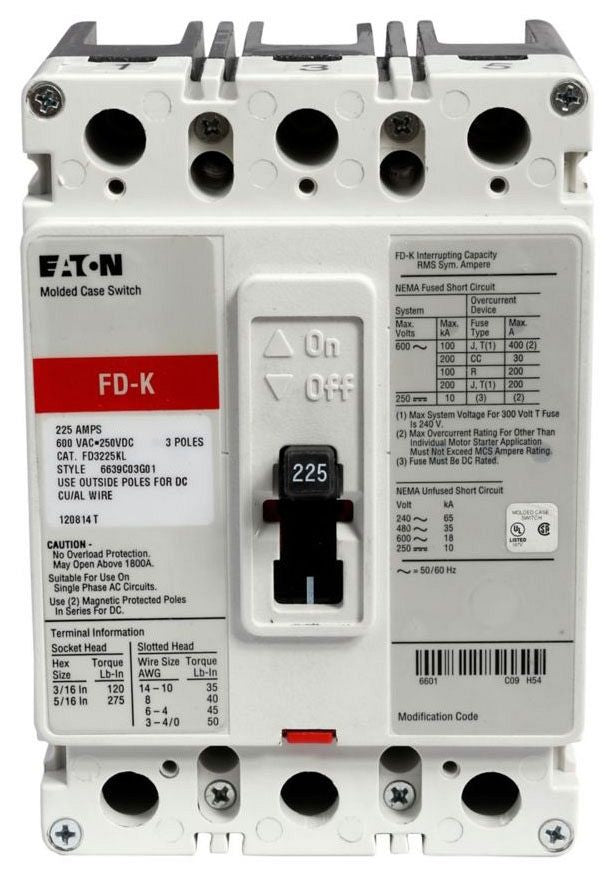

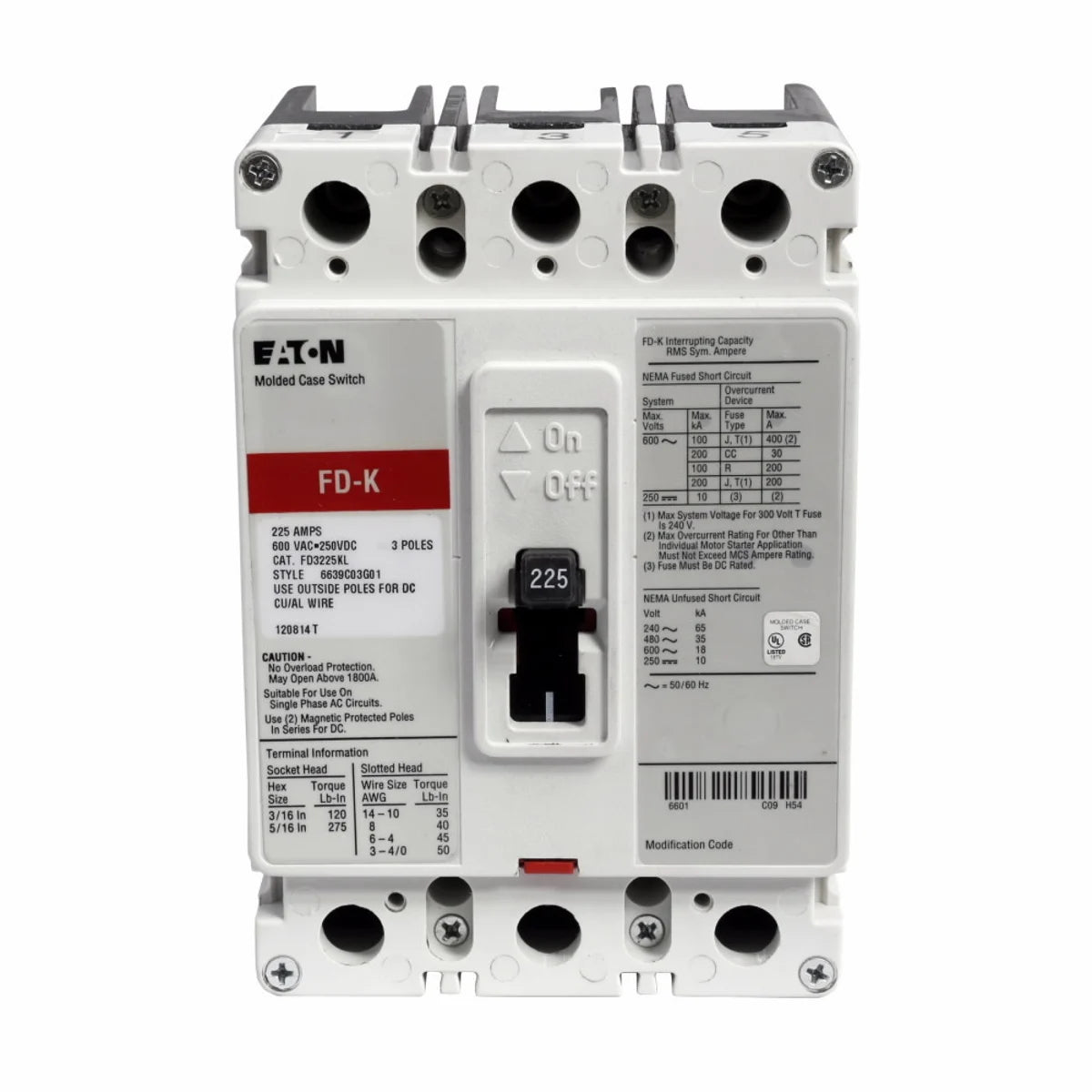

EATON FD3225 BREAKER CKT CASE MLD 600 VAC/250 VDC 3 F

Product Description

The Eaton FD3225 is a molded case circuit breaker with a voltage rating of six hundred VAC and two hundred fifty VDC. This breaker is designed for three-pole applications and can handle a current rating of two hundred twenty-five amps. It provides superior protection and reliability in electrical systems, suitable for panelboards, switchboards, and motor control centers.

• Three-pole type FD circuit breaker
• Fixed thermal and fixed magnetic trip type
• Interrupt rating of sixty-five kA at two hundred forty VAC and thirty-five kA at four hundred eighty VAC

Product Highlights

This product includes a patented contact design for high-speed blow open action, ensuring improved performance. It is suitable for reverse feed applications and has been used with great acceptance in North America for over twenty years.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: FD3225

Technical Specifications

• Voltage Rating: 600 VAC / 250 VDC
• Current Rating: 225 A
• Frame Size: F
• Number of Poles: 3
• Trip Type: Fixed Thermal / Fixed Magnetic
• Frequency Rating: 50 / 60 Hz
• Dimensions: 3.38 in L x 4.13 in W x 4.13 in H
• Environment Rating: NEMA AB1-1993
• Temperature Rating: 40 deg C
