Product Description

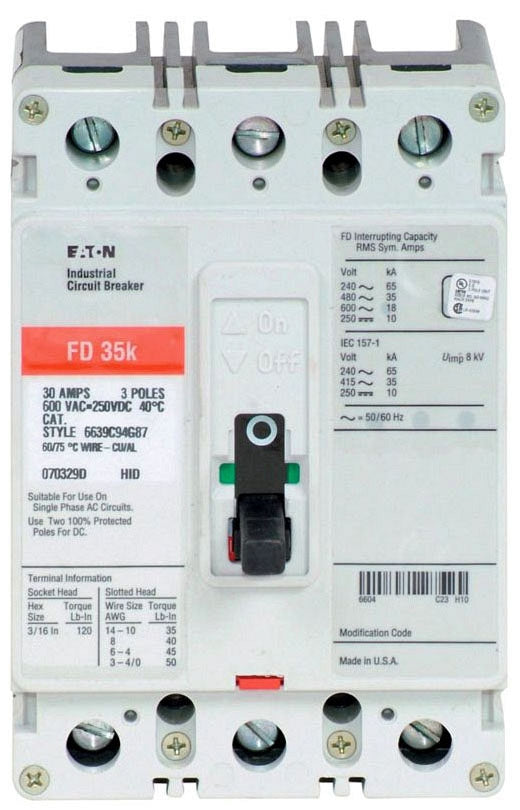

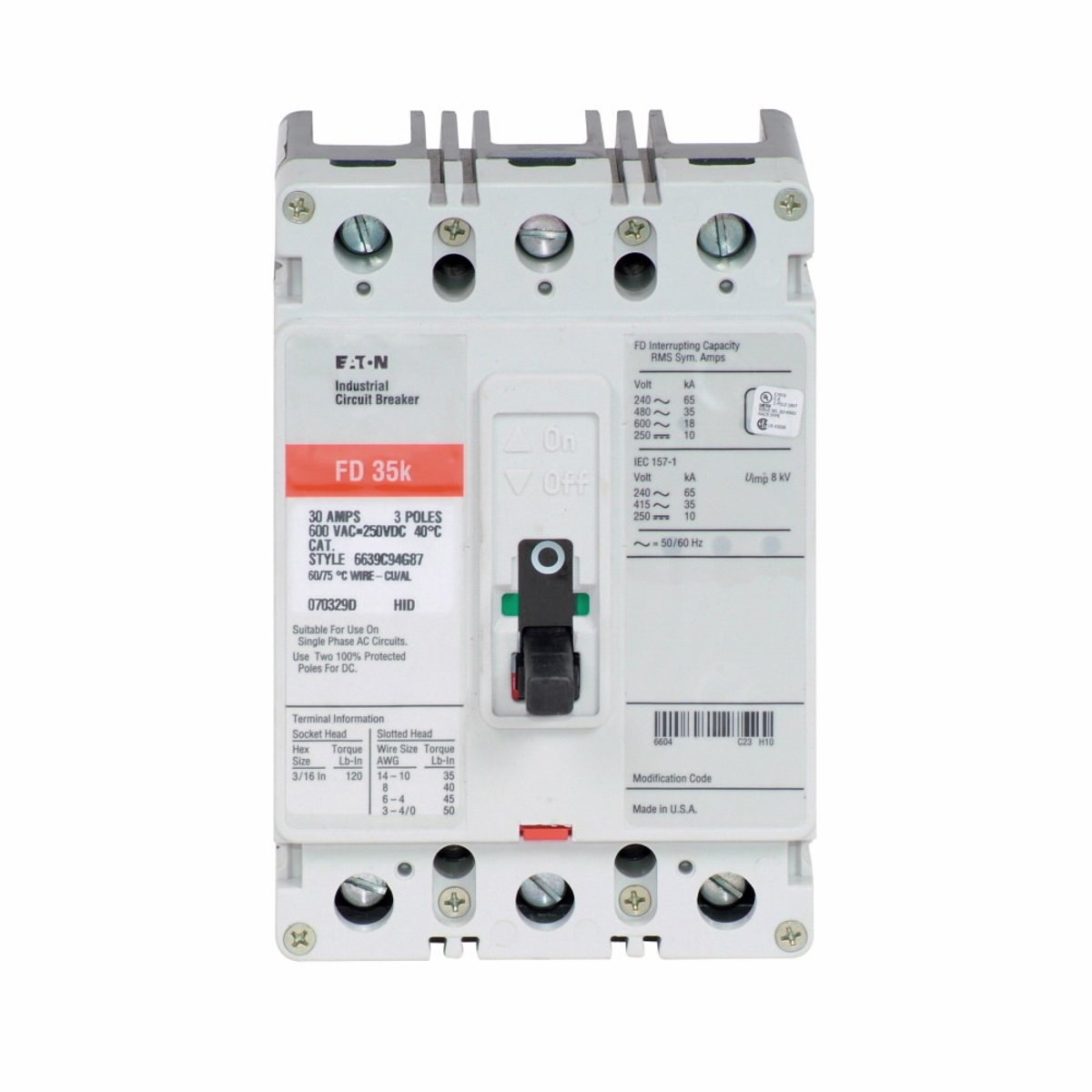

The Eaton FD3200 is a molded case circuit breaker designed for applications requiring reliable circuit protection. The MPN FD3200 ensures compatibility with various electrical systems operating at up to six hundred volts alternating current or two hundred fifty volts direct current. It is used predominantly in panelboards, switchboards, and motor control centers.
- Current rating of two hundred amperes
- Interrupt rating options of thirty-five kA at four hundred eighty volts, or sixty-five kA at two hundred forty volts
- Three-pole configuration with fixed thermal and magnetic trip settings
Product Highlights
This circuit breaker is suitable for use in motor control centers and industrial applications, providing dependable branch circuit protection for a variety of electrical assemblies.
Product Information
Standard Information
-
Brand: Eaton
-
Product Type: Molded Case Circuit Breaker
Technical Specifications
-
MPN: FD3200
-
Voltage Rating: 600 VAC/250 VDC
-
Amperage Rating: 200 A
-
Number of Poles: 3
-
Frequency Rating: 50/60 Hz
-
Dimensions: 3.38 in L x 4.13 in W x 4.13 in H
-
Enclosure Type: NEMA AB1-1993
-
Temperature Rating: 40 deg C
-
Trip Type: Fixed Thermal/Fixed Magnetic/Non-Interchangeable
-
Interrupt Rating: 35/65 kA
-
Wire Size: 4 to 4/0 AWG
