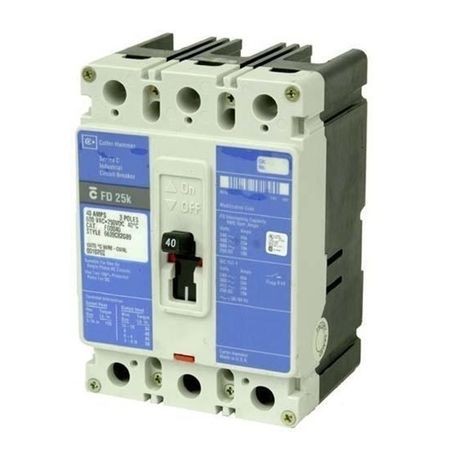

Eaton FD3050 C Series Type FD Molded Case Circuit Breaker 600 VAC 50 Amp 3 Poles

Product Description

The Eaton FD3050 is a Series C molded case circuit breaker designed for reliable electrical protection. This three-pole, fixed thermal, and fixed magnetic trip type circuit breaker operates at fifty amperes and supports voltage ratings of up to six hundred volts AC and two hundred fifty volts DC.

• Trip Type: Fixed Thermal, Fixed Magnetic
• Multiple applications including panelboards and motor control centers
• Nominal interrupt rating of sixty-five kAIC at two hundred forty volts

Product Highlights

The Eaton FD3050 is optimized for use in various electrical assemblies and provides reliable branch circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: FD3050

Technical Specifications

• Current Rating: 50 Amp
• Voltage Rating: 600 Vac, 250 Vdc
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed Thermal, Fixed Magnetic
• Number of Poles: 3
• Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Frame: F
• Dimensions: 3.38 inches x 4.13 inches x 6 inches
• Weight: 4.5 lb
