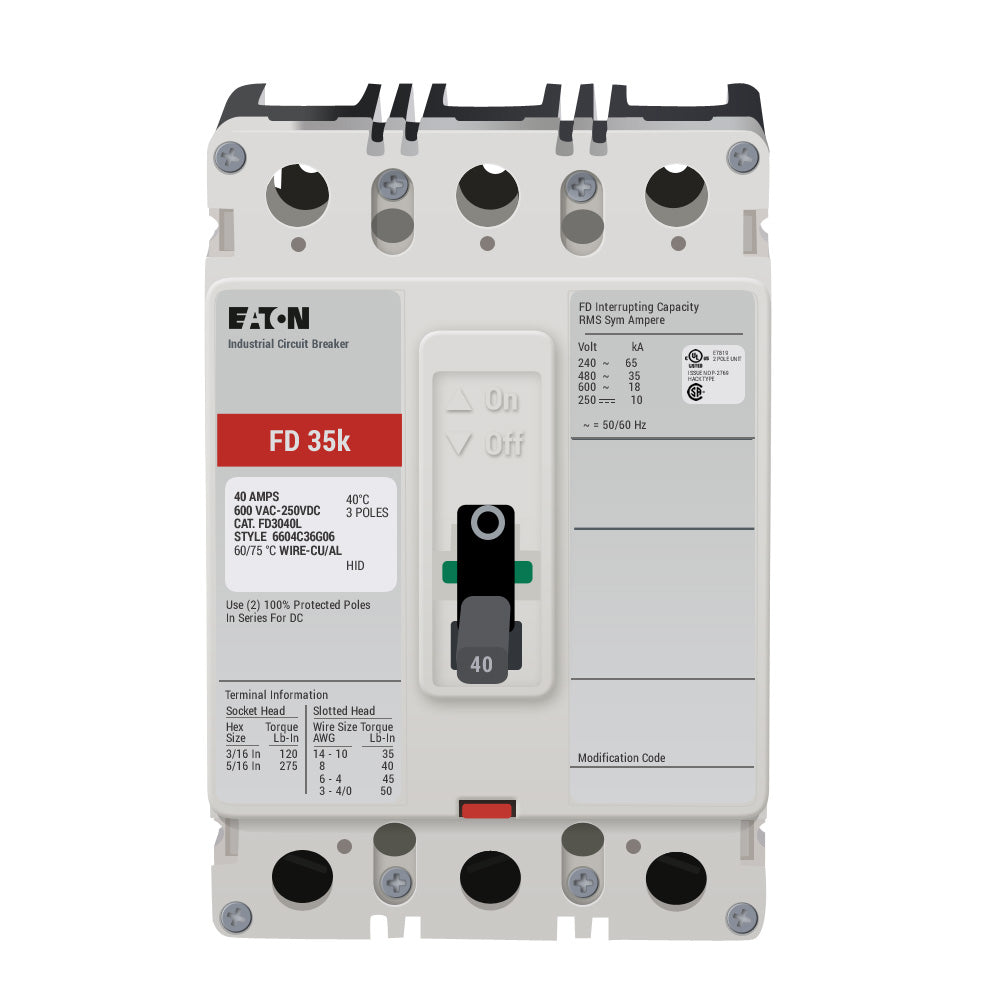

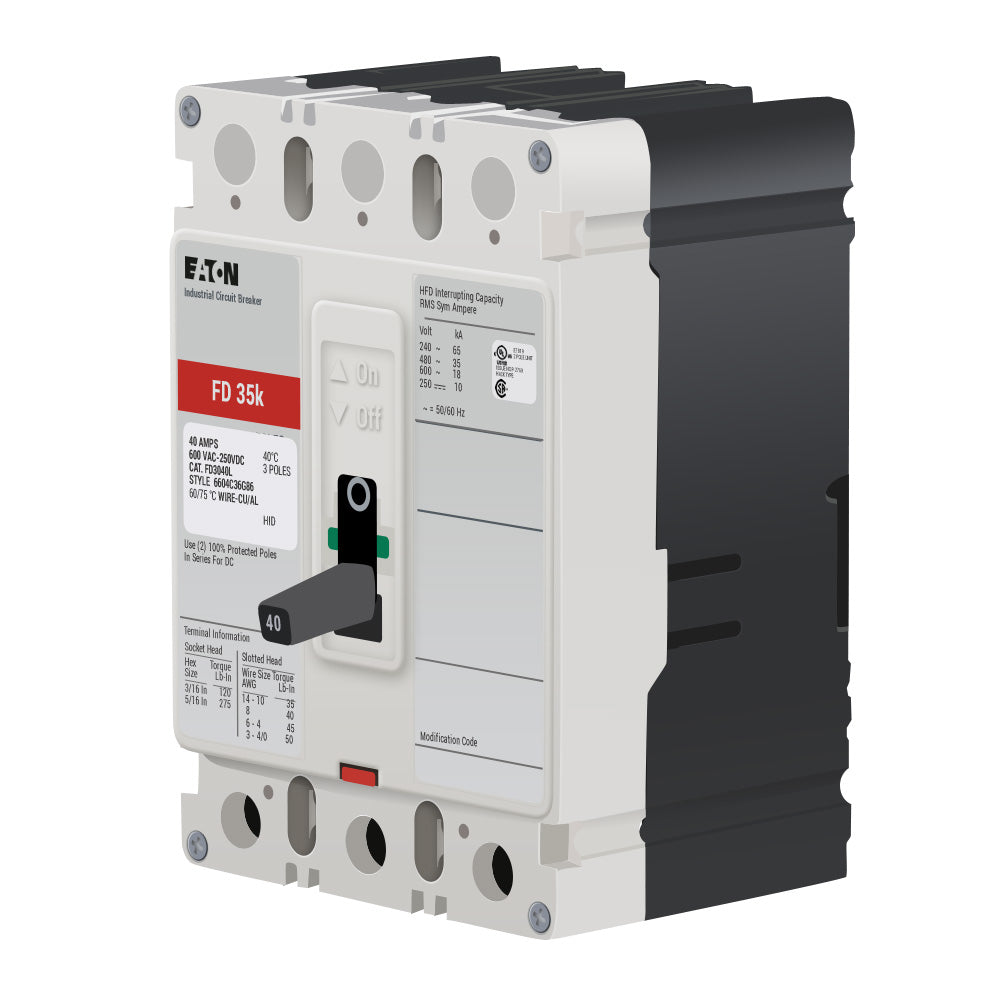

Eaton FD3040L Series C Molded Case Circuit Breaker 40A

Product Description

The EATON FD3040L is a Series C complete molded case circuit breaker. This F-frame, three-pole breaker has a fixed thermal, fixed magnetic trip type and is rated for 40A, 600 Vac, and 250 Vdc. It has an interrupt rating of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac and a frequency of 50/60 Hz.

• Complete breaker with fixed thermal and magnetic trip.
• Rated for 40A and up to 600 Vac.
• Suitable for line and load applications.

Product Highlights

The EATON FD3040L circuit breaker provides reliable circuit protection in a compact, molded case design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FD3040L
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: FD3040L
• UPC: 786679305683
• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 4.13 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 40 A
• Voltage rating: 600 Vac, 250 Vdc
• Trip Type: T186
• Circuit breaker type: FD
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Terminals: Line and load
• Frame: F
• Frequency rating: 50/60 Hz
• Interrupt rating: 35 kAIC at 480 Vac 65 kAIC at 240 Vac
• Number of poles: Three-pole
• Amps: 40A
• Type: Thermal Magnetic Breaker
• Voltage Maximum: 600V AC
• kA IR 240V AC: 65
• kA IR 480V AC: 25
• kA IR 600V AC: 18
• KA IR VDC: 10
• Frame Type: F-Frame
• Manufacturer: Eaton Cutler-Hammer
• Pole: 3
• Volt: 600
• Phase: 3
• Category: Molded Case
• Connection: Feed-Thru
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 35kA@480V
