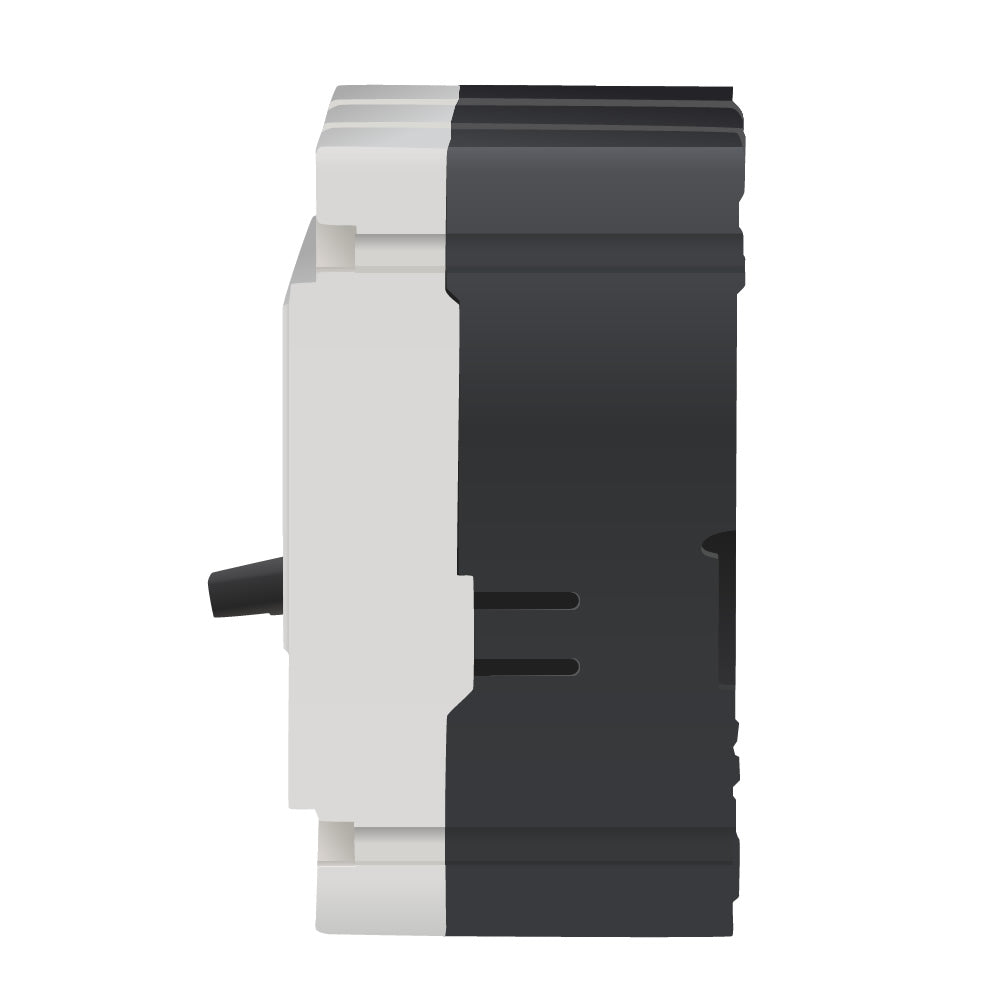

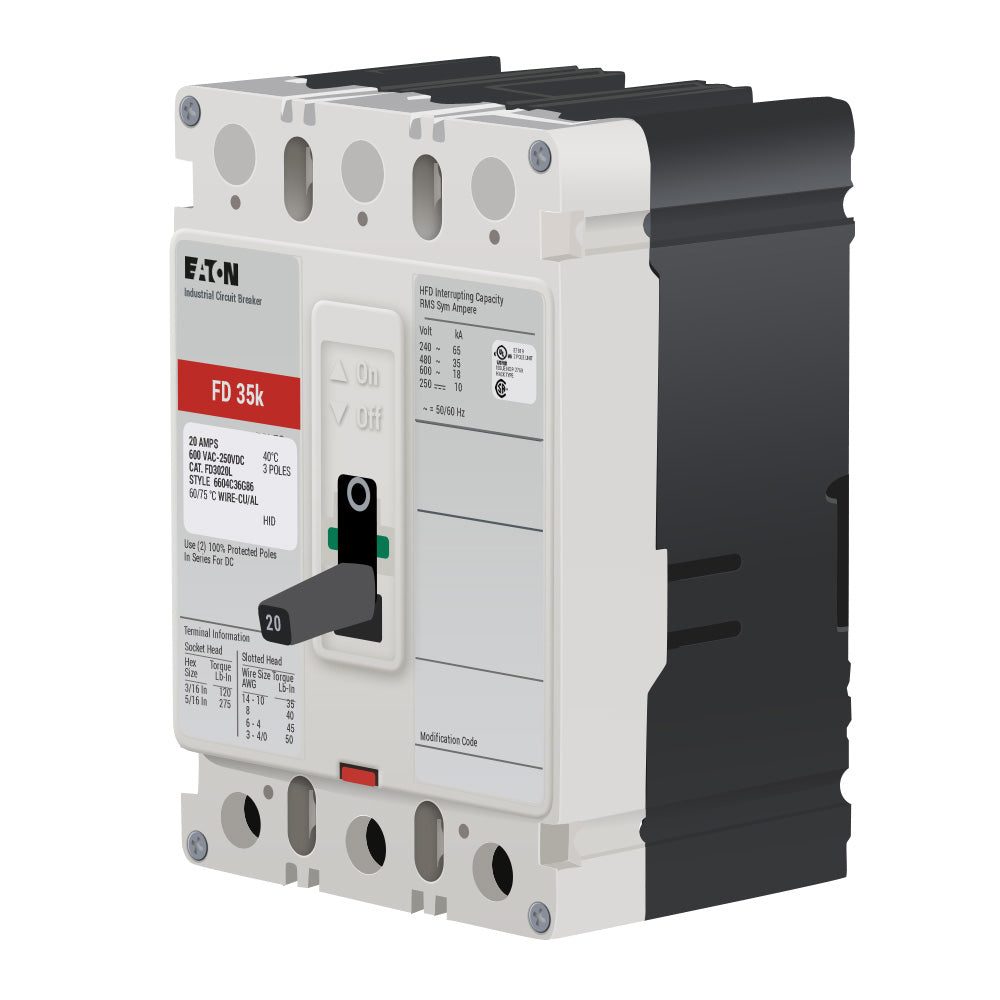

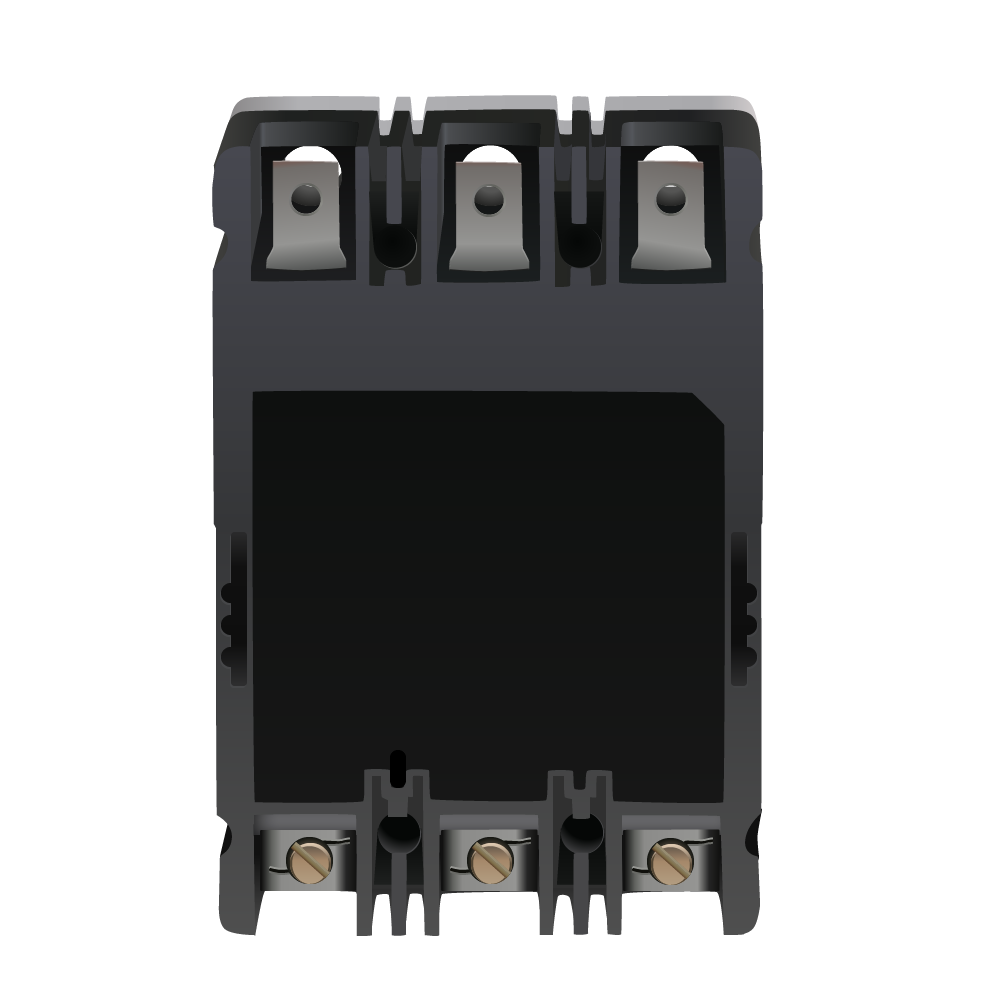

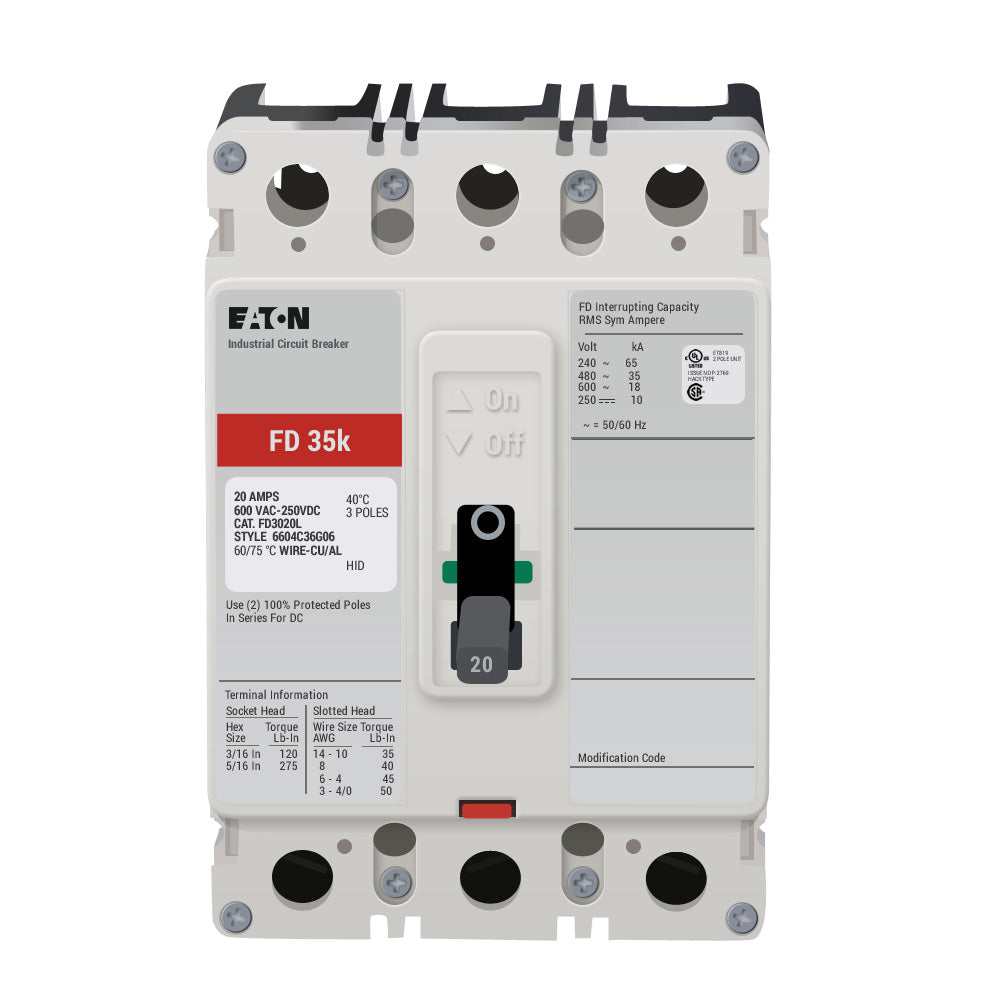

Eaton FD3020L Series C Molded Case Circuit Breaker 20A REPLACEMENT FD3020L

Product Description

The Eaton FD3020L Series C complete molded case circuit breaker is an F-frame, three-pole breaker with a 20A amperage rating. Operating at 600 Vac and 250 Vdc, it features fixed thermal and magnetic trip types. Suitable for line and load applications, with a frequency of 50/60 Hz.

• Fixed thermal, fixed magnetic trip type
• Interrupt rating: 35 kAIC at 480 Vac, 65 kAIC at 240 Vac
• Suitable for line and load applications

Product Highlights

The Eaton FD3020L circuit breaker provides reliable circuit protection in a compact design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FD3020L

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: FD3020L
• UPC: 786679305638
• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 4.13 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 20 A
• Voltage rating: 600 Vac, 250 Vdc
• Trip Type: T186
• Circuit breaker type: FD
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Terminals: Line and load
• Frame: F
• Frequency rating: 50/60 Hz
• Interrupt rating: 35 kAIC at 480 Vac 65 kAIC at 240 Vac
• Number of poles: Three-pole
• Manufacturer: Eaton Cutler-Hammer
• Pole: 3
• Amp: 20
• Volt: 600
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Feed-Thru
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 35kA@480V
• Frame Type: F Frame
• Dimensions (HxWxD): 6" x 4.13" x 3.38"
