Eaton FD3 1G DEV BX POWER (SIZE/QUANTITY/PACK/ANGLE) REPLACEMENT MPN

Product Description

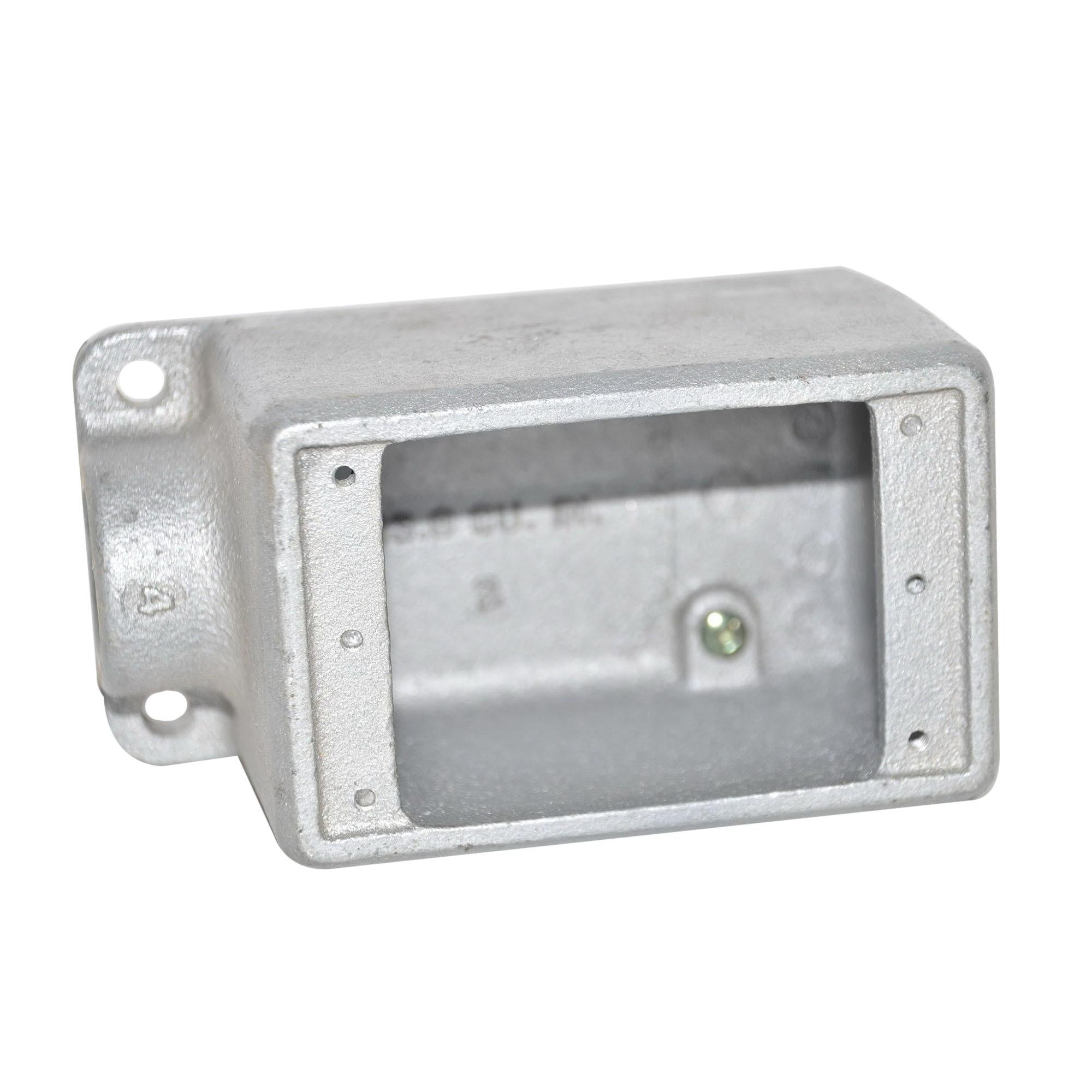

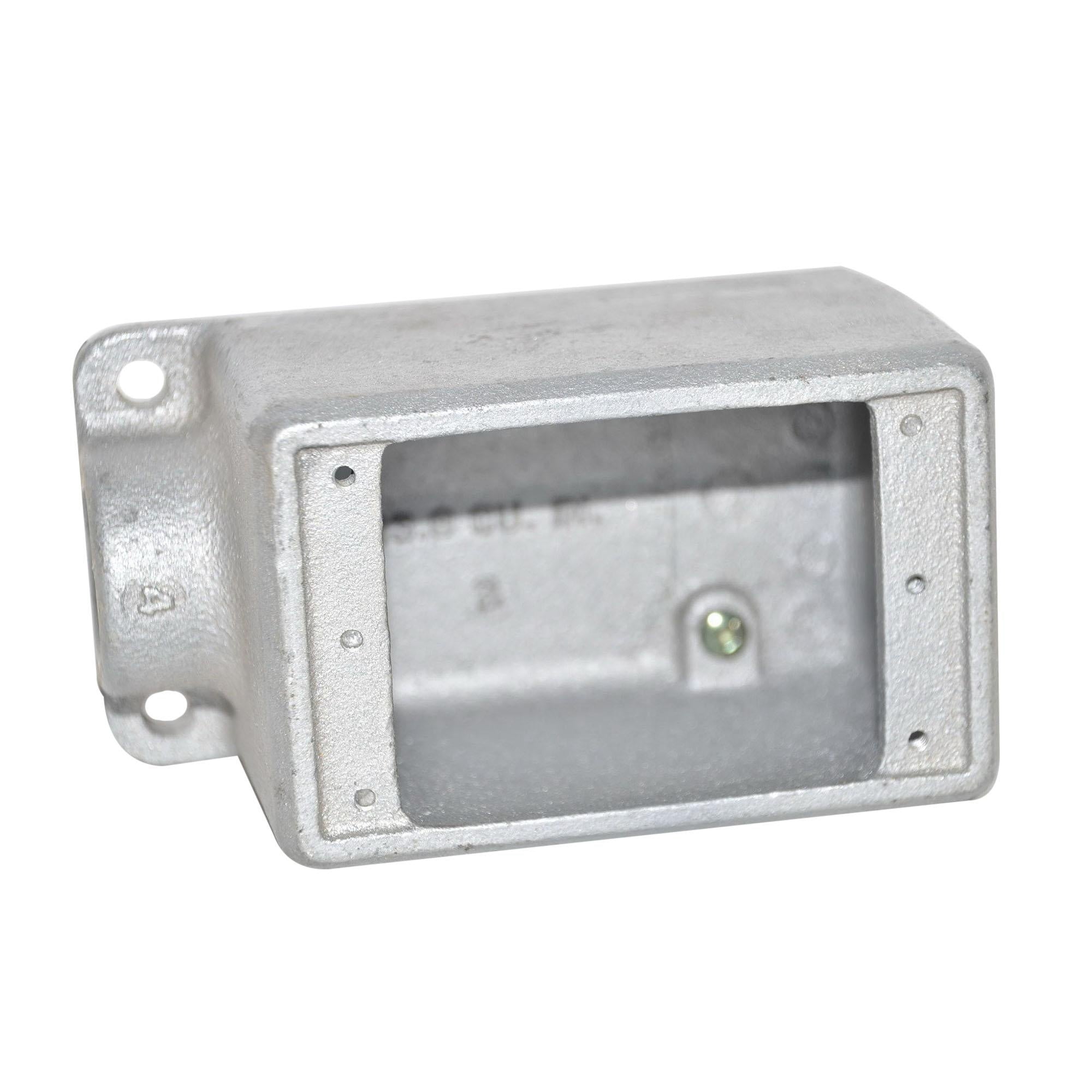

The Eaton FD3 is a single-gang deep device box designed for electrical applications. Constructed from feraloy iron alloy, this box offers durability and is suitable for use with threaded rigid and IMC conduits.

• Hub size of 1 inch for secure connections.
• Surface mountable for easy access to conductors.
• Meets UL and CSA standards for safety.

Product Highlights

This device box is equipped with a cover that extends for flush mounting, helping to conceal any rough plaster line. The FD3 is ideal for industrial and facility applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Material: Feraloy iron alloy
• Dimensions: 2-3/4 inches x 5-5/32 inches x 2-11/16 inches
• Weight: 7 lbs
• Cubic Capacity: 23 cubic inches
• Mounting: Surface
• Standards: UL 514; CSA C22.2; ANSI C33.84; W-C-5860
• Application: Suitable for industrial facilities and factories
• Cable Entry: One end hub
