Product Description

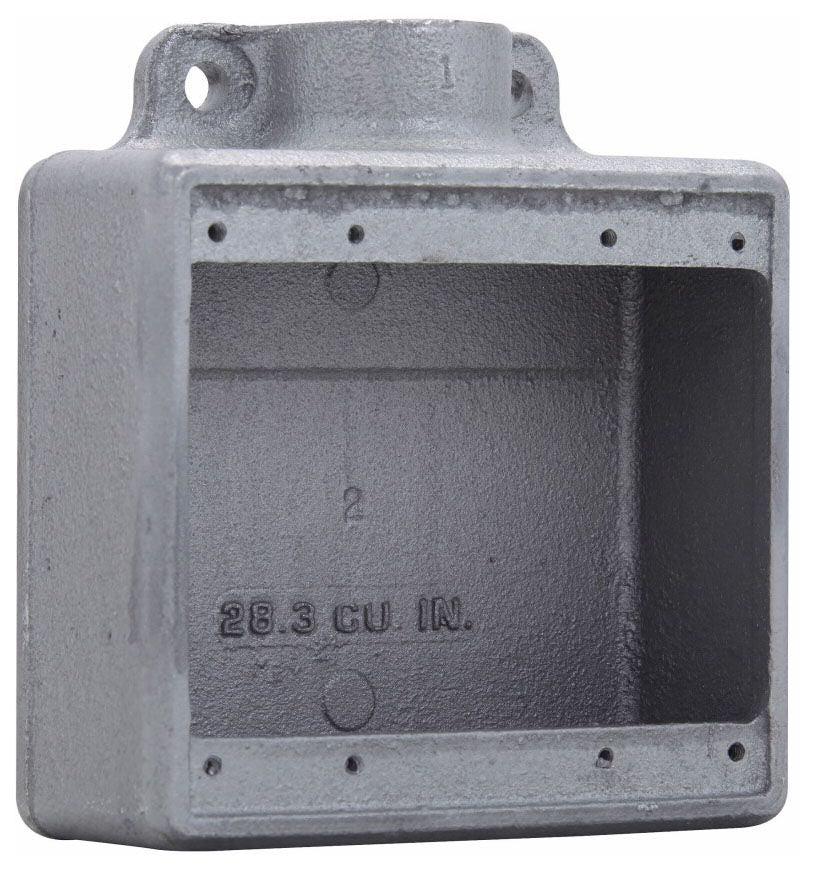

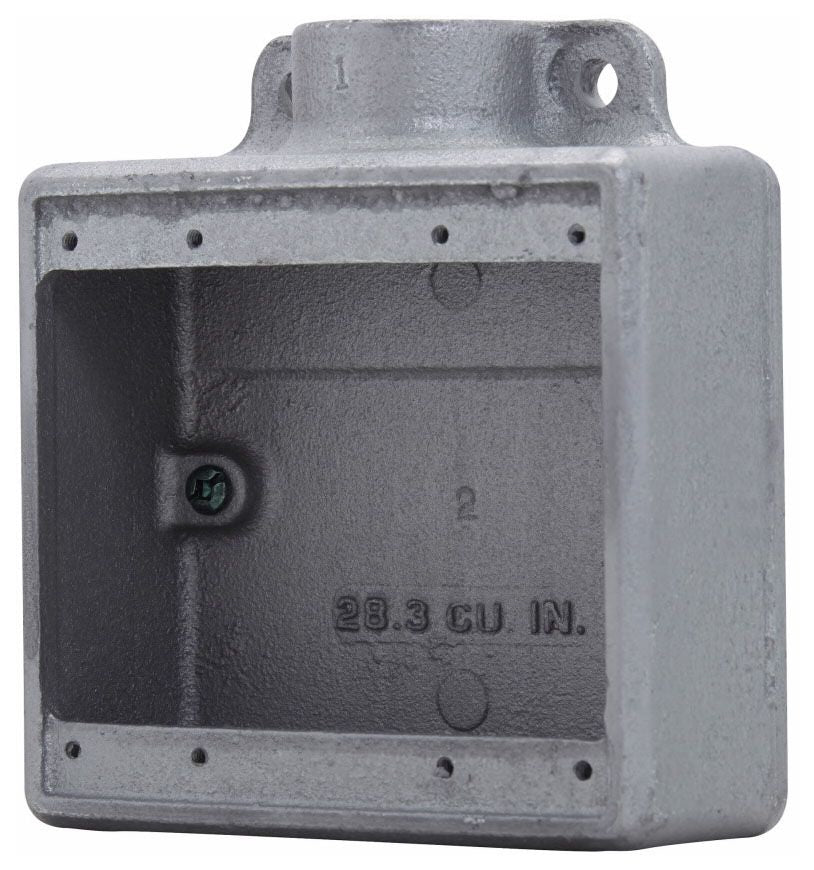

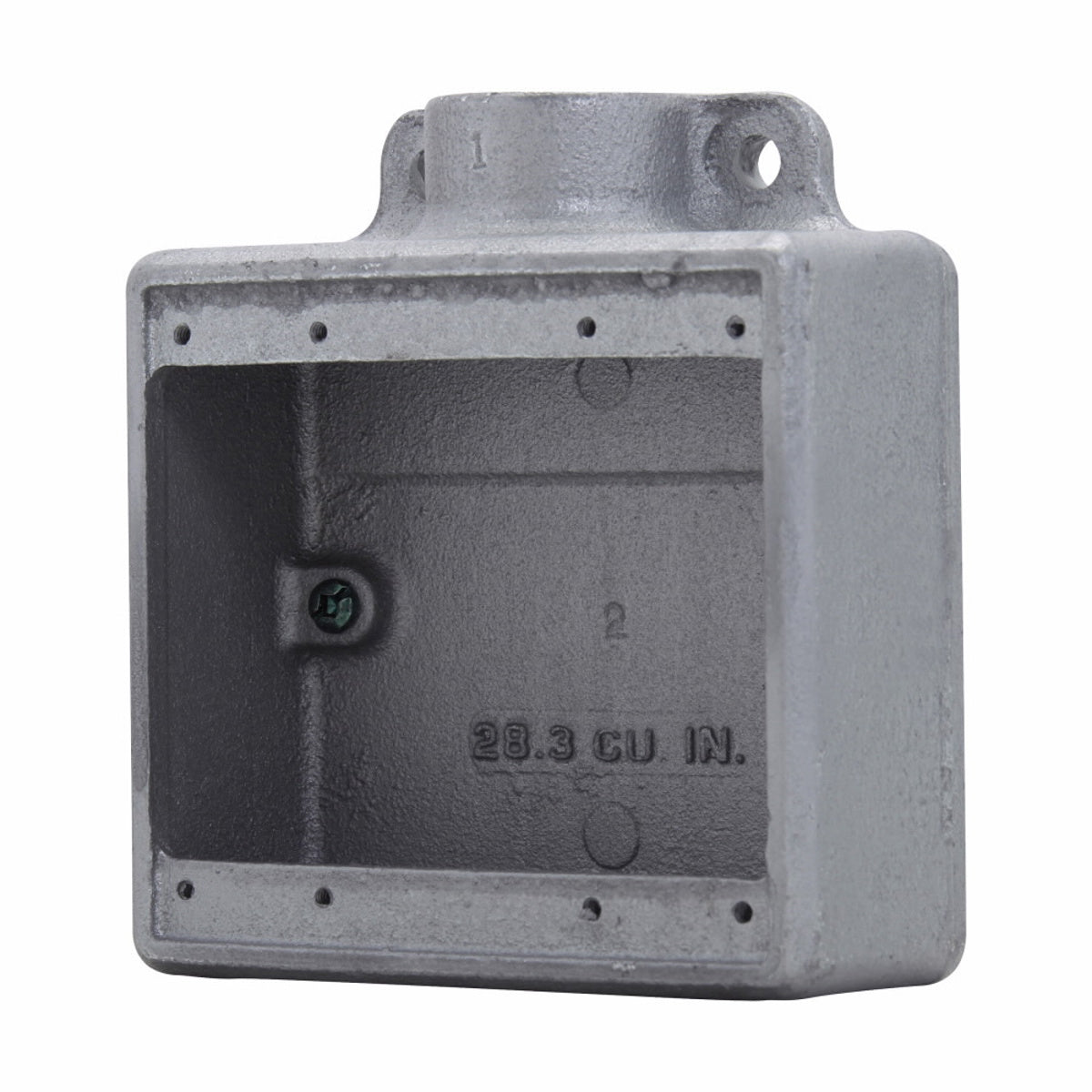

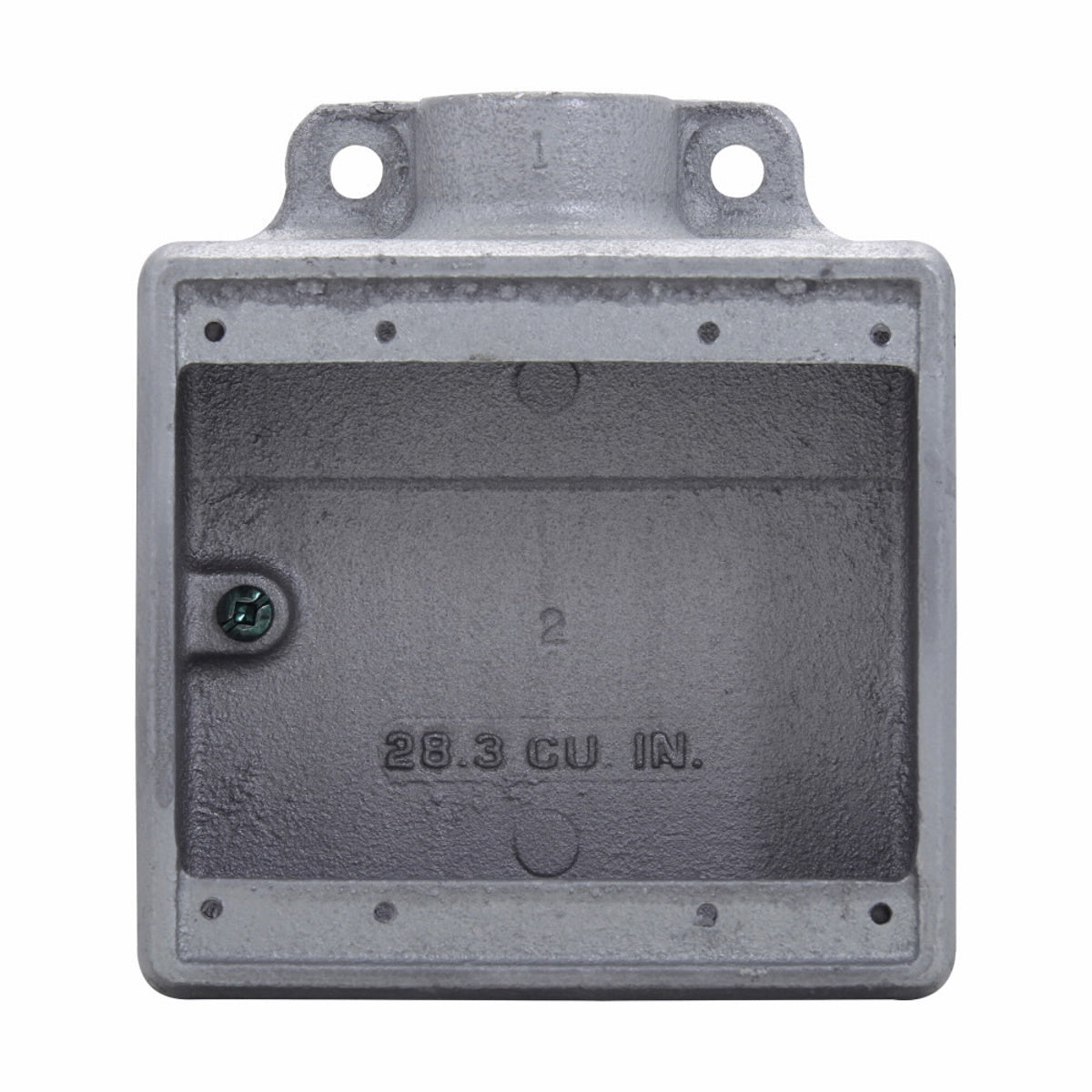

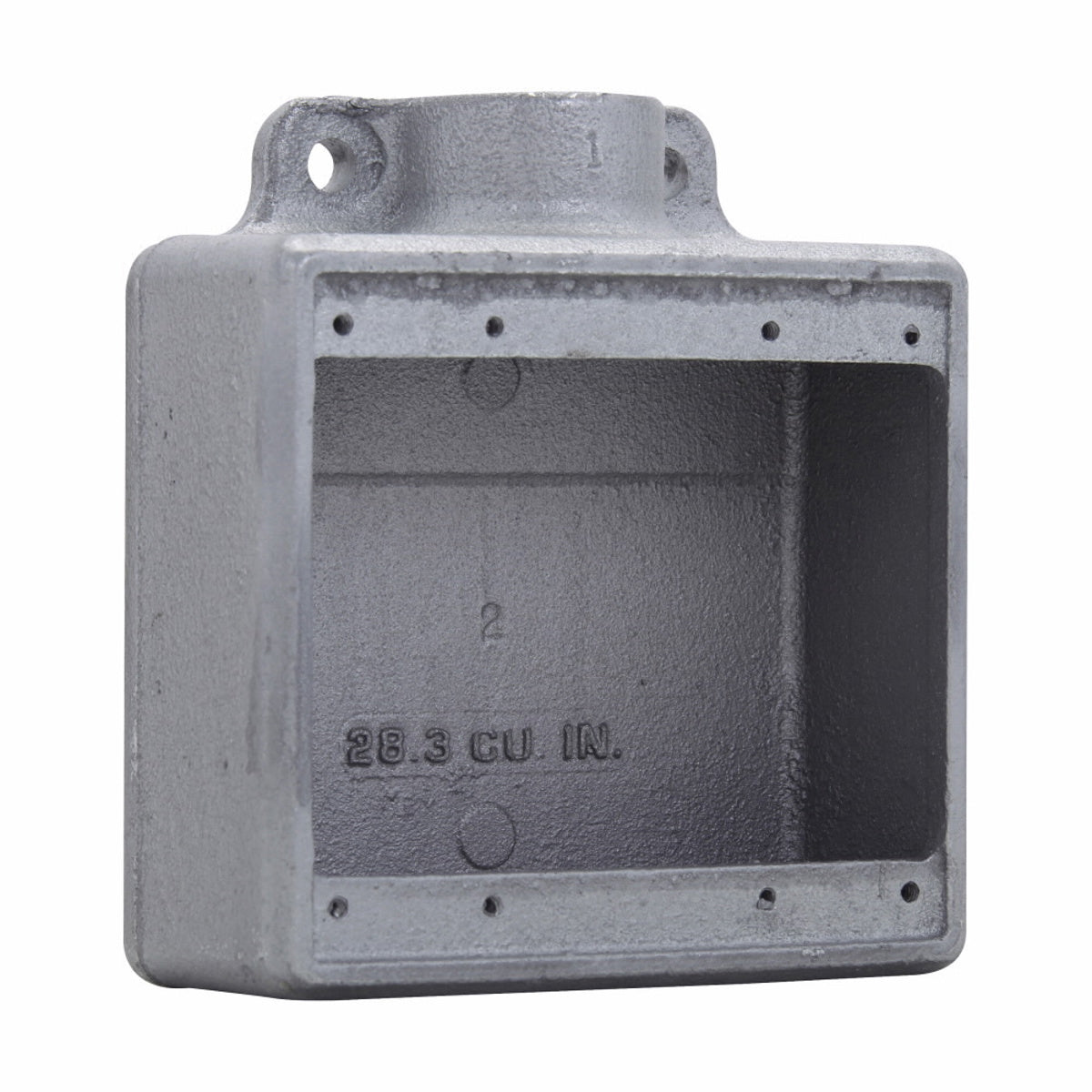

The Eaton FD22 is a Crouse-Hinds Condulet FD device box designed for conduit installations, providing two-gang capacity with a 3/4 in trade hub and deep wiring space. Constructed of Feraloy iron alloy with an aluminum acrylic painted and electro-galvanized finish, it is intended for surface mounting in ordinary/non-hazardous locations and is suitable for wet locations when used with gasketed covers.
- Deep two-gang device box with 3/4 in tapered threaded hub and 1 end cable entry
- Feraloy iron alloy construction with aluminum acrylic painted / electro-galvanized finish; includes tapered threaded hubs with integral bushing
- Surface mounting with mounting lug; suitable for wet locations when used with gasketed covers; internal green grounding screw
Product Highlights
Deep two-gang Feraloy iron alloy device box, 3/4 in trade hub, surface mount, suitable for conduit installations; UL and CSA standards compliance.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: FD22
-
Country of Origin: United States
Technical Specifications
-
MPN: FD22
-
Brand: Eaton
-
Series: Crouse-Hinds Condulet FD
-
Product Type: Device box
-
Configuration: Two-gang
-
Depth Type: Deep
-
Trade Size / Hub Size: 3/4 in
-
Material: Feraloy iron alloy
-
Finish: Aluminum acrylic painted / electro-galvanized
-
Mounting Type: Surface
-
Mounting Hardware: With mounting lug
-
Cable Entry: 1 end
-
Hub Features: Tapered threaded hubs with integral bushing
-
Includes: Internal green grounding screw
-
Dimensions (Width x Depth x Height): 4.625 in x 2.6875 in x 5.1875 in
-
Weight (manufacturer spec): 3.65 lb
-
Weight (measured/current): 3.85 lb
-
Suitable Locations: Ordinary/non-hazardous locations; suitable for wet locations when used with gasketed covers
-
Applicable Conduit: Threaded rigid/IMC conduit
-
Standards / Approvals: UL 514; CSA C22.2; Federal Specification W-C-5860; NEC/CEC (as listed in sources)
-
Country of Origin: United States
-
Application: Accommodate wiring devices, act as pull boxes, provide openings for taps and splices, conduit/cable installations
