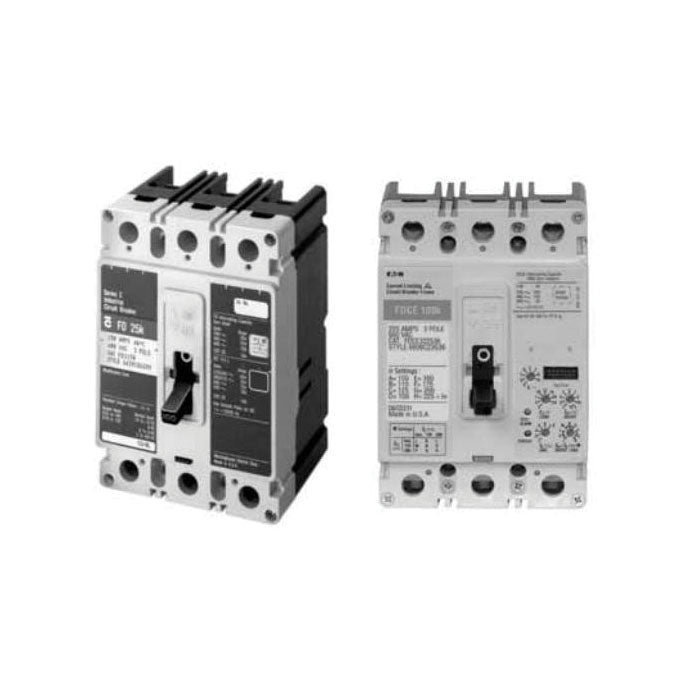

Eaton FD2020 Breaker Ckt Case Mld 600VAC/250VDC 20A

Product Description

The Eaton FD2020 is a molded case circuit breaker designed for reliable circuit protection. With a voltage rating of six hundred volts alternating current and two hundred fifty volts direct current, this breaker has a current capacity of twenty amps. The product features two poles and is suitable for both instantaneous and long time trip settings. The Eaton FD2020 is ideal for various applications, including panelboards, switchboards, and motor control centers.

• Voltage Rating: Six hundred VAC/Two hundred fifty VDC
• Amperage Rating: Twenty A
• Interrupt Rating: Twenty-five kA

Product Highlights

This circuit breaker meets North American standards and has been in use for over twenty years, ensuring proven user acceptance.

Product Information

Standard Information

• Manufacturer: Eaton
• Model: FD2020

Technical Specifications

• Type: FD
• Frame Size: F
• Phase: Single
• Current Rating: Twenty A
• Voltage Rating: Six hundred VAC/Two hundred fifty VDC
• Interrupt Rating: Twenty-five kA
• Frequency Rating: Fifty/Sixty Hz
• Number of Poles: Two
• Size: Six inches H x two and three-fourths inches W x three and three-eighths inches D
