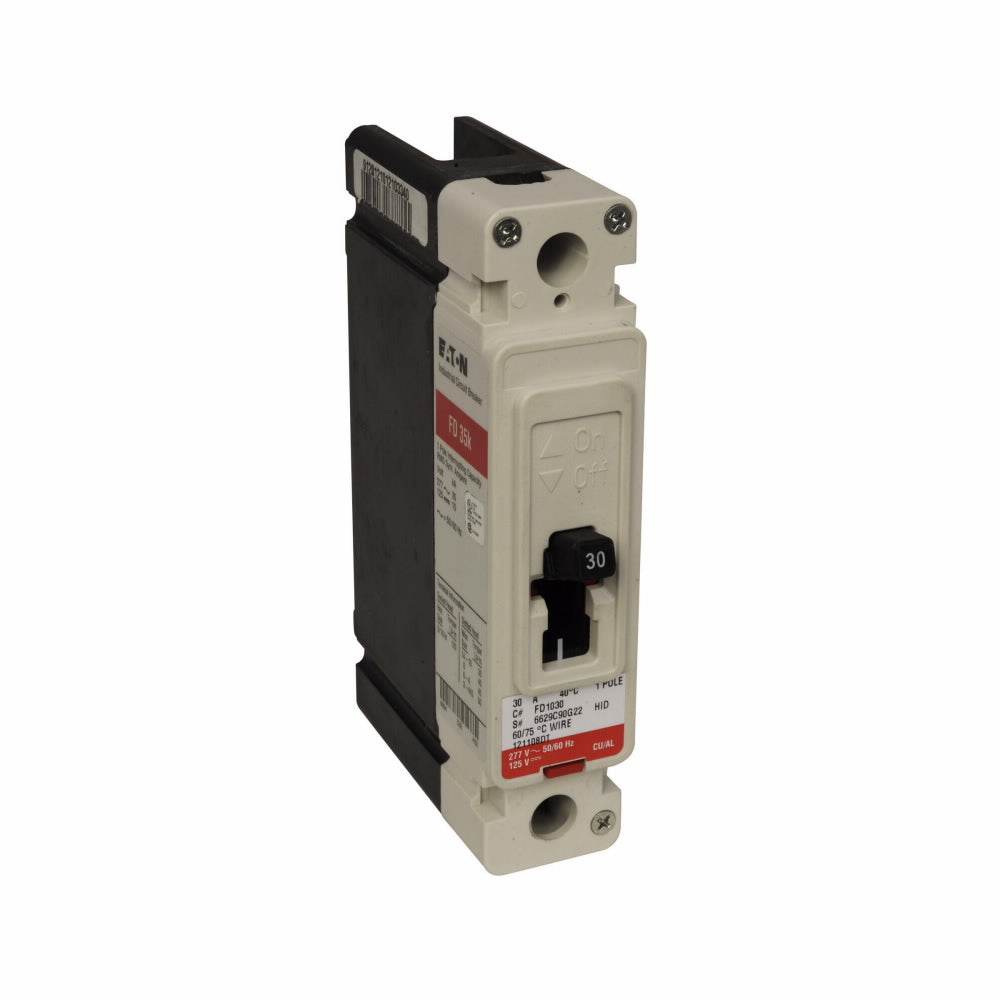

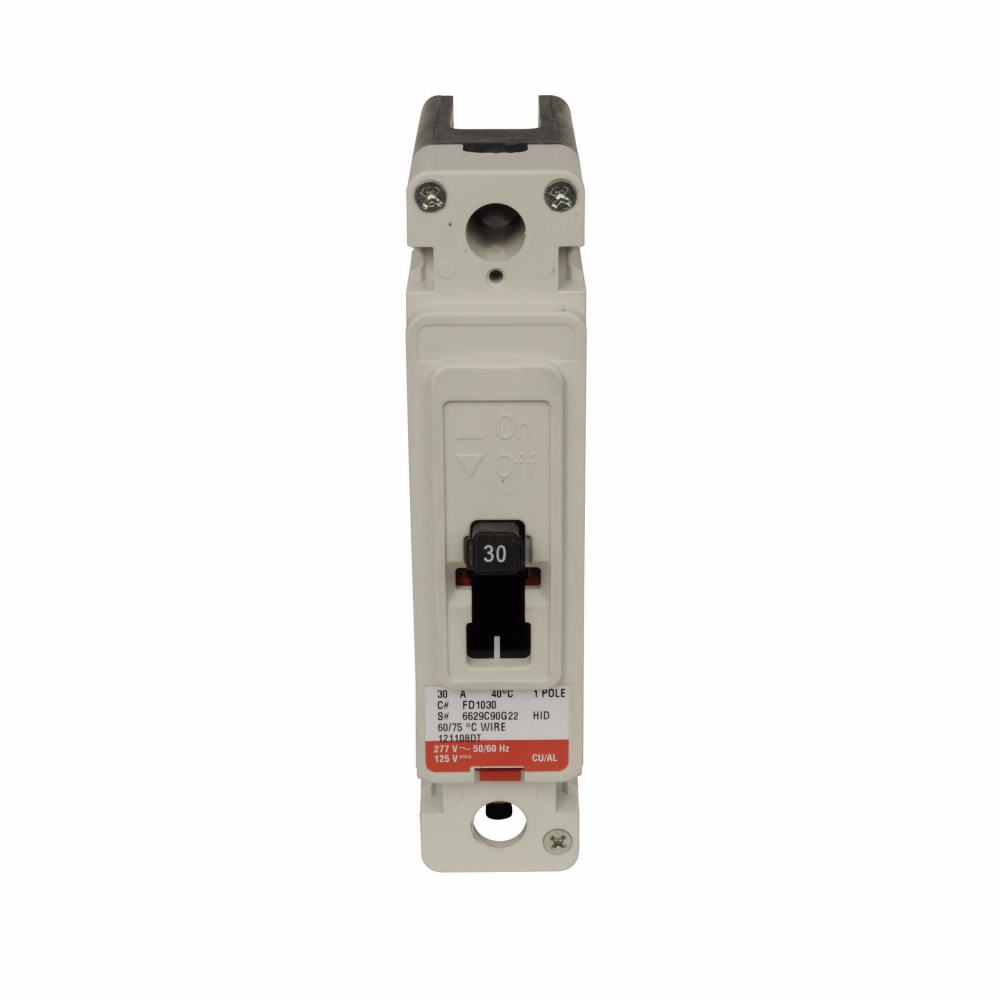

Eaton FD1030 Electrical FD1030 Series C F Frame Molded Case Circuit Breaker

Product Description

The Eaton FD1030 is a molded case circuit breaker designed for various applications including panelboards, switchboards, motor control centers, and busway systems. This single-pole breaker is rated for thirty amps and can handle voltages of up to three hundred forty-seven volts alternating current or one hundred twenty-five volts direct current. It features fixed thermal and magnetic trip types, ensuring reliable protection against overloads and short circuits.

• Type: Molded case circuit breaker
• Voltage Rating: 347 Vac, 125 Vdc
• Current Rating: 30 A

Product Highlights

This breaker integrates efficient circuit protection methodologies suitable for critical electrical assemblies and EOEM applications. Its compact dimensions accommodate panel mounting and align with standard industry specifications.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: FD1030

Technical Specifications

• Frame: F
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 35 kAIC at 277 Vac | 18 kAIC at 347 Vac
• Number of Poles: 1
• Dimensions: 3.38 in L x 1.38 in W x 6 in H
• Country of Origin: Dominican Republic
• Standards/Approvals: UL Listed
