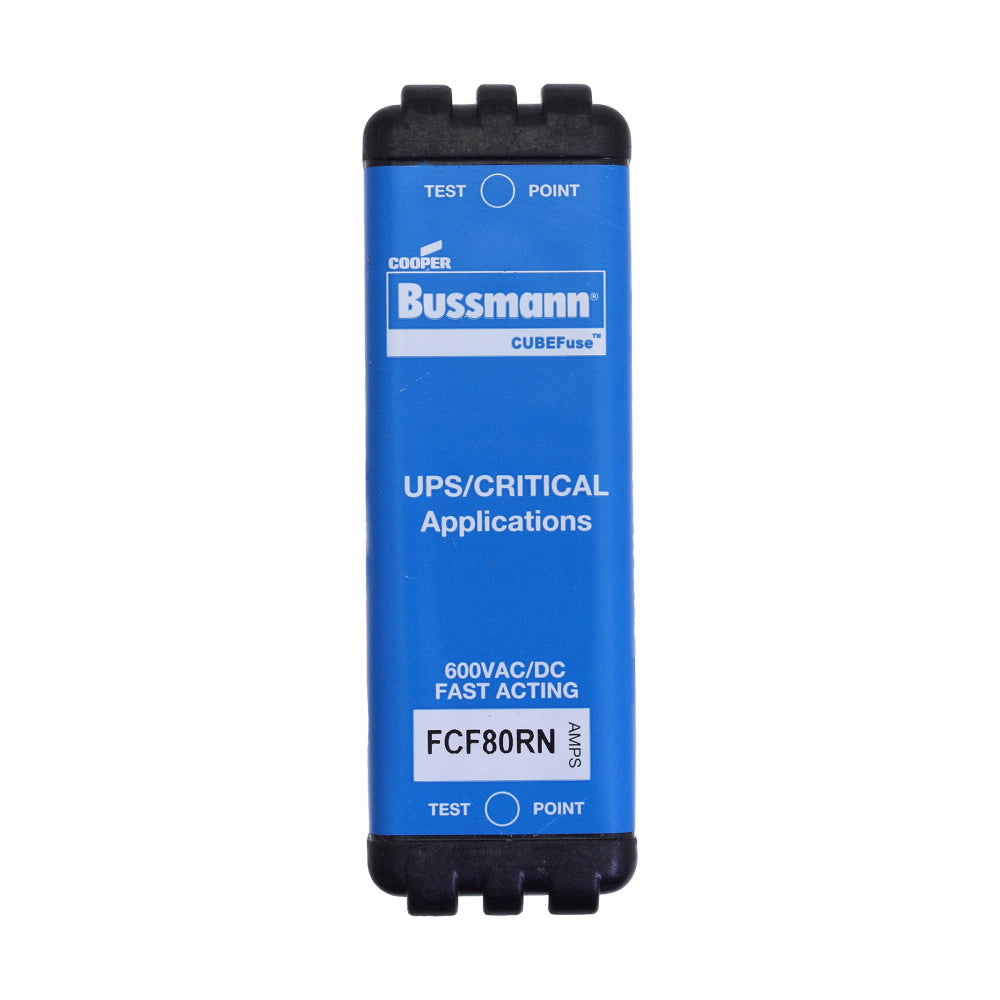

Eaton FCF80RN Bus Fast Acting Cubefuse 80A Non-Indication

Product Description

Eaton FCF80RN is a fast acting non-indicating cartridge fuse designed for high-performance applications. This fuse has an amperage rating of eighty amps and operates at six hundred volts AC or DC. It supports a fifty to two hundred kiloamp interrupt rating, making it suitable for various commercial and industrial uses.

• Blade terminal for secure mounting
• Constructed from glass-filled polyethersulfone
• Designed for 50/60 Hz frequency

Product Highlights

This cartridge fuse is designed for applications in commercial and institutional buildings, as well as power distribution systems.

Product Information

Standard Information

• Amperage Rating: 80 A
• Voltage Rating: 600 VAC/VDC

Technical Specifications

• Body Size: 3.01 in L x 1 in W
• Body Type: Square Blade
• Class: CF
• Frequency Rating: 50/60 Hz
• Material: Glass Filled Polyethersulfone
• Mounting Type: Holder
• Response Time: 8 min at 200%
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL Listed
• Terminal Type: Blade
