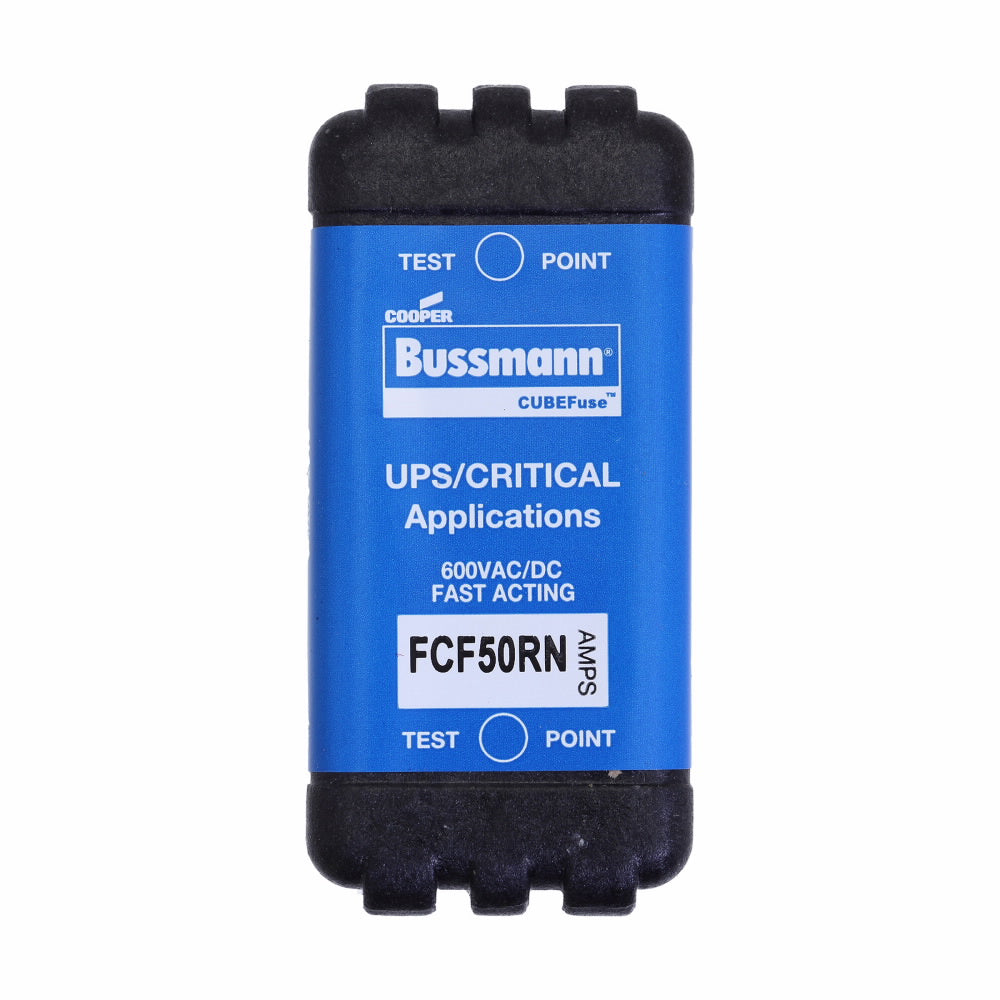

Eaton FCF50RN Bus Fast Acting Cube Fuse 50A Non-Indication

Product Description

Eaton FCF50RN is a Bus Fast Acting Cube Fuse. This fuse operates at 50 amperes and is designed for low voltage applications, capable of handling 600 VAC/VDC. It features a fast acting construction that limits current effectively to protect circuits from overloads. The fuse supports a high interrupt rating, making it suitable for various commercial and industrial applications.

• Fast acting current limiting fuse
• 600 VAC/VDC voltage rating
• 50 amps with a 50/300 kA interrupt rating

Product Highlights

This fuse provides reliable protection for electrical systems, ensuring safety and efficiency in power distribution.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171236252

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 VAC/VDC
• Body Size: 2.13 in L x 1 in W
• Body Type: Rectangular
• Class: CF
• Indicating Non Indicating: Non-Indicating
• Manufacturer Part Number: FCF50RN
• Material: Glass Filled Polyethersulfone
• Mounting Type: Through Hole
• Response Time: 6 min at 200%
• Standards/Approvals: CE Certified | CSA 1422-02/File No. 53787 | RoHS Compliant | UL File No. E4273 | UL Guide JDDZ
• Terminal Type: Blade
• Type: Fast Acting Current Limiting Finger Safe Low Voltage
• Application: Commercial and Industrial Applications, UPS, Power Distribution and Control
