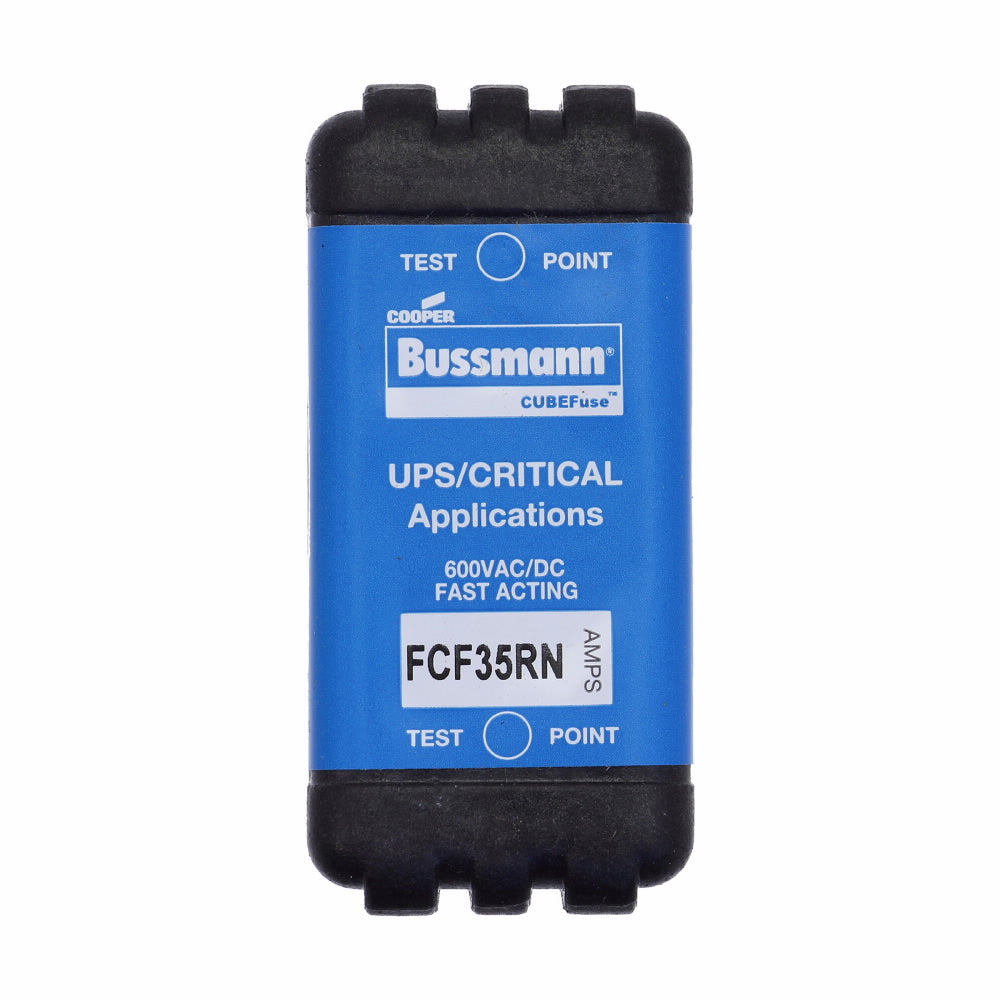

Eaton FCF35RN BUS FAST ACTING CUBEFUSE 35A NON-INDICATION

Product Description

The Eaton FCF35RN is a Bussmann Fast Acting Non-Indicating Cartridge Fuse designed for various applications. This fuse has an amperage rating of thirty-five amps and operates at six hundred VAC or VDC. It features a square blade body type and is rated for a fifty to three hundred kiloamp interrupt capacity.

• Suitable for commercial and institutional power distribution
• Body size of two point thirteen inches length and one inch width
• Class CF fuse for reliable circuit protection

Product Highlights

This product provides a small footprint compared to traditional fuses, allowing for space-saving installations while maintaining high interrupting ratings. Its fast response time contributes to equipment safety.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: FCF35RN

Technical Specifications

• Amperage Rating: 35 A
• Voltage Rating: 600 VAC/VDC
• Body Size: 2.13 in L x 1 in W
• Class: CF
• Body Type: Square Blade
• Material: Glass Filled Polyethersulfone
• Response Time: 6 min at 200%
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL Listed
