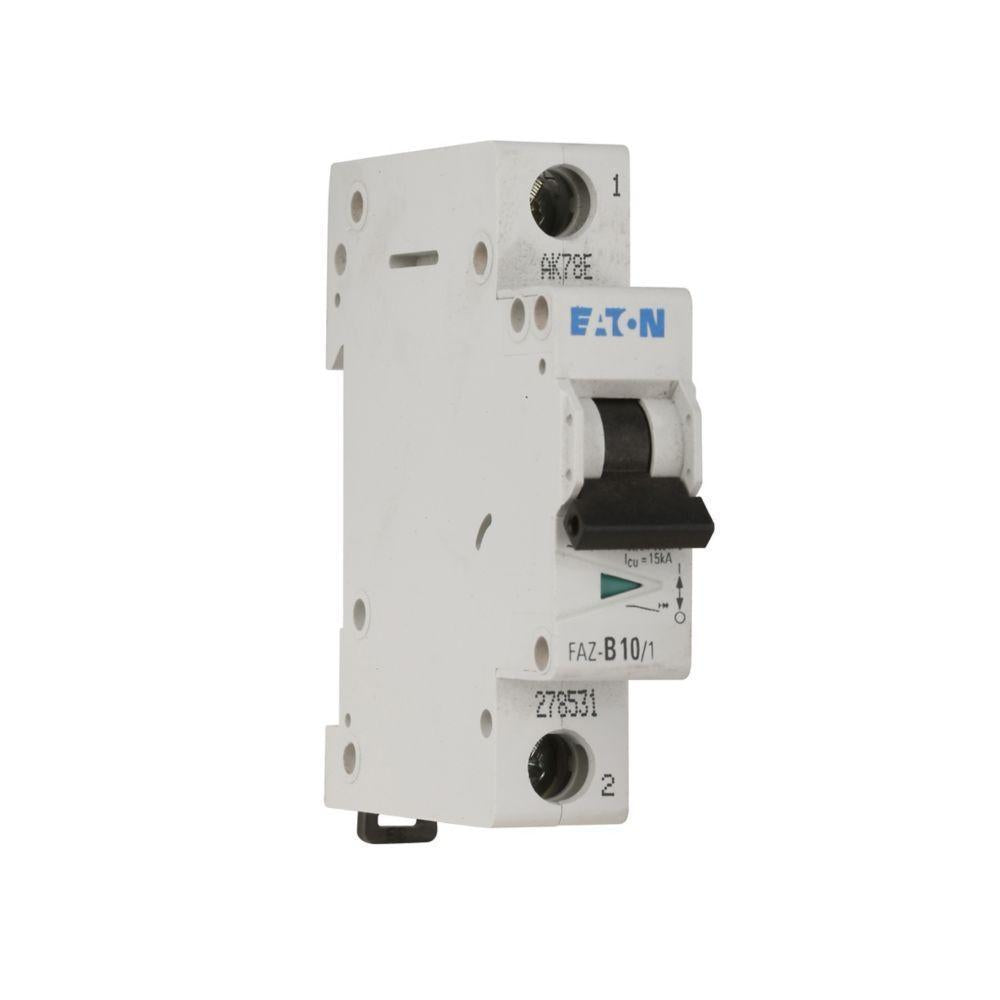

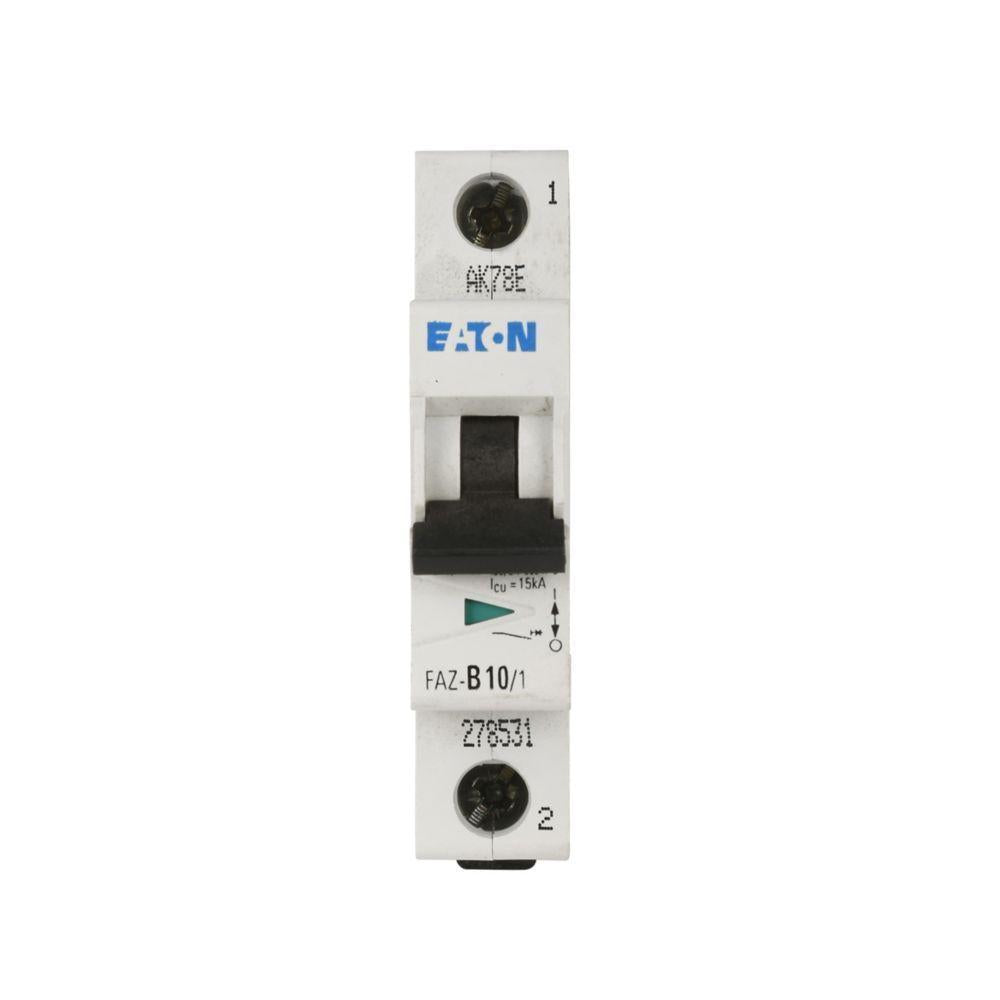

Eaton FAZ-C8/1-NA-SP FAZ Branch Protector 8 A

Product Description

The EATON FAZ-C8/1-NA-SP is a DIN-rail miniature circuit breaker designed for feeder and branch circuit protection. It complies with UL 489 and features a current limiting design for fast short-circuit interruption. Suitable for applications with medium inrush startup currents, it provides protection for small transformers and pilot devices.

• Current limiting design reduces let-through energy during short-circuits.
• Provides thermal magnetic over current protection.
• Features a color-coded red/green indicator for visual status indication.

Product Highlights

This miniature circuit breaker offers reliable circuit protection with easy installation and clear status indication.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C8/1-NA-SP
• Country of Origin: Mexico

Technical Specifications

• Actuator Type: Lever
• Enclosure Type: IP20
• Frequency Rating: 50/60 Hz
• Material: Nylon
• Mounting Type: DIN Rail
• Series: FAZ
• Temperature Rating: -40 to 75 deg C
• Type: Standard Current Limiting
• Wire Size: 18 to 6 AWG
• Voltage Rating: 277/480 VAC
• Amperage Rating: 8 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Trip Type: 5-10X/Thermal Magnetic
• Product Name: Eaton FAZ branch protector
• Catalog Number: FAZ-C8/1-NA-SP
• Product Length/Depth: 0.7 in
• Product Height: 4.13 in
• Product Width: 2.97 in
• Certifications: CSA Std. C22.2 No. 235 UL 489
• Catalog Notes: Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices. Single packaging of single-pole curves B, C and D for select amperages only.
• Product Type: Branch protector
• Terminals: Screw
• Circuit protection: C curve
• Application: Branch Circuit
• Special features: Single package
• Brand: Eaton - Cutler Hammer
• Characteristic: C Curve
• Current Rating: 8 A
• DIN Rail Mount: DIN Rail Mount
• Standards: UL 489
• Thermal/Magnetic: Thermal/Magnetic
• Voltage Rating - DC: 48 V
• Breaker Type: Thermal Magnetic
• Approval Agency: ABS, CSA C22.2 No 5, UL489, VDE
• Current Type: AC
• Model: FAZ-c8/1 NA SP
• Features: Eaton Quality
• Country of Origin: Mexico
• Illumination: None
