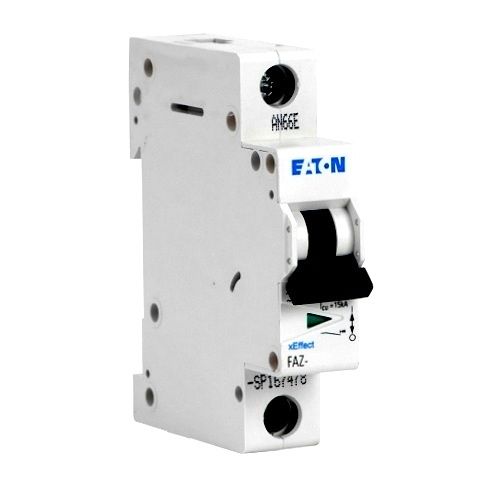

Eaton FAZ-C7/1-SP supplementary protector 7 A

Product Description

The Eaton FAZ-C7/1-SP is a supplementary protector designed as a UL 1077 industrial miniature circuit breaker. Suitable for applications where medium levels of inrush current are expected. It features standard terminals and a C curve for circuit protection.

• Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
• Single packaging of single-pole curves B, C and D for select amperages only.
• Single package

Product Highlights

The Eaton FAZ supplementary protector is ideal for industrial applications needing protection from medium inrush currents.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C7/1-SP

Technical Specifications

• Product Name: Eaton FAZ supplementary protector
• Catalog Number: FAZ-C7/1-SP
• EAN: 4015081639762
• Product Length/Depth: 0.69 in
• Product Height: 0.75 in
• Product Width: 3 in
• Certifications: IEC 60947-2 CSA Std. C22.2 No.235 UL 1077
• Product Type: Supplementary protector
• Number of poles: Single-pole
• Terminals: Standard
• Type: UL 1077 Industrial miniature circuit breaker - supplementary protector
• Amperage Rating: 7 A
• Circuit protection: C curve
• Frequency rating: 50-60 Hz
• Interrupt rating: 15 kAIC
• Trip Type: 5-10X /n
• Voltage rating: 277V
• Application: Suitable for applications where medium levels of inrush current are expected
• Special features: Single package
• Manufacturer: Eaton
• Voltage Type: AC
• Frame Type: FAZ
• UPC: 15081639766
• Voltage Rating - DC: 48 V
• Packaging: Bulk
• Actuator Type: Lever
• Part Status: Active
• Mounting Type: DIN Rail
• Illumination: None
• Breaker Type: Thermal Magnetic
• Approval Agency: ABS, CCC, CSA C22.2 No 235, IEC 60947-2, UL1077, VDE
