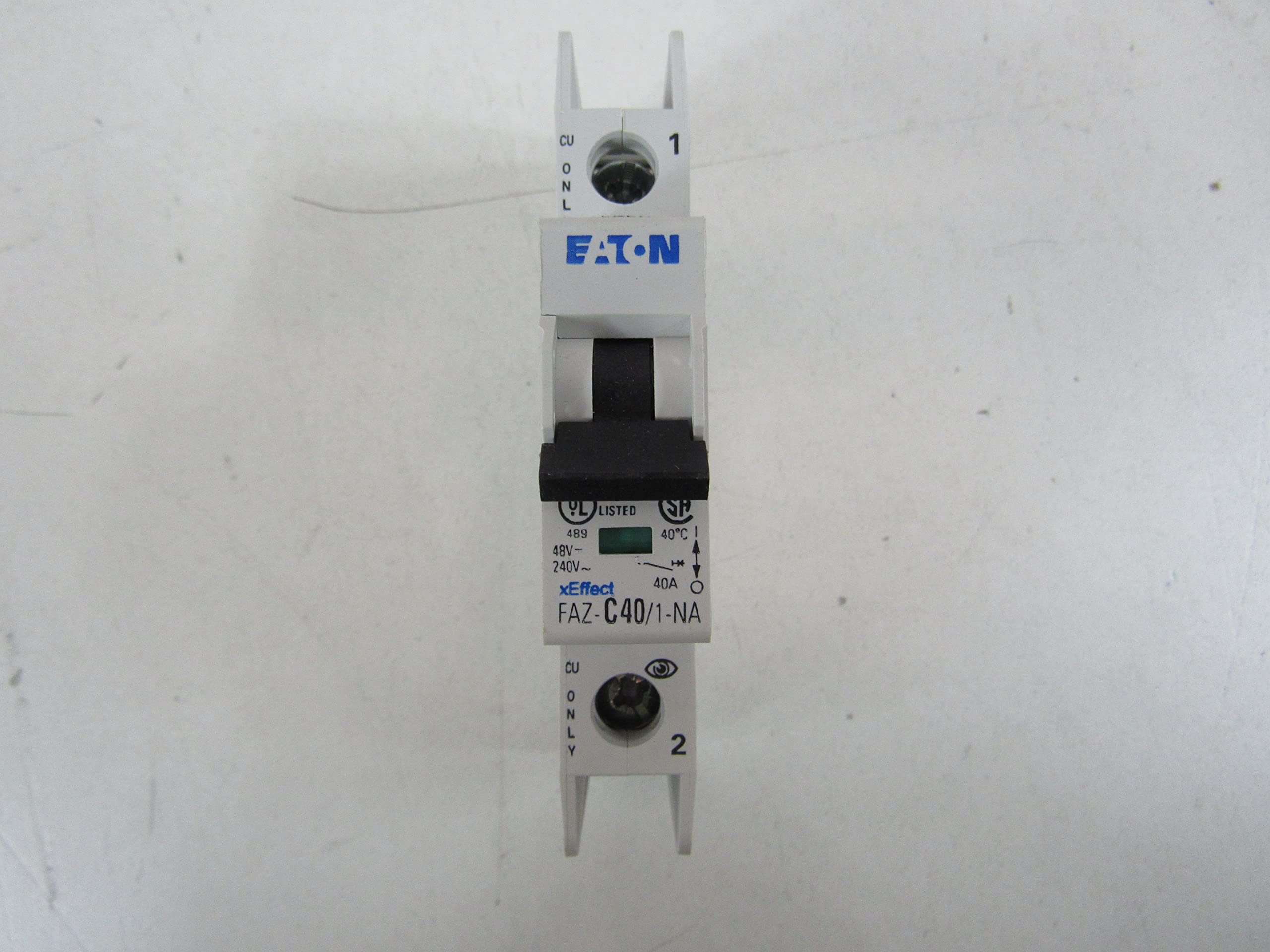

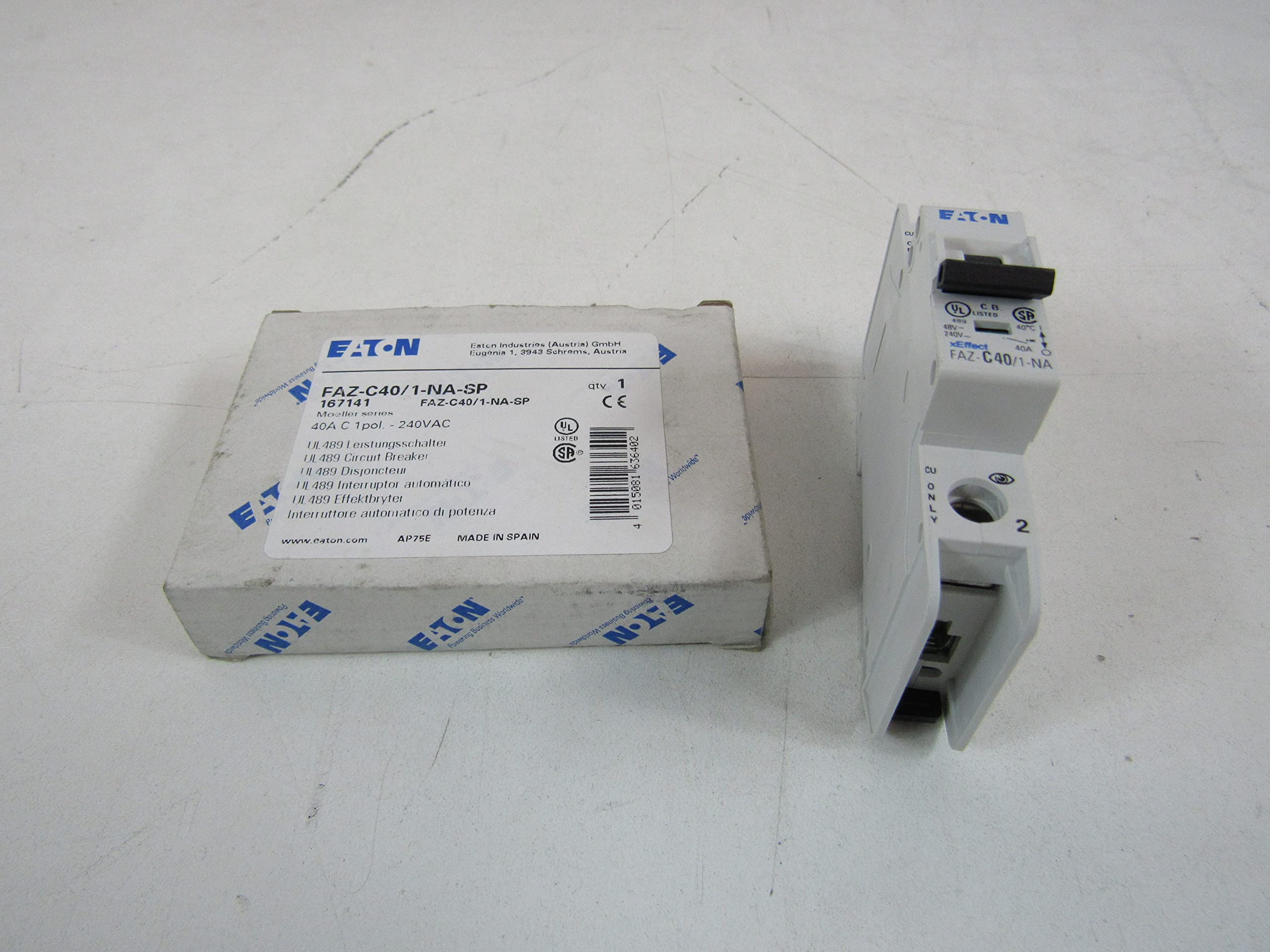

Eaton FAZ-C40/1-NA-SP FAZ 40A, 1P, 240V AC, 48V DC, C-Curve, UL489

Product Description

The Eaton FAZ-C40/1-NA-SP is a 40A, 1-Pole, FAZ Series Din Rail Mount Circuit Breaker, designed for 240V AC and 48V DC applications with a 10 kAIC rating. It features a C Curve, with a 5 - 10X In Current Rating and is UL 489 certified. Suitable for applications where medium levels of inrush current are expected.

• 40A Amperage
• 240V AC, 48V DC Voltage
• Din Rail Mount

Product Highlights

The Eaton FAZ series circuit breaker provides reliable circuit protection with a compact design and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C40/1-NA-SP

Technical Specifications

• Amperage: 40A
• Poles: 1P
• Voltage AC: 240V
• Voltage DC: 48V
• kAIC: 10 kAIC
• Curve: C-Curve
• UL: UL489
• Series: FAZ Series
• Mount: Din Rail
• Product Name: Eaton FAZ branch protector
• Catalog Number: FAZ-C40/1-NA-SP
• EAN: 4015081636402
• Product Length/Depth: 0.7 in
• Product Height: 4.13 in
• Product Width: 2.97 in
• Product Type: Branch protector
• Number of poles: Single-pole
• Terminals: Standard terminals
• Type: UL 489 Industrial miniature circuit breaker - supplementary protector
• Amperage Rating: 40 A
• Circuit protection: C curve
• Frequency rating: 50-60 Hz
• Interrupt rating: 10 kAIC
• Trip Type: 5-10X /n
• Voltage rating: 277V
• Application: Suitable for applications where medium levels of inrush current are expected
• Mounting Type: DIN Rail Mount
• UNSPSC Code: 39120000
• Actuator Type: Toggle
• Approvals: CSA Std. C22.2 No. 235, UL 489
• Standards: UL 489
• Current Rating: 40 A
• For Use With: Circuit breakers
• Characteristic: C Curve
