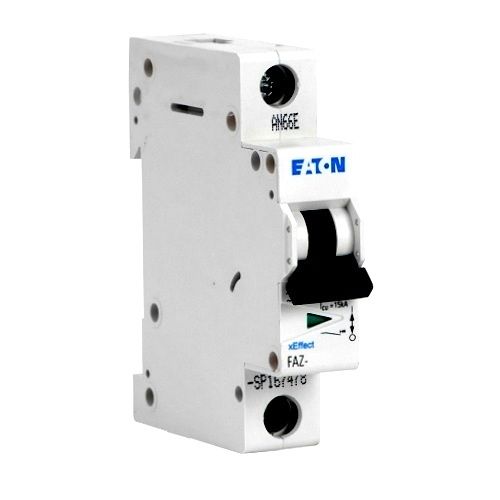

Eaton FAZ-C30/1-NA-SP Faz-Na Ul 489 Mcb 1P 30A C Curve

Product Description

The EATON FAZ-C30/1-NA-SP is a miniature circuit breaker from the FAZ-NA series, designed for branch service applications. This current limiting breaker operates at 277 V, 30 A, and 50/60 Hz, with a 10 kA interrupt rating and a 5-10X/C-Curve/Thermal Magnetic trip. It is suitable for branch circuit device protection.

• Current limiting design provides fast short-circuit interruption
• Suitable for branch circuit device protection
• Thermal magnetic over current protection

Product Highlights

This miniature circuit breaker provides reliable protection for personnel, installations, and plant equipment with its current limiting design and thermal magnetic over current protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C30/1-NA-SP

Technical Specifications

• Actuator Type: Toggle
• Amperage Rating: 30 A
• Application: Branch Circuit Device, Circuit Protection, Convenience Receptacle Circuits, Motor Control Circuits, HACR Internal/External Equipment, PLC I/O Points, Computers, Power Supplies, Control Instrumentation, Relays, UPS, Datacenters, IT Space, CI and Hyper Converged, Marine Vessels and Equipment, Generation - Renewable Energy, Alternative Energy, Conventional Energy, Power Conditioners and Industrial Applications
• Connection Type: Screw/Standard Terminal
• Frequency Rating: 50/60 Hz
• Manufacturer Part Number: FAZ-C30/1-NA-SP
• Mounting Type: DIN Rail
• Number of Poles: 1
• Series: FAZ-NA
• Standards/Approvals: ABS Approved|CEC Certified|CE Marking|CCC Certified|CSA C22.2 No. 5-02/235|NEC Certified|IEC 60947-2|UL 489 File No. E235139|VDE Certified
• Temperature Rating: 40 deg C
• Trip Range: 5 to 10X
• Trip Type: 5-10X/C-Curve/Thermal Magnetic
• Type: Current Limiting
• Voltage Rating: 277 V
• Interrupt rating: 10 kAIC
• Product Length/Depth: 0.7 in
• Product Height: 4.13 in
• Product Width: 2.97 in
• Certifications: CSA Std. C22.2 No. 235 UL 489
• Product Type: Branch protector
• Terminals: Screw
• Circuit protection: C curve
• Special features: Single package
• Wire Size: 18 to 6 AWG, 18 to 10 AWG
• Manufacturer: Eaton
• Voltage Type: AC
• Poles: 1
• Frame Type: FAZ
• Current Rating: 30 A
• Characteristic: C Curve
• Compliances: CE Marked
