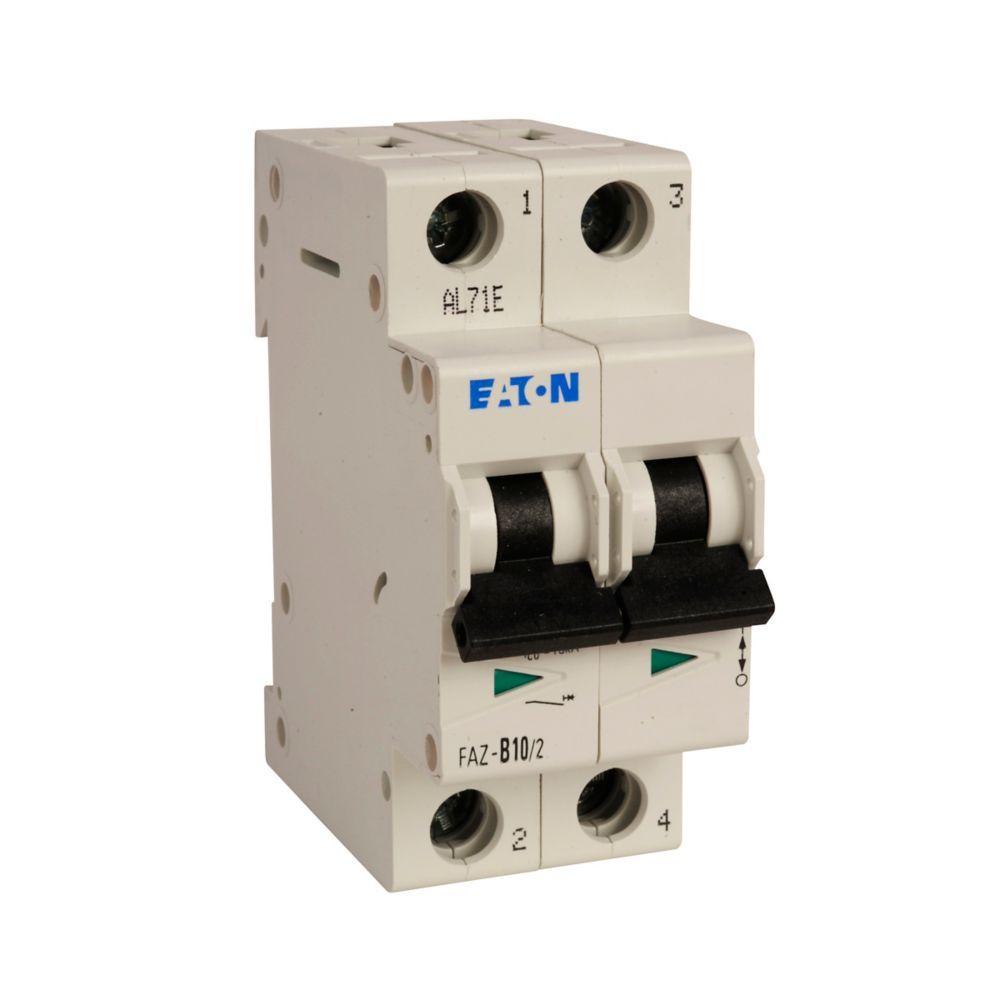

Eaton FAZ-C3/2 FAZ 3 A 2 Pole Miniature Circuit Breaker

Product Description

The EATON FAZ-C3/2 is a DIN rail mountable circuit breaker designed for control panel applications. It provides optimum product quality, tested reliability, and safety for personnel, installations, and plant protection. This supplementary protector is suitable for applications where medium levels of inrush current are expected.

• Current limiting design provides fast short-circuit interruption.
• Thermal magnetic over current protection.
• Trip-free design breaker can not be defeated by holding the handle in the On position.

Product Highlights

The EATON FAZ series miniature circuit breakers are current limiting and offer thermal-magnetic trip protection in a compact housing.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C3/2

Technical Specifications

• Connection Type: Line/Load Side Standard Terminal
• Enclosure Type: IP20
• Frequency Rating: 50/60 Hz
• Material: Nylon
• Mounting Type: DIN Rail
• Series: FAZ Series
• Temperature Rating: -40 to 167 deg F
• Wire Size: 18 to 4 AWG
• Voltage Rating: 480Y/277 VAC
• Amperage Rating: 3 A
• Interrupt Rating: 7.5 to 15 kA
• Number of Poles: 2
• Trip Type: 5-10X/C-Curve
• Product Name: Eaton FAZ supplementary protector
• Catalog Number: FAZ-C3/2
• EAN: 4015082787509
• Product Length/Depth: 1.38 in
• Product Height: 1.38 in
• Product Width: 1.5 in
• Certifications: CSA Std. C22.2 No.235 UL 1077 IEC 60947-2
• Catalog Notes: Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
• Product Type: Supplementary protector
• Terminals: Standard
• Type: UL 1077 Industrial miniature circuit breaker - supplementary protector
• Circuit protection: C curve
• AIC Rating: 10kA @ 480Y/277VAC, 10kA @ 96VDC
• Brand: Eaton / Cutler-Hammer
• Part Number: FAZ-C3/2-NA
• Amperage: 3A
• Voltage: 480Y/277VAC, 96VDC
• Poles: 2
• Phase: 1
• Mounting Style: DIN Rail
• Terminal Type: Box Lugs
• For Use With: DIN Rail Systems, Industrial Control Panels
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Curve: C
• Trip Adjustability: Fixed
• Wire Gauge: 18-6 AWG (1 wire), 18-10 AWG (2 wires)
• Max Wire: 6 AWG
• Min Wire: 18 AWG
• Available Options: Auxiliary Switch, Shunt Trip, Undervoltage Release, Lockout Attachment, Busbar System
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approval: ABS, CE, CSA, DNV, IEC, Lloyd's, RoHS, UL, VDE
• Temp Rating: -40C to 75C
• Construction Features: Current Limiting, HACR Rated, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator, RoHS Compliant
• SKU: FAZ-C3/2-NA-DC
• Branch protector: Eaton FAZ branch protector
• Voltage rating: 125 Vdc
• Application: Suitable for applications where medium levels of inrush current are expected
• Manufacturer Part Number: FAZ-C3/2-NA
• Manufacturer: Eaton - Cutler Hammer
• DIN Rail Mount: DIN Rail Mount
• UNSPSC Code: 39120000
• Unit of Measure: EA
• 277 V, 480 V: 277 V, 480 V
• Standard terminals: Standard terminals
• UPC Code: 4015081020379
• Actuator Type: Toggle
• Thermal/Magnetic: Thermal/Magnetic
• Datacenters - IT Space: CI and Hyper Converged, Generation - Conventional Energy - Conventional Energy, Generation - Renewable Energy - Alternative Energy, Marine Vessels and Equipment - Marine Vessels and Equipment - Other, Other: Datacenters - IT Space: CI and Hyper Converged, Generation - Conventional Energy - Conventional Energy, Generation - Renewable Energy - Alternative Energy, Marine Vessels and Equipment - Marine Vessels and Equipment - Other, Other
• Current Rating: 3 A
• Circuit Breakers: Circuit breakers
• Characteristic: C Curve
