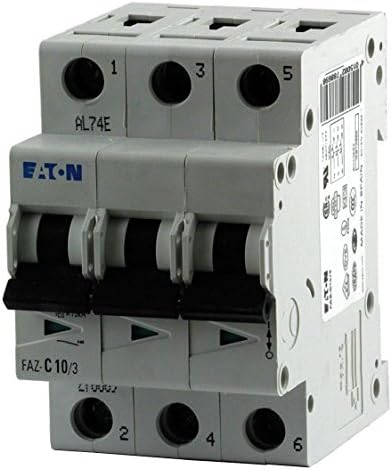

Eaton FAZ-C1/3-NA FAZ-NA UL 489 MCB 1A

Product Description

The Eaton FAZ-C1/3-NA is a branch protector, UL 489 industrial miniature circuit breaker and supplementary protector. Suitable for applications where medium levels of inrush current are expected. It features a 1A amperage, 10/14 kAIC interrupt rating, and a C curve.

• UL 489 Industrial miniature circuit breaker
• Supplementary protector
• Medium levels of inrush current are expected

Product Highlights

The Eaton FAZ-C1/3-NA circuit breaker provides premium protection for overheating wires, overloads, and short circuits.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C1/3-NA

Technical Specifications

• Type: Thermal/Magnetic
• Brand: Eaton
• Voltage: 277/480 Volt
• Amperage: 1 Amp
• Standard: CSA Std. C22.2 No. 235
• Trip Type: 5-10X/n, C-Curve
• Product UPC: 01508102114
• 12-Digit UPC: 015081021141
• Terminal Type: Standard Terminals
• Number of Poles: 3 Pole
• Interrupt Rating: 10, 14 kAIC
• Product Name: Eaton FAZ branch protector
• Catalog Number: FAZ-C1/3-NA
• EAN: 4015081021147
• Product Length/Depth: 2.1 in
• Product Height: 4.13 in
• Product Width: 2.97 in
• Certifications: CSA Std. C22.2 No. 235 UL 489
• Catalog Notes: Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
• Product Type: Branch protector
• Terminals: Screw
• Circuit protection: C curve
• Frequency rating: 50-60 Hz
• Voltage rating: 277/480V
• Application: Suitable for applications where medium levels of inrush current are expected
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Current Rating (Amps): 1A
• Manufacturer: Eaton Electrical
• Voltage Rating - AC: 415 V
• Series: FAZ-NA
• Voltage Rating - DC: 96 V
• Packaging: Bulk
• Actuator Type: Lever
• Part Status: Active
• Mounting Type: DIN Rail
• Illumination: None
• Breaker Type: Thermal Magnetic
• Approval Agency: ABS, CSA C22.2 No 5, UL489, VDE
• UNSPSC Code: 39120000
• Characteristic: C Curve
• Current Rating: 1 A
• Dimensions: 4.13 in H X 2.10 in L
• Manufacturer Part Number: FAZ-C1/3-NA
• Standards: UL 489
• Termination: screw
• Unit of Measure: EA
• UPC Code: 4015081021147
• Voltage Rating: 277/480 V
• Poles: 3
• Amps: 1
• Volts DC: 48
• Volts AC: 277, 480Y
• Mounting: DIN Rail
• Family / Style: FAZ-NA
• Interrupt Rating AC: 10 kA
• Number Of Poles: 3
