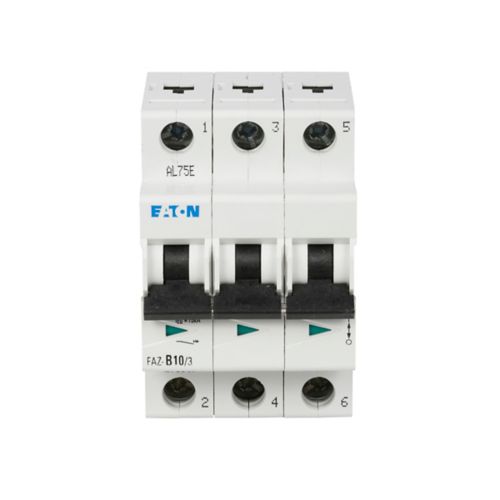

Eaton FAZ-C0.5/3-NA FAZ Branch Protector 0.5A

Product Description

The EATON FAZ-C0.5/3-NA is a FAZ branch protector, which is a UL 489 industrial miniature circuit breaker. This three-pole supplementary protector is suitable for applications where medium levels of inrush current are expected. It features screw terminals and a C curve for circuit protection.

• Suitable for medium inrush startup currents to protect small transformers and pilot devices.
• Features a visual trip indicator and a common trip mechanism for enhanced operational safety.
• Mounts onto standard DIN rail systems, ideal for high-density industrial control panels.

Product Highlights

The EATON FAZ-C0.5/3-NA branch protector provides precise thermal-magnetic protection for commercial applications. It has a 10kA interrupting rating at 480Y/277VAC.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C0.5/3-NA

Technical Specifications

• Product Name: Eaton FAZ branch protector
• Catalog Number: FAZ-C0.5/3-NA
• EAN: 4015081021130
• Product Length/Depth: 2.1 in
• Product Height: 4.13 in
• Product Width: 2.97 in
• Certifications: UL 489 CSA Std. C22.2 No. 235
• Catalog Notes: Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
• Product Type: Branch protector
• Number of poles: 3
• Terminals: Screw
• Type: UL 489 Industrial miniature circuit breaker - supplementary protector
• Amperage Rating: 0.5 A
• Circuit protection: C curve
• Frequency rating: 50-60 Hz
• Interrupt rating: 14 kAIC 10 kAIC
• Voltage rating: 277/480V
• Application: Suitable for applications where medium levels of inrush current are expected
• Secondary brand: Moeller
• Main function: Miniature Circuit Breaker (MCB)
• Product series / family name: xEffect
• Sub-range name: FAZ-NA-L
• Network frequency: 50/60 Hz
• Functions: Branch Miniature Circuit Breaker (MCB)
• Poles: 3
• Rated current: 0.5A
• Rated Voltage (DC): 48Vdc (UL; single pole + neutral) 96Vdc (UL; 2 poles in series)
• Rated voltage (AC): 240Vac (UL/CSA; multi-pole)
• Connection type: Screw-clamp
• Tripping curve: C
• Short circuit breaking rating: 10kA (UL489 / CSA 22.2 No. 5-02)
• Size in modules (1 module = 18mm): 3 Module(s)
• Mounting mode: DIN-rail
• Net Height (mm): 105 mm
• Net Width (mm): 53.1 mm
• Visual position indicator: contact position indicator red-green
• Mechanical durability (at no load): 20 000 operations
• Order code / Manufacturer SKU: 190643
• Manufacturer product status: Commercialized
• Compliant with standard(s): IEC60947-2 UL489 CSA C22.2 No. 5-02 CE BGV A3 OVE EN-6
• Current Rating (Amps): 500mA
• Manufacturer: Eaton Electrical
• Voltage Rating - AC: 480 V
• Series: FAZ-NA
• Voltage Rating - DC: 96 V
• Packaging: Bulk
• Actuator Type: Lever
• Part Status: Active
• Mounting Type: DIN Rail
• Illumination: None
• Breaker Type: Thermal Magnetic
• Approval Agency: ABS, CCC, CSA C22.2 No 235, UL489, VDE
• Brand: Eaton / Cutler-Hammer
• Part Number: FAZ-C0.5/3-NA
• Amperage: 0.5A
• Voltage: 240VAC, 480Y/277VAC, 96VDC
• Phase: 3
• AIC Rating: 10kA @ 240VAC, 10kA @ 480Y/277VAC, 10kA @ 96VDC
• Mounting Style: DIN Rail
• Terminal Type: Box Lugs
• For Use With: DIN Rail Systems, Industrial Control Panels
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 18-6 AWG
• Max Wire: 6 AWG
• Min Wire: 18 AWG
• Available Options: Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Lockout Attachment, Busbar System
• Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
• Approval: ABS, CE, CSA, DNV, IEC, Lloyd's, RoHS, UL, VDE
• Temp Rating: -25C to 75C
• Construction Features: Current Limiting, HACR Rated, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator, RoHS Compliant, Common Trip
