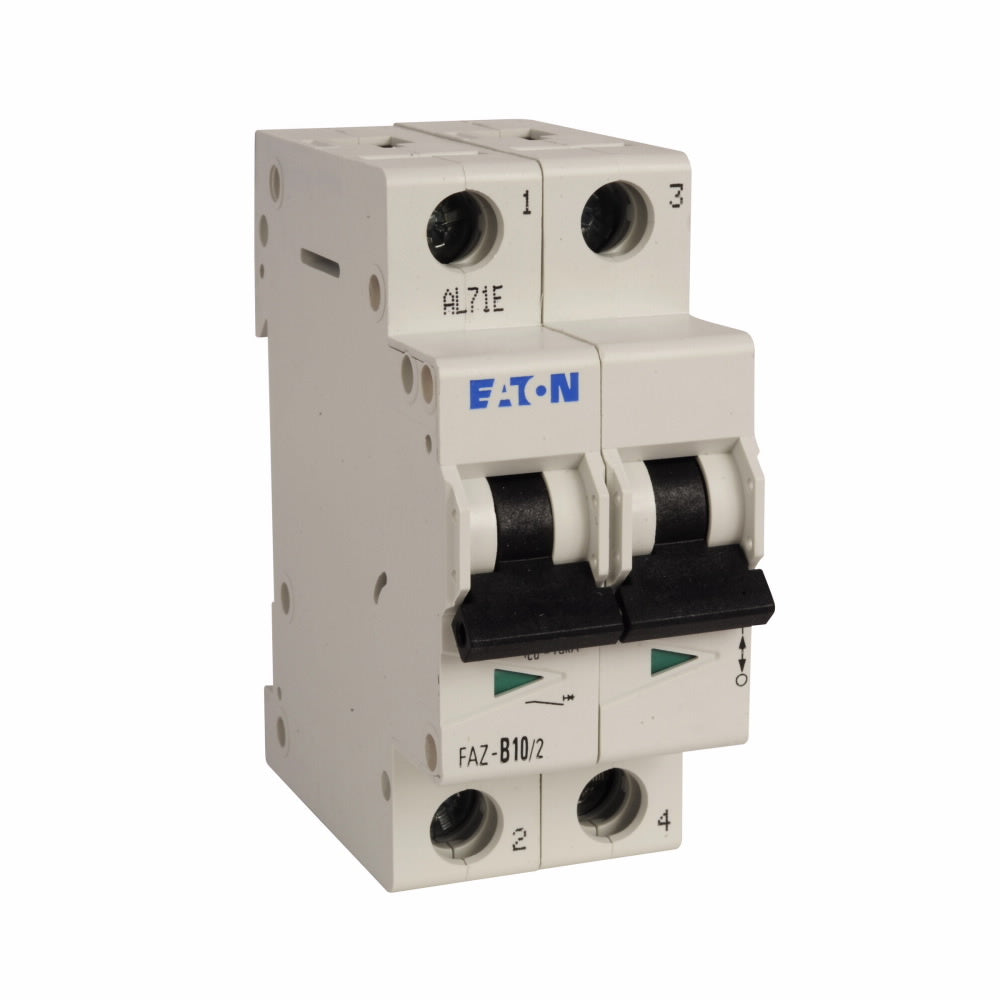

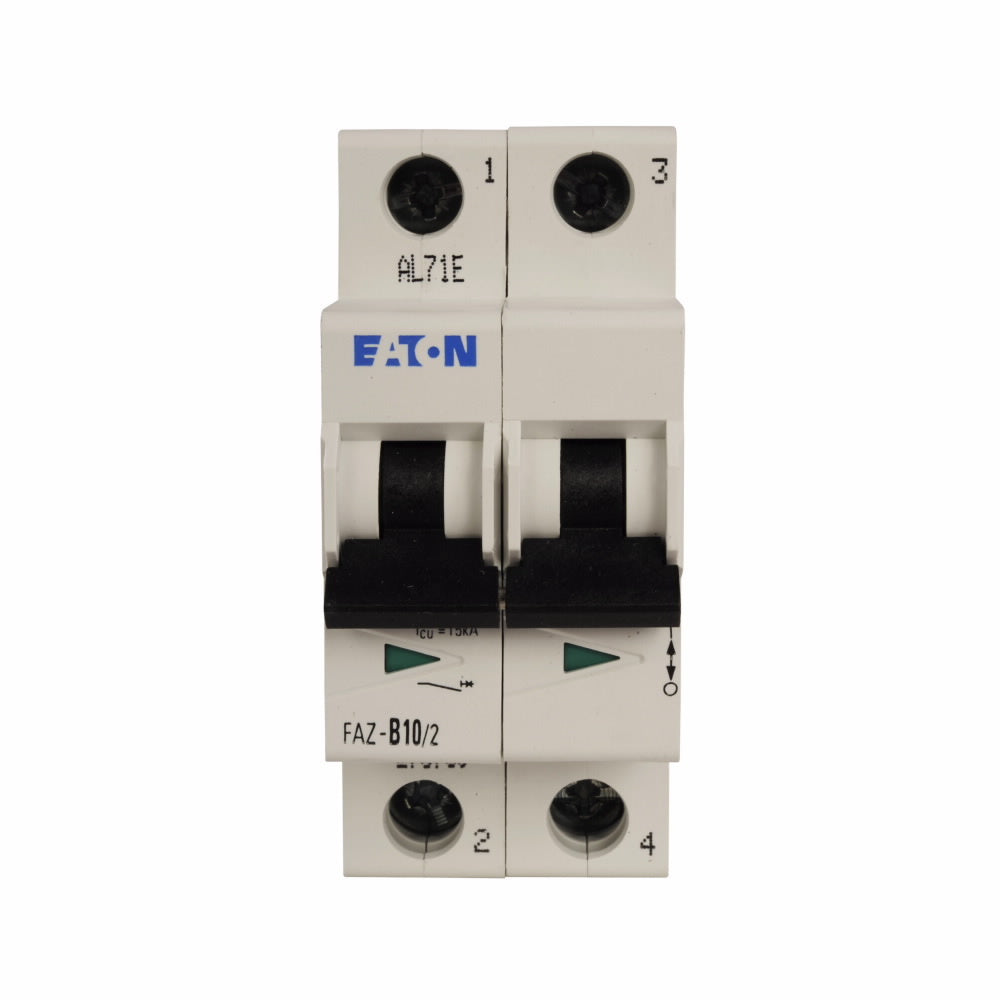

Eaton FAZ-B10/2-NA Miniature Circuit Breaker 10 Amp 2 Pole 277/480V

Product Description

Eaton offers the FAZ-B10/2-NA Miniature Circuit Breaker designed for reliable protection in various applications. This unit features a dual rating suitable for both UL and IEC standards. The current-limiting design ensures quick interruption of short circuits, effectively reducing peak let-through current. This breaker supports both personnel and equipment safety.

• Current-limiting design for quick short-circuit interruption
• Rated for 10 Amps and operates at 277/480 Volts
• Two poles with a thermal magnetic trip mechanism

Product Highlights

The Eaton FAZ-B10/2-NA is ideal for applications in branch circuits, offering dependable protection for installations.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: FAZ-B10/2-NA

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 277/480 V
• Number of Poles: 2
• Frequency Rating: 50-60 Hz
• Interrupt Rating: 14 kAIC
• Trip Type: 3-5X/B-Curve Thermal Magnetic
• Dimensions: 4-1/4 x 3 x 1-1/2 inches
• Weight: 0.68 lbs
