Eaton FAK-R-V-KC11-IY ETN FAK-R-V-KC11-IY RD P-RELEAS PAL

Product Description

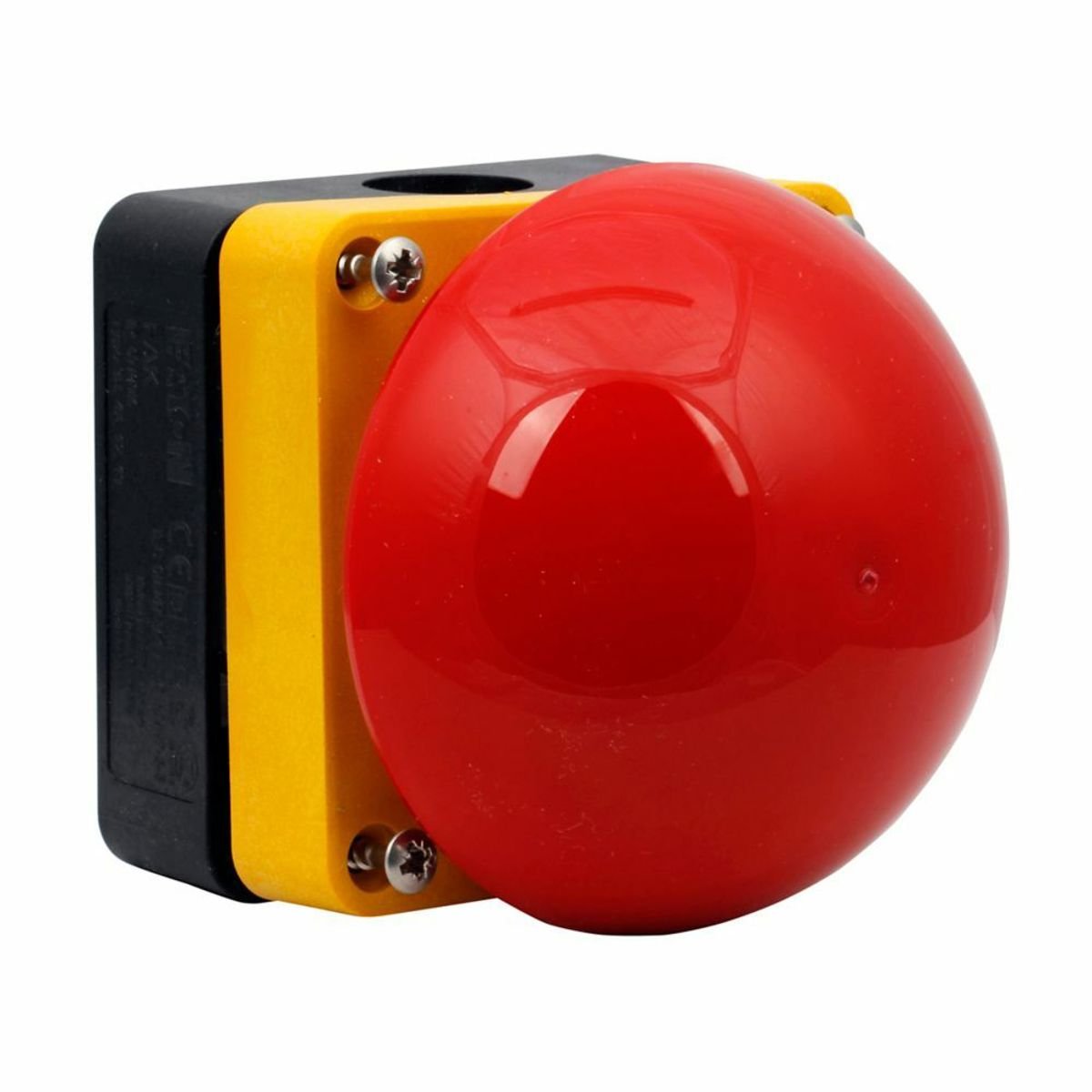

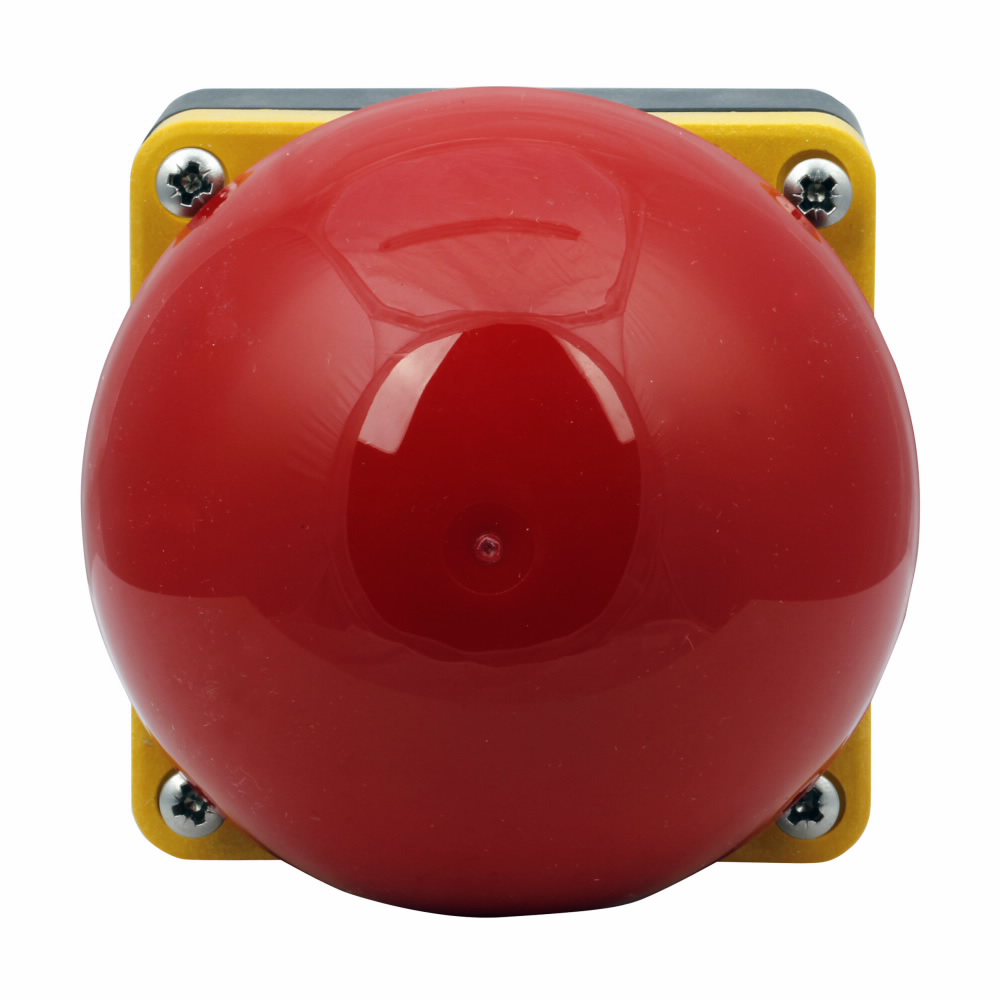

The Eaton FAK-R-V-KC11-IY is a palm switch designed for industrial applications. This 22.5 mm switch features a red mushroom head button and a maintained action. It offers a contact configuration of one normally open and one normally closed circuit. The product is rated IP67 and IP69K for water and dust resistance and meets NEMA 4X standards, making it suitable for harsh environments.

• 22.5 mm size for easy installation
• Suitable for a variety of electrical assemblies and control panels
• 100,000 operating cycles for long-term use

Product Highlights

This palm switch is built for reliability in electrical assemblies and control systems.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: FAK-R-V-KC11-IY
• Size: 22.5 mm
• Actuator: Mushroom head
• Operating Cycles: 100,000
• Contact Configuration: 1 NO-1 NC
• Enclosure Material: Stainless Steel
• Country of Origin: China
• Standard: CCC Marked, CSA Certified, CE Marked
