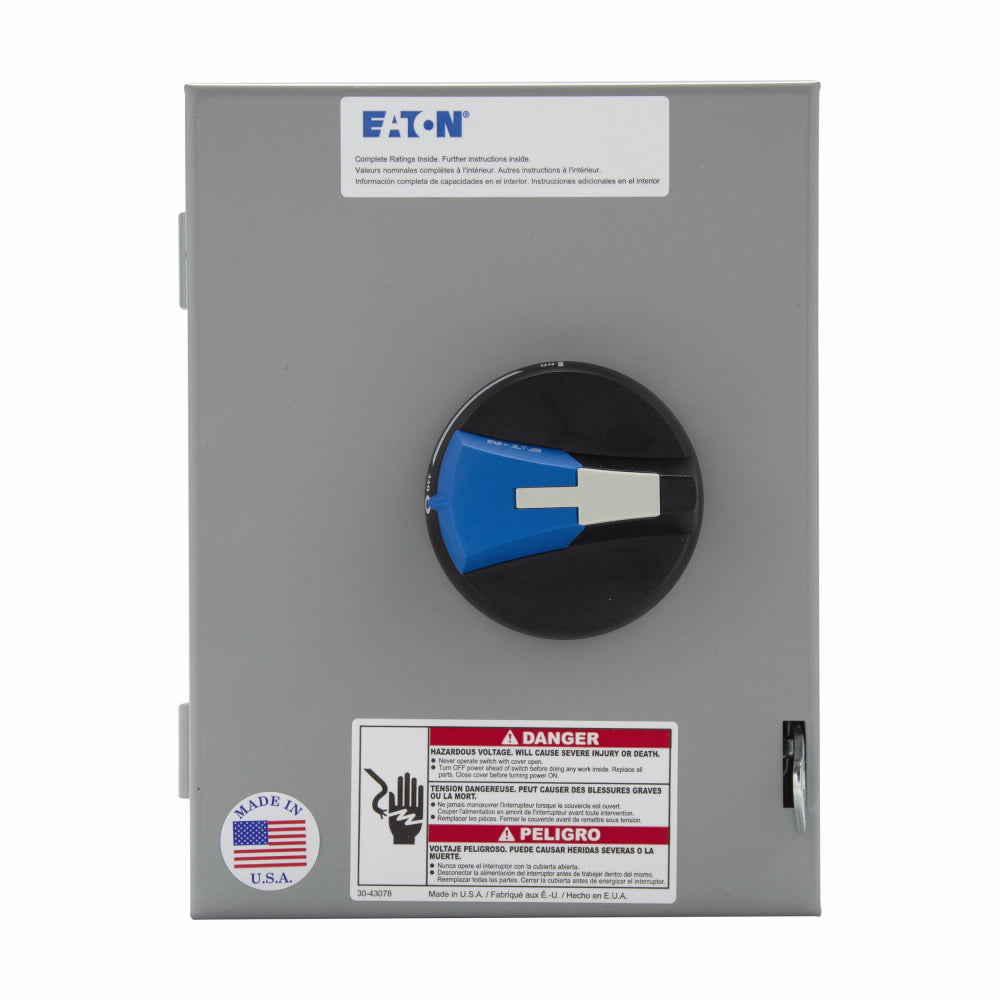

Eaton ER53080UD Enclosed Rotary Disconnect Switch 80A NEMA 12/3R

Product Description

The Eaton ER53080UD is an enclosed rotary disconnect switch rated for 80 amps and designed for NEMA 12/3R applications. This switch is made from painted galvanized steel, making it suitable for a variety of industrial settings. The three-pole configuration allows for efficient power distribution and control.

• UL Listed for motor disconnect applications.
• Ideal for industrial facilities and factories needing safe control.
• Dimensions: 15.4 inches in length, 10 inches in width, 8.4 inches in height.

Product Highlights

This device provides reliable isolation of electrical loads and adheres to safety standards for lockout/tag-out compliance.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: ER53080UD

Technical Specifications

• Amperage Rating: 80 A
• Voltage Rating: 600 VAC
• Horsepower: 15, 20, 40 hp
• Enclosure Type: NEMA 3R/12
• Material: Painted Galvanized Steel
• Number of Poles: 3
• Actuator Type: Rotary Handle
• Application: Power Distribution and Control
