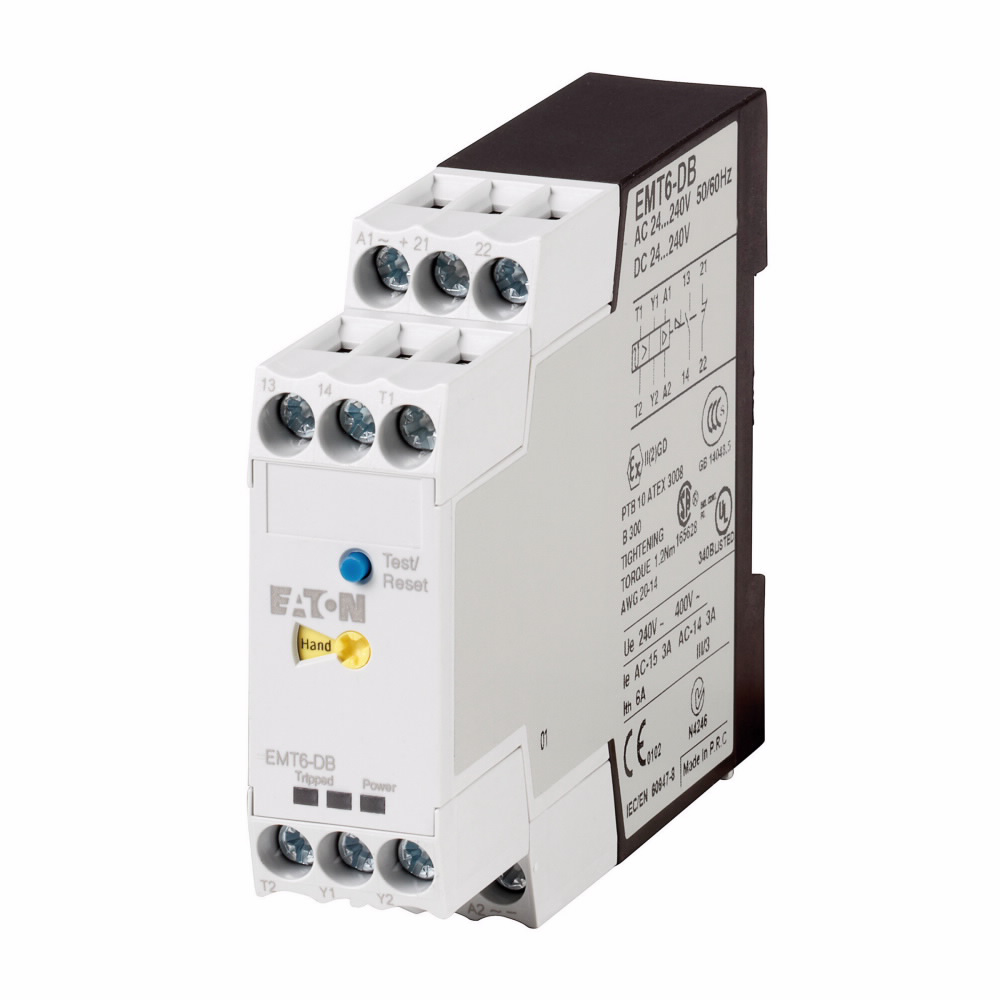

Eaton EMT6-DB Thermistor Overload Relay 24-240 Vac/dc 6A 600V

Product Description

The Eaton EMT6-DB is a thermistor overload relay designed for comprehensive machine protection. This unit operates on a voltage range of 24 to 240 Volts AC/DC and supports a maximum motor voltage of 600 Volts. With a current rating of six Amps, it features an IP20 rating suitable for various environments. The relay can be operated manually or remotely, providing flexibility in different applications. It includes a test button and a fault LED display for easy monitoring.

• Operating voltage: 24 to 240 Vac/dc.
• Test button and fault LED display for easy diagnostics.
• Rated for six Amps with maximum motor voltage of 600 Volts.

Product Highlights

This relay is ideal for machine builders and facility maintenance managers, aiding in the proactive protection of machines from thermal overload.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: EMT6-DB

Technical Specifications

• Catalog Number: EMT6-DB
• Control Voltage Rating: 24-240 Vac/dc
• Max Voltage: 600 V
• Current Rating: 6 A
• IP Rating: IP20
• Frequency Rating: 50-60 Hz
• Weight: 0.33 lb
• Dimensions: 4.02 x 0.89 x 3.08 inches
