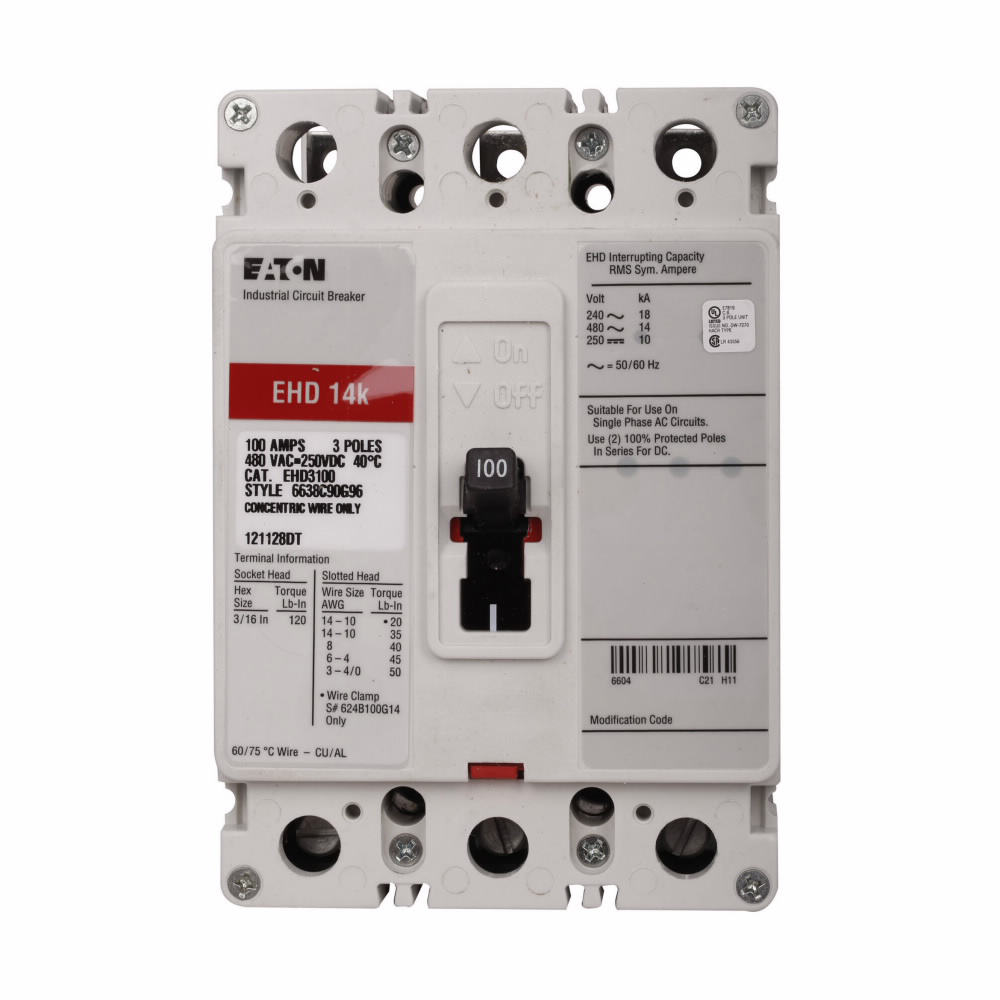

Eaton EHD3100 Molded Case Circuit Breaker 100A 3 Poles

Product Description

Eaton EHD3100 is a molded case circuit breaker with three poles and a current rating of one hundred amps. This fixed thermal and magnetic trip circuit breaker is part of the Eaton Series C line and is suitable for use in panelboards, switchboards, and motor control centers.

• Current rating: 100 amps
• Three-pole design
• Fixed thermal and magnetic trip types

Product Highlights

This circuit breaker is UL listed and is used for branch circuit protection in electrical assemblies. It can handle voltages of up to four hundred eighty volts AC or two hundred fifty volts DC.

Product Information

Standard Information

• Catalog Number: EHD3100
• Manufacturer: Eaton

Technical Specifications

• Type: Molded case circuit breaker
• Frame: F
• Width: 4.13 inches
• Height: 6 inches
• Length: 3.38 inches
• Weight: 4.5 lbs
• Frequency: 50/60 Hz
• Interrupt Rating: 14 kAIC at 480 Vac | 18 kAIC at 240 Vac
• Number of Poles: 3
