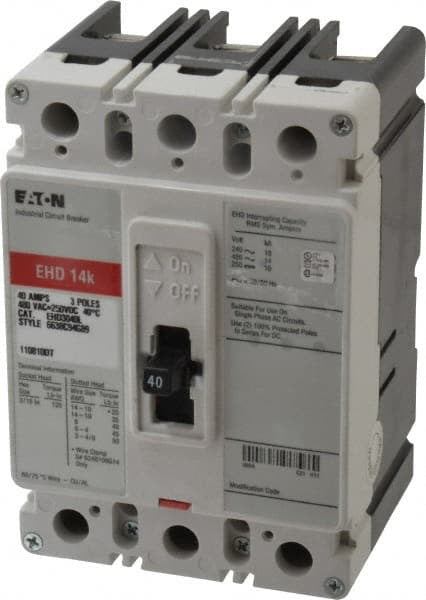

Eaton EHD3040L Series C F Frame Molded Case Circuit Breaker 40 Amp

Product Description

The Eaton EHD3040L Series C complete molded case circuit breaker features an F-frame, fixed thermal, and fixed magnetic trip type. This three-pole breaker operates at 40A with an interrupt rating of 14 kAIC at 480 Vac and 18 kAIC at 240 Vac, suitable for line and load applications at 50/60 Hz.

• Fixed thermal, fixed magnetic trip type
• Interrupt rating of 14 kAIC at 480 Vac and 18 kAIC at 240 Vac
• Suitable for electrical assemblies, panels & EOEM

Product Highlights

The Eaton EHD3040L is a reliable molded case circuit breaker designed for robust performance in various electrical applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EHD3040L
• Country of Origin: India

Technical Specifications

• Amperage: 40 Amp
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
• Current: 40 Amp
• Frame: F
• Frequency: 50 Hz
• Interrupt Rating: 14 kAIC
• Number of Poles: 3 Pole
• Standard: UL
• Terminal Type: Line And Load
• Trip Type: Fixed Thermal/Fixed Magnetic
• Type: Molded Case Circuit Breaker
• Brand: Eaton
• Sub Brand: None
• Voltage: 480 V
• Application: Industrial
• Circuit Breaker Type: Molded Case Circuit Breaker
• Tripping Mechanism: Thermal-Magnetic
• Terminal Connection Type: Screw
• Maximum Amperage: 40 A
