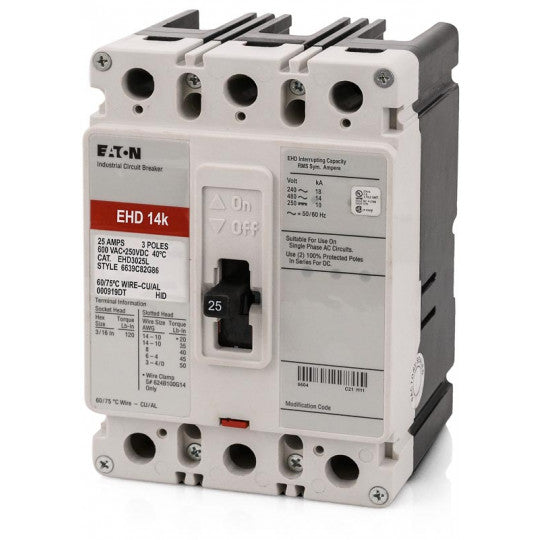

Eaton EHD3025L Electrical 25 Amp 3-Pole Type EHD Breaker

Product Description

The EATON EHD3025L is a series C complete molded case circuit breaker with a F-frame, fixed thermal, and fixed magnetic trip type. This three-pole breaker supports 25A and has interrupt ratings of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac. It is designed for line and load applications and operates at 50/60 Hz.

• Fixed thermal/fixed magnetic trip type
• Interrupt rating: 18 kA at 240 VAC, 14 kA at 480 VAC
• Suitable for reverse feed applications

Product Highlights

The EATON EHD3025L circuit breaker provides dependable branch circuit protection in panelboard, switchboard, motor control center, and busway applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EHD3025L

Technical Specifications

• Type: Molded Case Circuit Breaker
• Brand: Eaton
• Frame: F-frame
• Width: 4.13 in
• Height: 6 Inch
• Length: 3.38 Inch
• Current: 25 Amp
• Amperage: 25 A
• Standard: UL
• Frequency: 50/60 Hz
• Sub Brand: None
• Trip Type: Fixed Thermal/Fixed Magnetic
• Product UPC: 78667931723
• 12-Digit UPC: 786679317235
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
• Terminal Type: Line And Load
• Number of Poles: 3
• Interrupt Rating: 14 kAIC at 480 VAC/18 kAIC at 240 VAC
• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD3025L
• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 4.13 in
• Product Weight: 4.5 lb
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Circuit breaker type: EHD
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Terminals: Line and load
• Frequency rating: 50/60 Hz
• Part Number: EHD3025L
• Manufacturer: Eaton Cutler-Hammer
• Family: Series C
• Pole: 3
• Volt: 480
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Feed-Thru
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 14kA@480V
• Dimensions (HxWxD): 6" x 4.13" x 3.38"
• Actuator Type: Handle
• Enclosure Type: NEMA AB1-1993
• Mounting Type: Panel
• Temperature Rating: 40 deg C
• Wire Size: 14 to 1/0 AWG
• Voltage Rating: 480 VAC/250 VDC
• UNSPSC: 39121616
• Application: Panelboard, Switchboard, Motor Control Center and Busway Applications, Electrical Assemblies and OEMs
• Rating: 25A
