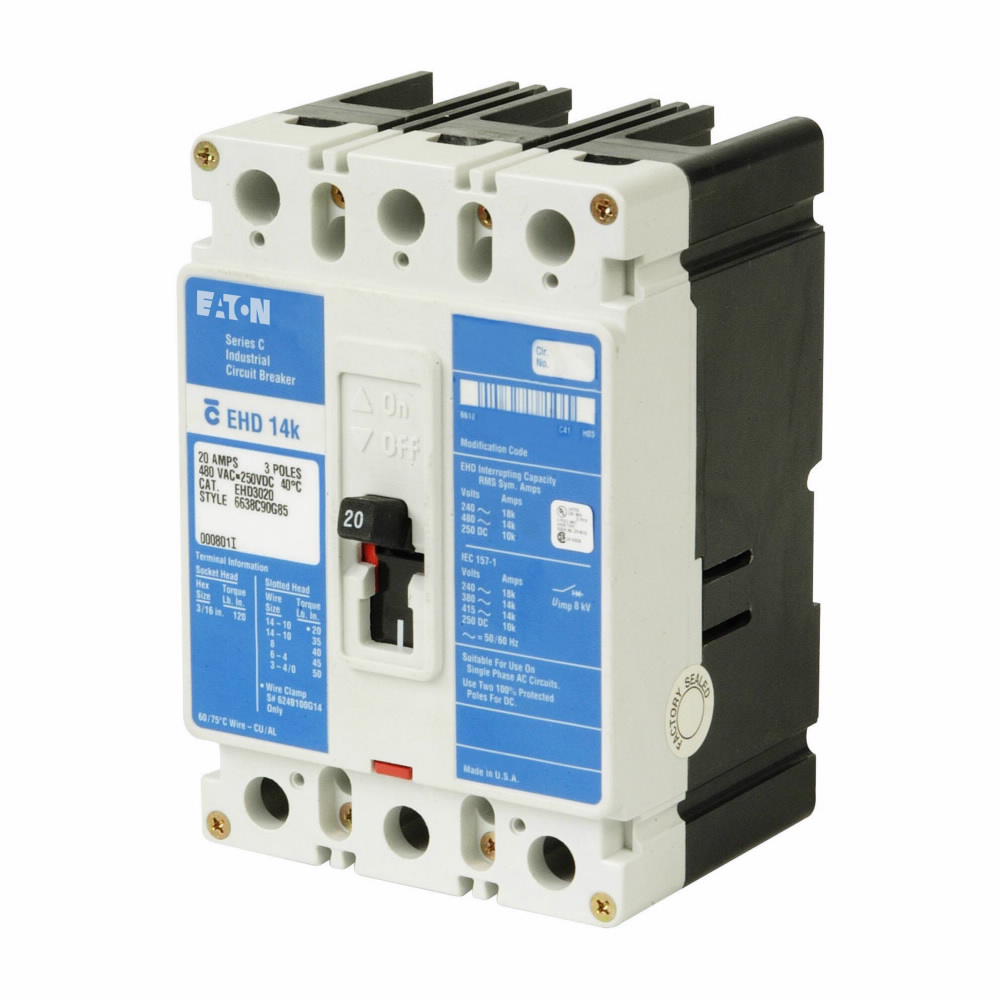

Eaton EHD3020 Molded Case Circuit Breaker F Frame 20 A

Product Description

The Eaton EHD3020 is a Series C molded case circuit breaker designed for effective protection in various electrical applications. This device has a fixed thermal and fixed magnetic trip type. It features three poles and is rated for twenty amperes. The EHD3020 is suitable for use in panelboards, switchboards, motor control centers, and busway applications. It operates at a frequency of fifty to sixty Hertz.

• Molded case circuit breaker with three poles
• Fixed thermal and magnetic trip types
• Application suitable for electrical assemblies and OEMs

Product Highlights

The Eaton Series C design ensures reliable performance and meets industry standards for safety and efficiency.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: EHD3020
• Frame: F
• Amperage Rating: 20 A
• Voltage Rating: 480 VAC / 250 VDC
• Frequency: 50/60 Hz
• Number of Poles: 3
• Dimensions: 3.38 x 4.13 x 6 inches
• Weight: 4.15 lb
• Interrupt Rating: 18 kAIC at 240 VAC | 14 kAIC at 480 VAC
