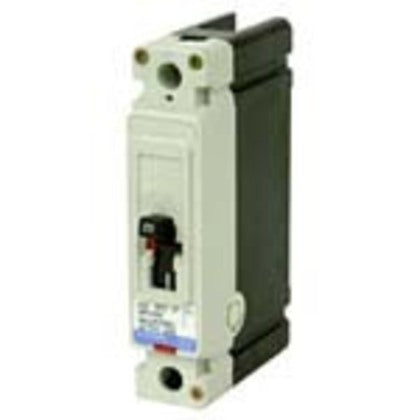

Eaton EHD1015L Series C Molded Case Circuit Breaker 15A

Product Description

The Eaton EHD1015L Series C complete molded case circuit breaker is an F-frame, EHD, complete breaker with a fixed thermal, fixed magnetic trip type. This single-pole breaker is rated at 15A, with an interrupt rating of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, and operates at 50/60 Hz. It is designed for line and load applications.

• Complete molded case circuit breaker
• Fixed thermal, fixed magnetic trip type
• Line and load terminals

Product Highlights

The Eaton EHD1015L circuit breaker provides dependable branch circuit protection for panelboard, switchboard, motor control center, and busway applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EHD1015L

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD1015L
• UPC: 786679156605
• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 1.38 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 15 A
• Trip Type: T186
• Circuit breaker type: EHD
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Terminals: Line and load
• Frame: F
• Frequency rating: 50/60 Hz
• Interrupt rating: 14 kAIC at 480 Vac 18 kAIC at 240 Vac
• Number of poles: Single-pole
• Manufacturer: Eaton Cutler-Hammer
• Pole: 1
• Volt: 277
• Phase: 1
• Category: Molded Case
• Connection: Feed-Thru
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 14kA@480V
• Frame Type: F Frame
• Reference No.: EHD1015L
• Product Category: MCCB
• MCCB: MCCB
• No of Pole: 1P
• Rating: 15A
• Mounting: Panel
• Volts AC: 277
• Volts DC: 125
• Poles: 1
• Amps: 15
• Interrupt Rating AC: 14 kA
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: EHD1015L
• Brand: Eaton - Cutler Hammer
• Current Rating: 15 A
• Terminal Type: Line and load
• Type: Thermal/Magnetic
• Unit of Measure: EA
