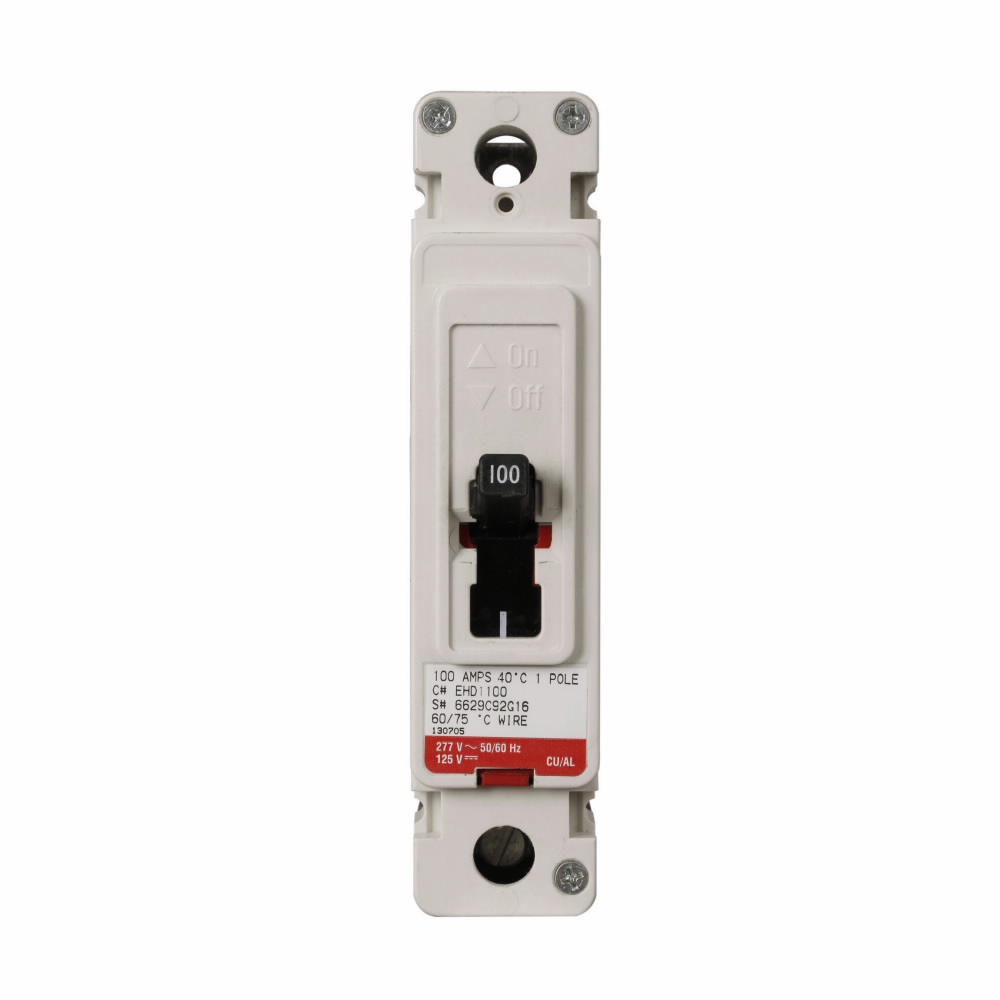

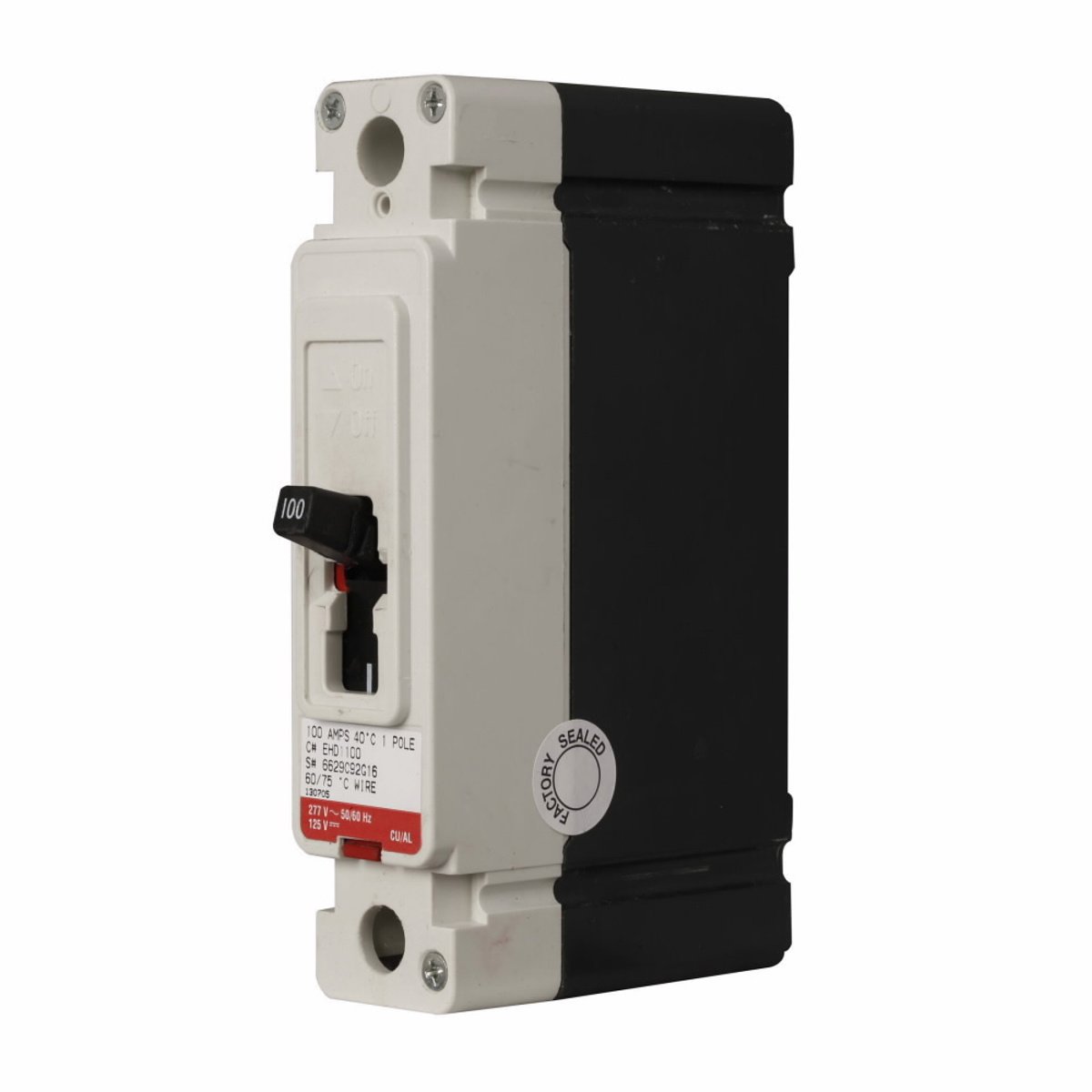

Eaton EHD1015 Molded Case Circuit Breaker 15 A - Replacement MPN

Product Description

The Eaton EHD1015 is a molded case circuit breaker designed for reliable circuit protection. It operates at 15 Amps and is suitable for voltages of 277 VAC and 125 VDC. This single-pole breaker features fixed thermal and fixed magnetic trip types, making it suitable for various applications, including panelboards and motor control centers.

• 15 Amp rating
• Fixed thermal and magnetic trip types
• Ideal for panelboards and busway applications

Product Highlights

This circuit breaker is part of the Eaton Series C offering superior durability and performance. Its compact design accommodates various installation requirements while ensuring comprehensive circuit protection.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: EHD1015

Technical Specifications

• Frame Size: F
• Current Rating: 15 A
• Amperage: 15 A
• Frequency: 50/60 Hz
• Poles: 1
• Interrupt Rating: 18 kAIC at 240 VAC, 14 kAIC at 480 VAC
• Dimensions: 3.38 x 1.38 x 6 inches
• Weight: 1.45 lb
