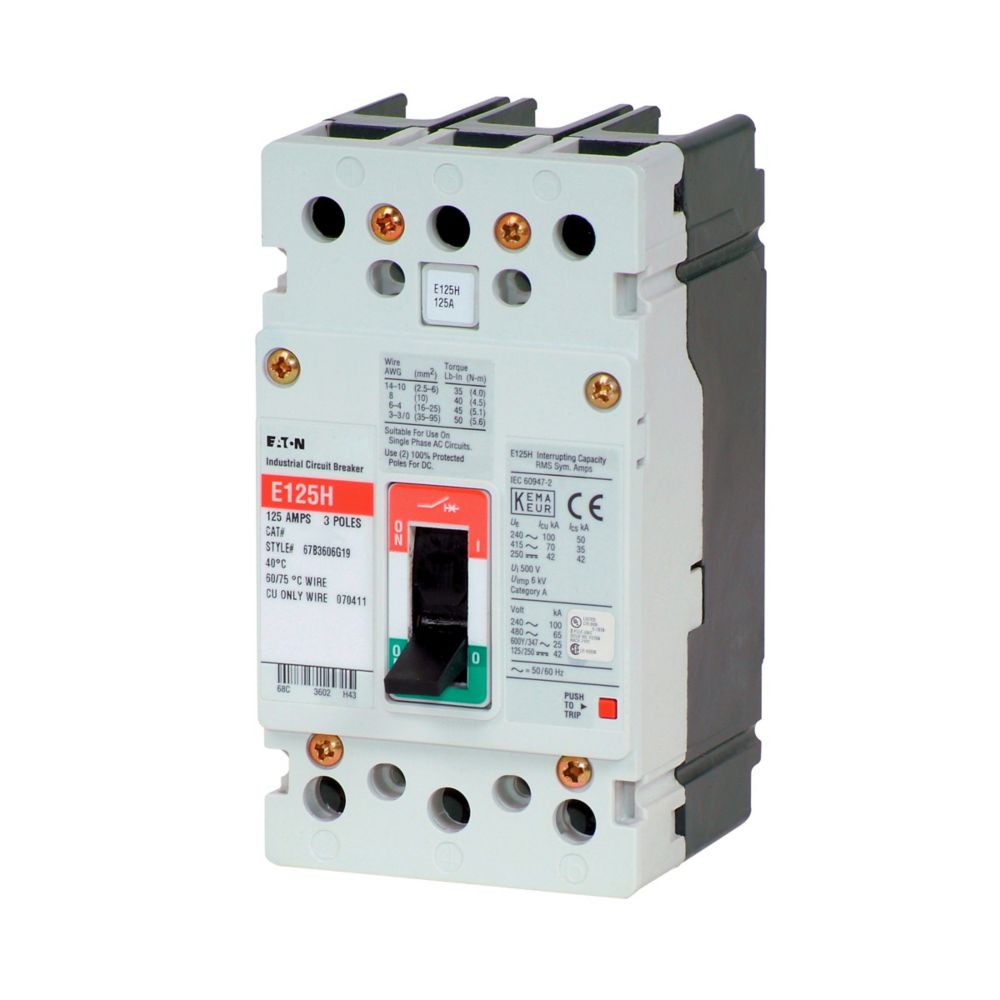

Eaton EGH3020FFB Series G Complete Molded Case Circuit Breaker 20 A

Product Description

The Eaton EGH3020FFB Series G molded case circuit breaker is an EG-frame, complete breaker with a fixed thermal, fixed magnetic trip. This three-pole, 20A circuit breaker is rated for 600Y/347 Vac and 50/60 Hz. It has interrupt ratings of 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, and 35 kAIC at 600Y/347 Vac and is bolt-on.

• Compact design frees up panel space.
• Common field fit internal accessories make installation and custom configuration easy.
• Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility.

Product Highlights

The Eaton Series G circuit breakers meet global standards and offer high performance in a compact design. They are suitable for panelboard, switchboard, motor control center, and busway applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EGH3020FFB

Technical Specifications

• Product Name: Eaton Series G complete molded case circuit breaker
• Catalog Number: EGH3020FFB
• UPC: 786685381831
• Product Length/Depth: 2.99 in
• Product Height: 5.5 in
• Product Width: 3 in
• Compliances: CE Marked
• Certifications: IEC Rated CSA Certified UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 20 A
• Voltage rating: 600Y/347 Vac
• Trip Type: Fixed Thermal/Fixed Magnetic
• Circuit breaker type: EG
• Circuit breaker frame type: Complete breaker
• Series: G Series
• Terminals: Bolt-on
• Frame: EG
• Frequency rating: 50/60 Hz
• Interrupt rating: 35 kAIC at 600Y/347 Vac 65 kAIC at 480 Vac 100 kAIC at 240 Vac
• Number of poles: Three-pole
• Type: Type EGH
• Manufacturer: Eaton
• Pole: 3
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Bolt-On
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 65kA@480V
• Application: Panelboard, Switchboard, Motor Control Center and Busway Applications
• Mounting Type: Bolted-On
• Enclosure Type: NEMA AB1-1993
• Connection Type: Line/Load
• Temperature Rating: 40
• Includes: Frame, Trip Unit, Standard Terminals and Mounting Hardware
• Dimensions: 2.99 in L x 3 in W x 5.5 in H
• UNSPSC Code: 39120000
• Current Rating: 20 A
• Terminal Type: Bolt-on
• Mounting: DIN Rail
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• UL Standard: 489
• Approvals: CE, CSA, IEC, UL
• Gross Weight: 2.9 lbs
• Net Weight: 2.9 lbs
