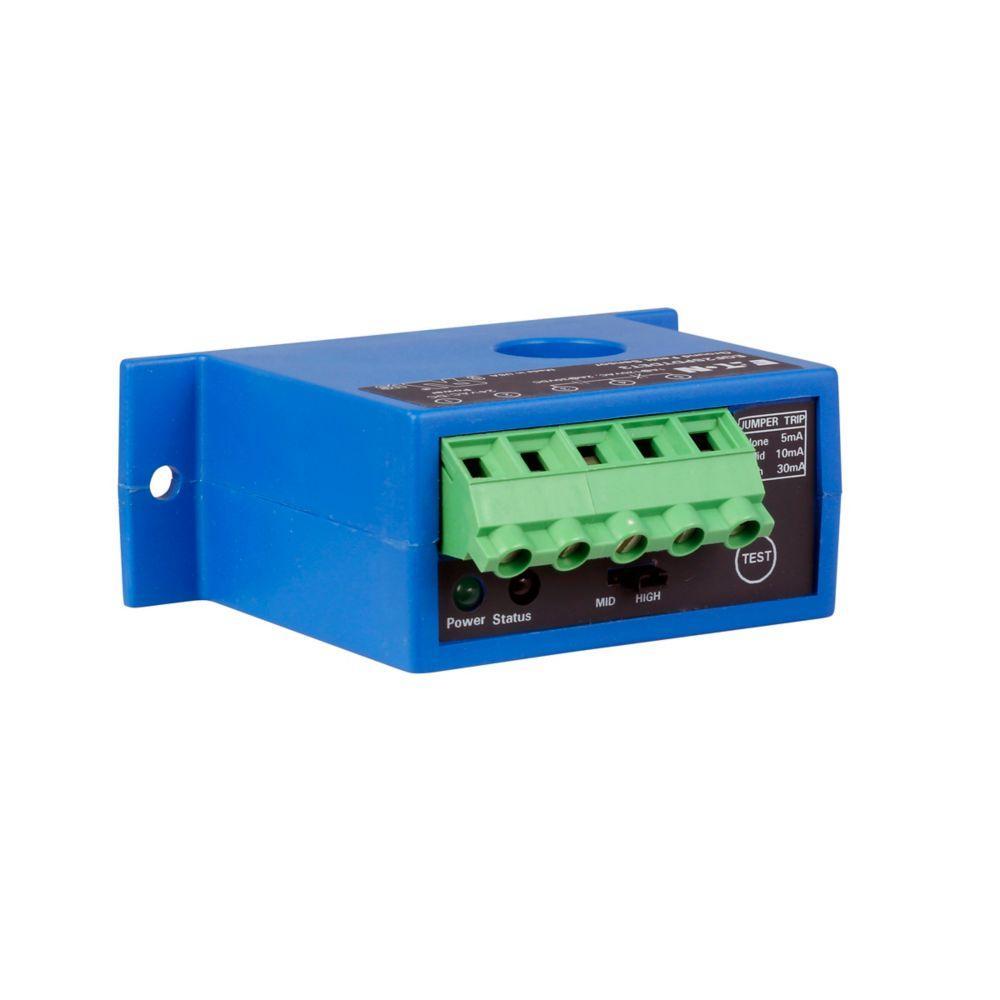

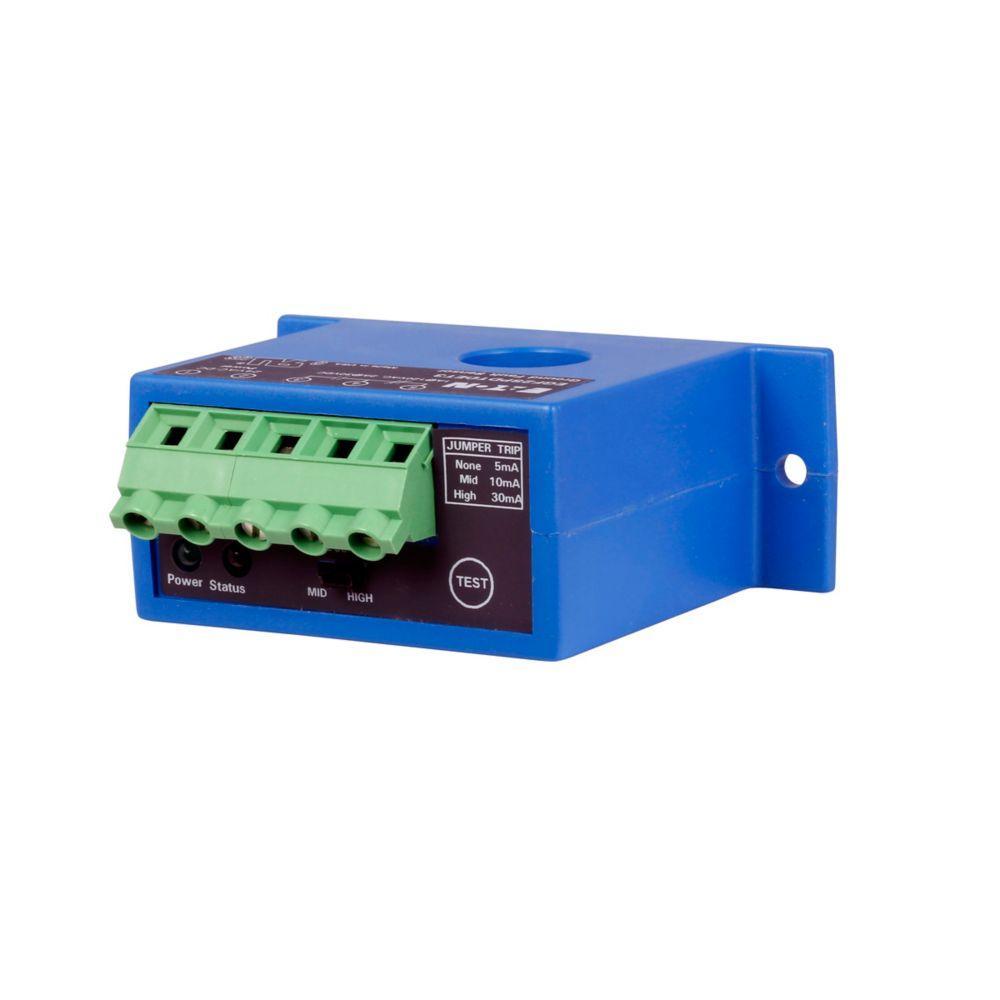

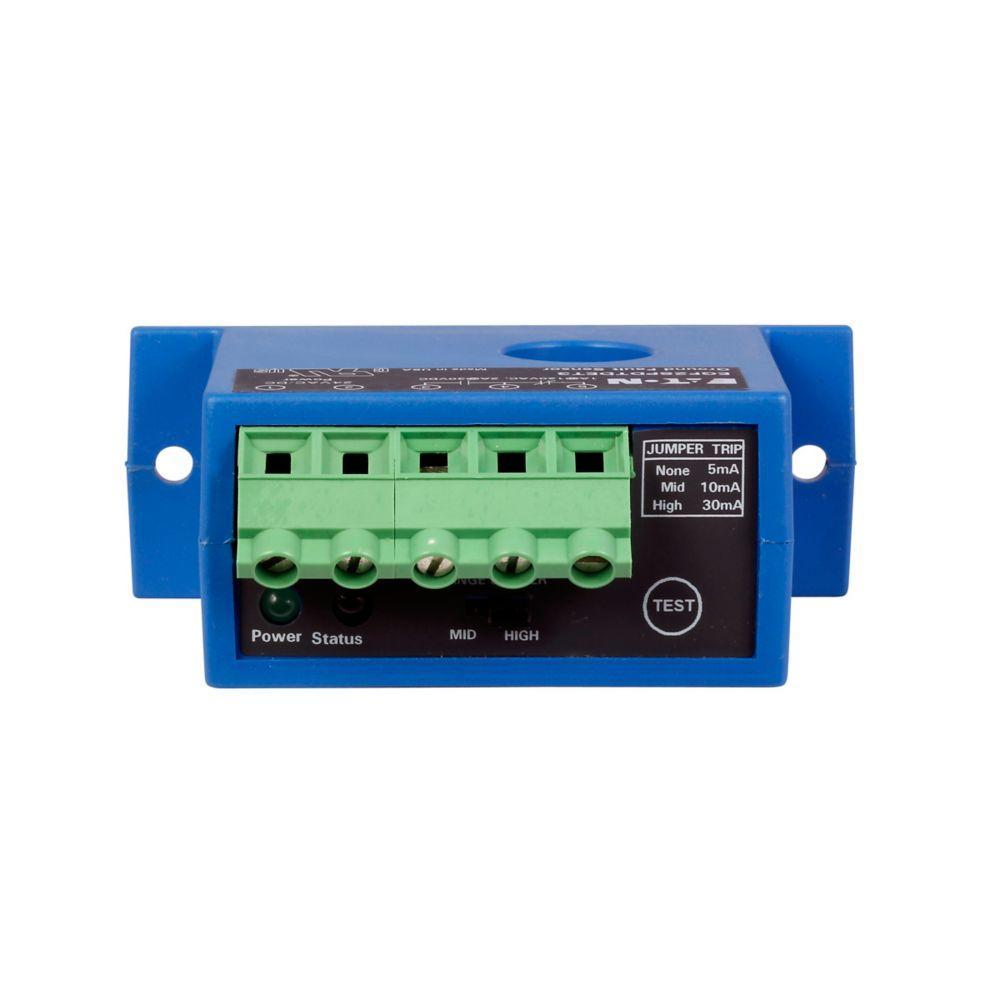

EATON EGF2SPDTDET3 CurrentWatch EGF Solid Core Housing Current Sensor 24 VAC/VDC

Product Description

The EATON EGF2SPDTDET3 is a current sensor from the CurrentWatch EGF series. It helps protect against ground fault conditions through monitoring all current-carrying conductors in both grounded one-phase and three-phase systems. This sensor is designed with solid-state outputs, ensuring a reliable operation due to its long-lasting solid-state switches.

It features mechanical relay outputs and is available in a solid core housing. The chosen relay types include normally open or normally closed SPST latching relays, providing versatile options for various applications.

• Response time of 15 to 200 milliseconds
• Compatible with 24 VAC/VDC power sources
• Designed for use in harsh environments with high shock and vibration resistance

Product Highlights

This sensor delivers unlimited switch operating life, providing high-speed switching operations, and minimal off-state leakage.

Product Information

Standard Information

• Brand: EATON
• Part Number: EGF2SPDTDET3 EC

Technical Specifications

• Amperage Rating: 2 A
• Connection Type: Screw Terminal
• Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity
• Frequency Rating: 50 to 400 Hz
• Operating Temperature: -4 to 122 degrees Fahrenheit
• Series: CurrentWatch EGF
• Size: 2.5 inches high x 3.88 inches wide
• Type: Solid Core Housing
• Response Time: 15 to 200 milliseconds
• Output Type: Mechanical Relay/SPDT
• Voltage Rating: 24 VAC/VDC
