Product Description

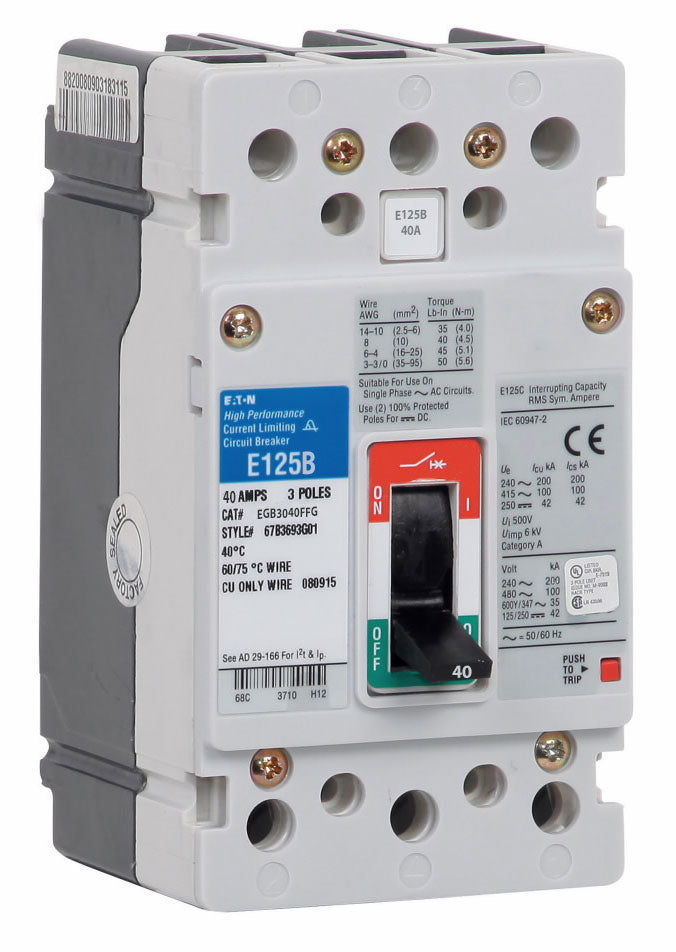

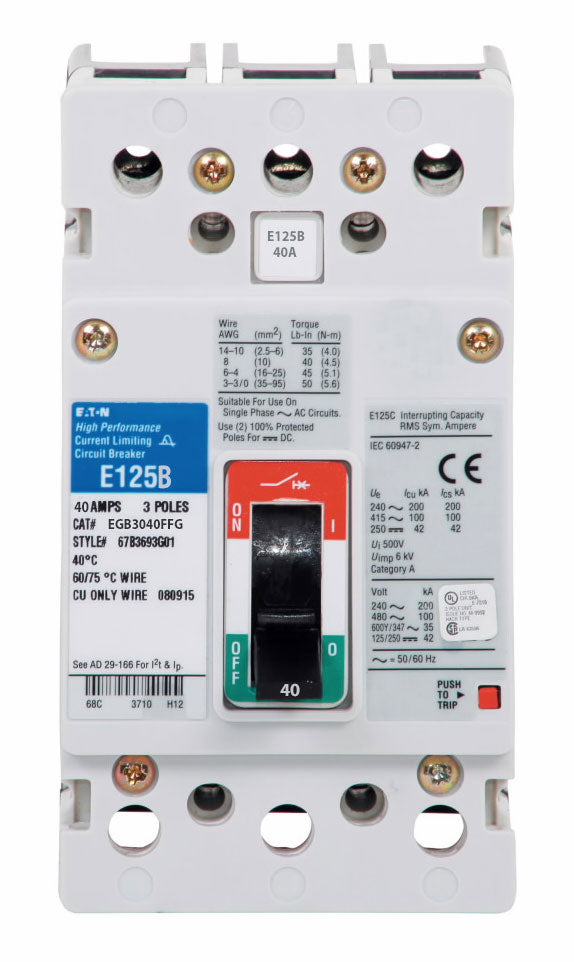

The EATON EGB3040FFG is a Series G molded case circuit breaker designed for reliable power distribution in commercial facilities. This three-pole, 40A circuit breaker operates at 600Y/347 Vac and has interrupt ratings of 25 kAIC at 240 Vac and 18 kAIC at 480 Vac. It features fixed thermal and fixed magnetic trip types and is suitable for line and load applications.
- Designed for flexible unit mounting
- Features a patented high-speed blow-open action
- Installs seamlessly into Series G enclosures, switchboards, and motor control centers
Product Highlights
Eaton's EGB3040FFG circuit breaker ensures dependable power distribution with a robust design and seamless integration into existing systems.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: EGB3040FFG
Technical Specifications
-
Product Name: Eaton Series G complete molded case circuit breaker
-
Catalog Number: EGB3040FFG
-
UPC: 782114876343
-
Product Length/Depth: 2.99 in
-
Product Height: 5.5 in
-
Product Width: 3 in
-
Compliances: CE Marked
-
Certifications: UL Listed IEC Rated CSA Certified
-
Product Type: Molded case circuit breaker
-
Amperage Rating: 40 A
-
Voltage rating: 600Y/347 Vac
-
Trip Type: T186
-
Circuit breaker type: EG
-
Circuit breaker frame type: Complete breaker
-
Series: Series G
-
Terminals: Line and load
-
Frame: EG
-
Frequency rating: 50/60 Hz
-
Interrupt rating: 18 kAIC at 480 Vac 25 kAIC at 240 Vac
-
Number of poles: Three-pole
-
Type: Complete breaker
-
Manufacturer: Eaton Cutler-Hammer
-
Pole: 3
-
Amp: 40
-
Volt: 480
-
Phase: 3
-
Category: Molded Case
-
Connection: Feed-Thru
-
Functions: LI - Long-Time and Instantaneous
-
Protection: Thermal Magnetic
-
AIC Ratings: 18kA@480V
-
Dimensions (HxWxD): 5.5" x 3" x 2.99"
-
Amperage: 40A
-
Voltage: 240VAC, 480VAC, 250VDC
-
Poles: 3
-
AIC Rating: 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC
-
Mounting Style: Unit Mount
-

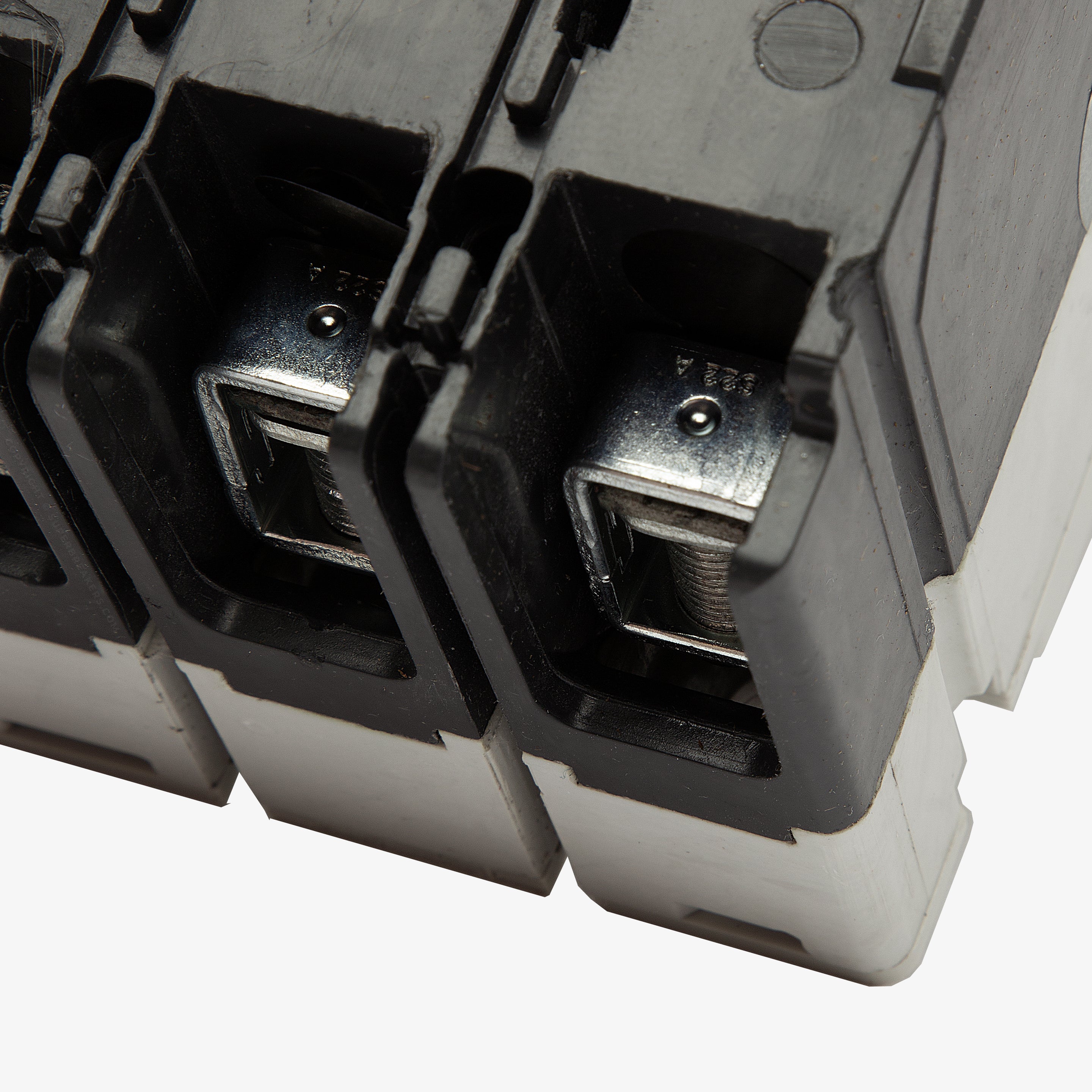

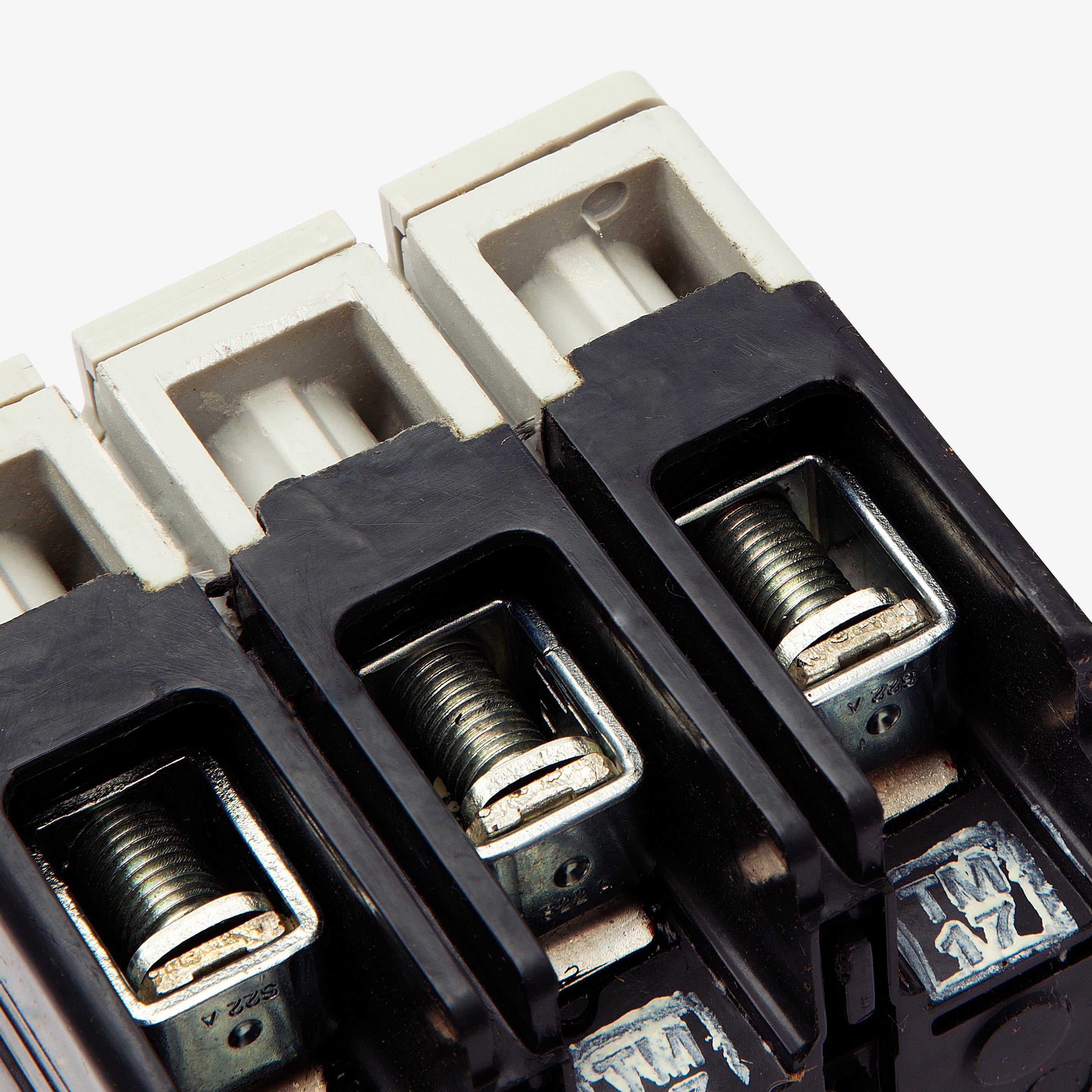

Terminal Type: Lugs
-
For Use With: Eaton Series G Enclosures, Switchboards, MCCs
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 14-1/0 AWG
-
Max Wire: 1/0 AWG
-
Min Wire: 14 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
-
Accessories: Line and Load Terminals
-
Standards: CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
-
Approval: CE, CSA, IEC, KEMA, UL
-
Temp Rating: 40C
-
Construction Features: Current Limiting, HACR Rated, Reverse Feed
