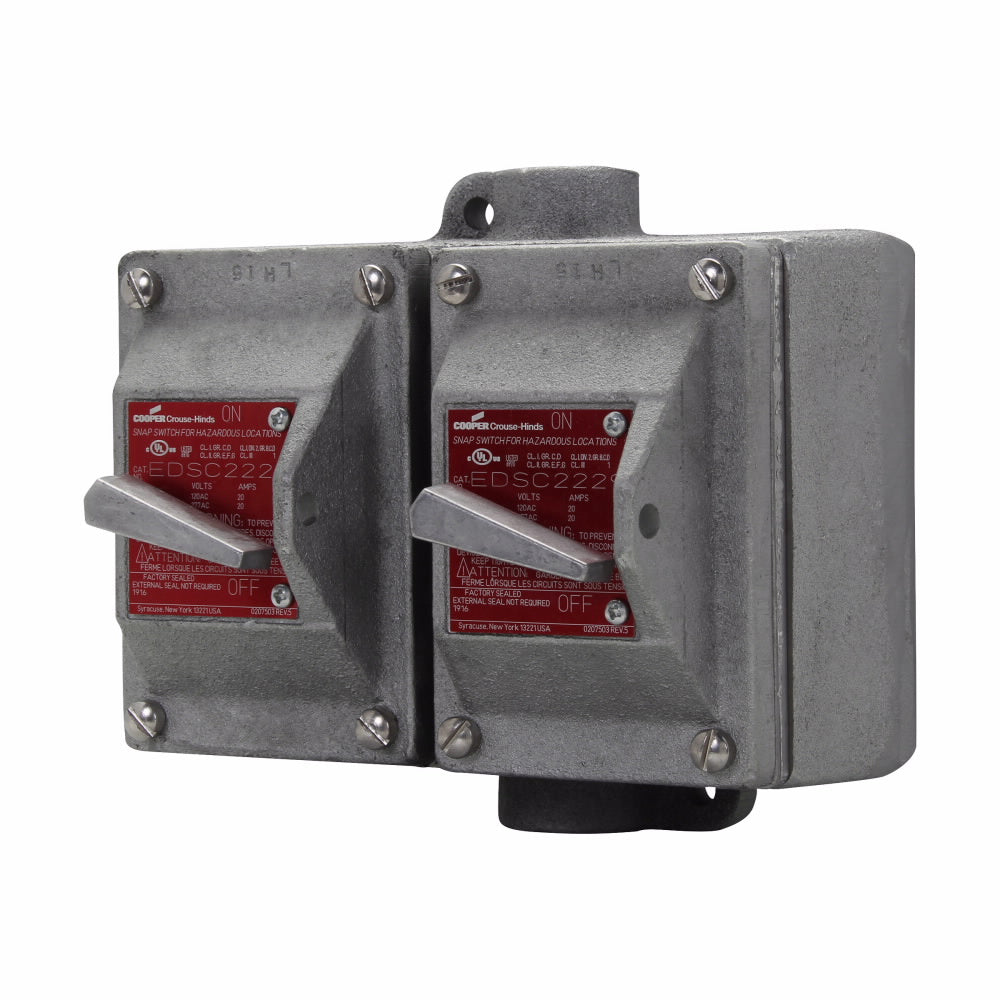

Eaton EDSC3229 EDSC3229 2G ENCL W/1P SW

Product Description

The Eaton EDSC3229 is a two-gang enclosure with a single-pole switch. This control station is designed for high durability and reliability. The construction includes feraloy iron alloy, providing robust strength. It operates at a voltage range of one hundred twenty to two hundred seventy-seven volts AC.

• Snap switch control station with twenty amperes rating
• Includes two one-inch hubs for easy installation
• Factory sealed for enhanced protection

Product Highlights

The EDSC3229 enclosure is well-suited for power distribution and control in industrial facilities.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Number Of Poles: 1
• Weight: 16.05 lbs
• Material: Feraloy
• Enclosure: Class I Div 1 2 Group C D; Class II Div 1 Group E F G; Class II Div 2 Group F G
• Dimensions: 5.0600 in X 7.1900 in X 5.8750 in
• Application: Ind Facilities -N- Factories - Facility: Power Distribution and Control
