Eaton Edison MDA-20-R Fuse Dly Time 20A 250VAC/125VDC Cyl

Product Description

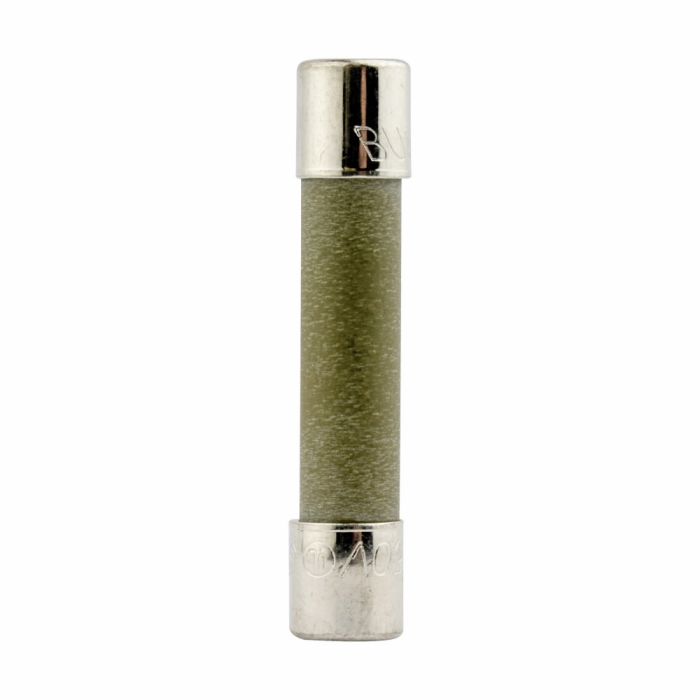

The EATON EDISON MDA-20-R is a small dimension time delay fuse with nickel-plated brass end caps. It has an amperage of 20 A and a voltage rating of 250 VAC/125 VDC, with a 1.5/10 kA interrupt rating and a cylindrical body. This fuse is suitable for various applications requiring time-delay functionality.

• Time Delay Fuse
• Small Dimension
• Nickel Plated Brass End Caps

Product Highlights

The MDA-20-R fuse offers reliable circuit protection with its time-delay feature and robust construction.

Product Information

Standard Information

• Brand: EATON EDISON
• Manufacturer Part Number: MDA-20-R

Technical Specifications

• Brand: EATON EDISON
• MPN: MDA-20-R
• Amperage: 20 A
• Voltage: 250 VAC/125 VDC
• Interrupt Rating: 1.5/10 kA
• Body Style: Cylindrical
• Series: MDA
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Terminal Type: Ferrule
• Mounting Type: Holder
• Element: Single
• Material: Ceramic
• Body Size: 1/4 in Dia x 1-1/4 in L
