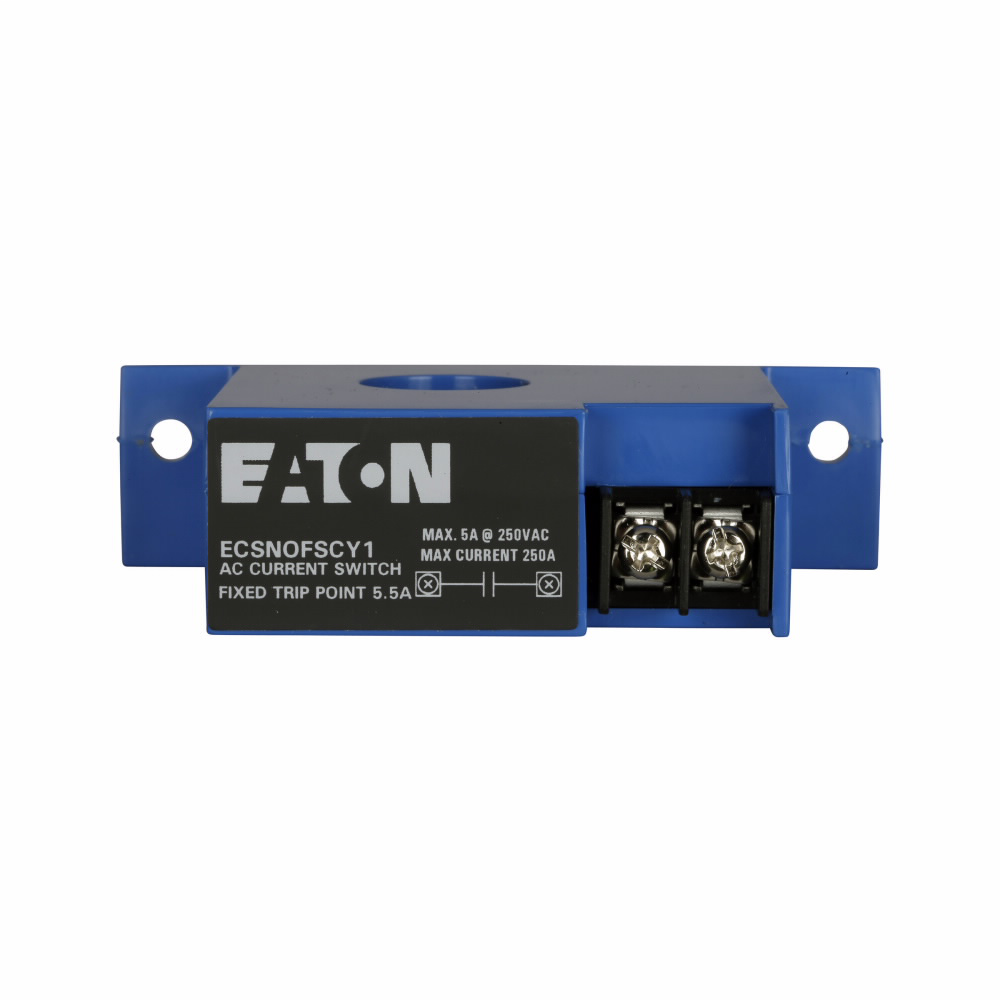

Eaton ECSNOFSCY1 CurrentWatch ECS Top Terminal Current Switch SSR Fixed 5.5A Setpoint 150A AC

Product Description

The Eaton ECSNOFSCY1 CurrentWatch ECS Top Terminal Current Switch is designed for reliable current detection in various applications. This switch has a fixed setpoint of five point five amperes and operates self-powered. It utilizes a solid-core housing made from durable plastic, which is UL94 V0 rated for flammability. The unit connects through screw-type terminals, making installation straightforward for electrical assemblies.

• Fixed setpoint of five point five amps
• Self-powered with a maximum current rating of one hundred fifty amps
• LED indicator available for operational status

Product Highlights

The ECSNOFSCY1 is effective for monitoring overcurrent conditions across a range of electrical systems. It is suitable for industrial use and can integrate into existing panels and assemblies.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer

Technical Specifications

• Catalog Number: ECSNOFSCY1
• UPC: 786685348735
• GTIN: 00786685348735
• Width: .93 inches
• Height: 2.18 inches
• Length: 3.5 inches
• Weight: .3 lb
• Connection Type: Screw-Type Terminals
• Operating Temperature: -58 to 122 degrees F
• Enclosure Material: Plastic
• Contact Configuration: SSR
• Application: Electrical Assemblies, Panels & EOEM
• Standards: RoHS Compliant
