Eaton ECSNOASC PWR SENSOR,CURR,SS,NO,

Product Description

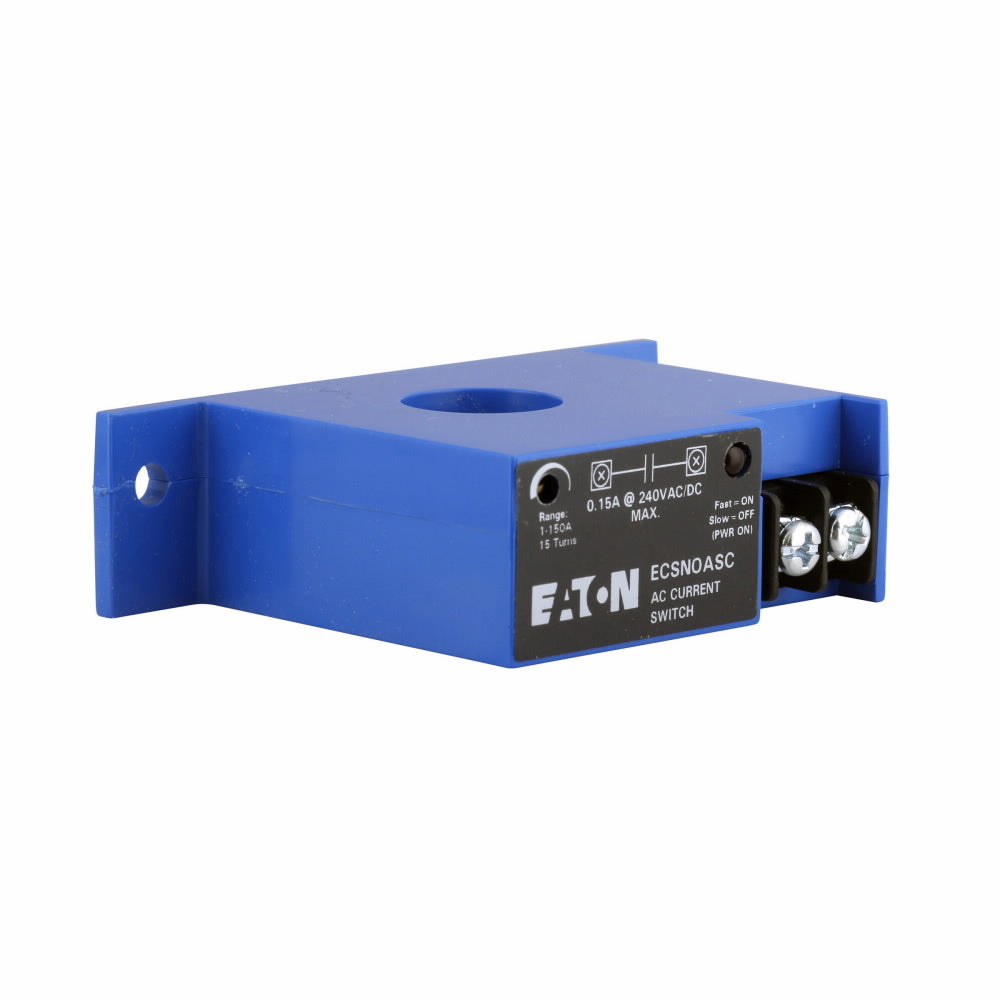

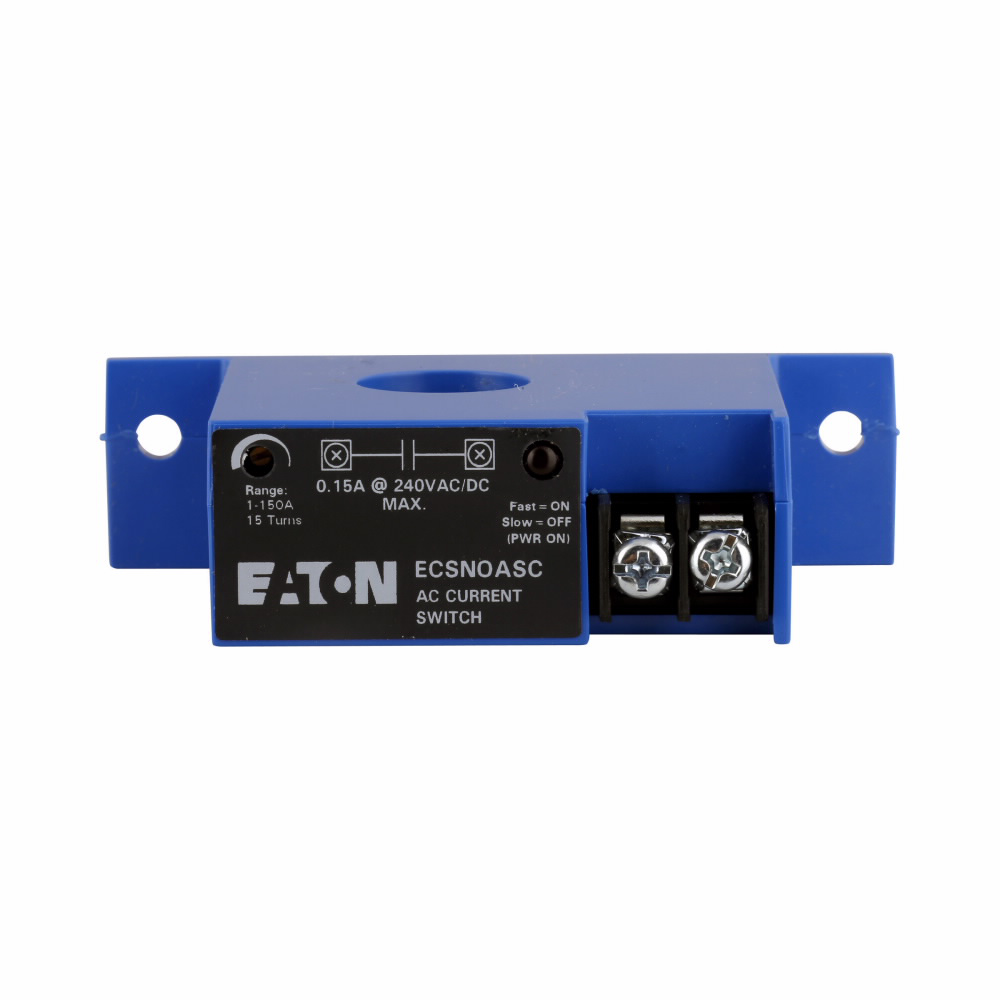

The Eaton CurrentWatch ECSNOASC is a top terminal current switch designed for effective current monitoring. This device is adjustable with a setpoint range from one to one hundred fifty amperes. The switch features a solid-core housing, screw-type terminals, and a built-in LED indicator for easy operational status visibility. It operates efficiently without the need for external power, drawing energy directly from the monitored circuit.

• Adjustable setpoint from one to one hundred fifty amperes
• LED indicator for operational status
• Solid-core housing design

Product Highlights

The ECSNOASC is reliable for detecting current flow in electrical assemblies and is ideal for both new installations and retrofits. The solid-state relay configuration allows for non-polarity sensitive switching, suitable for AC and DC circuits up to two hundred forty volts. Its rugged design ensures operation across a wide temperature range.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer

Technical Specifications

• Catalog Number: ECSNOASC
• Type: Top Terminal
• Amperage: 150 A
• Voltage Rating: 240 VAC/VDC
• Enclosure: Solid Core Housing
• Connection Type: Screw
• Dimensions: 3.5 in L x 0.93 in W x 2.18 in H
• Operating Temperature: -58 to 122 degrees F
• Environmental Conditions: 0 to 95% Relative Humidity
• Response Time: 120 ms
